Huawei SmartAX MA5608T User Manual

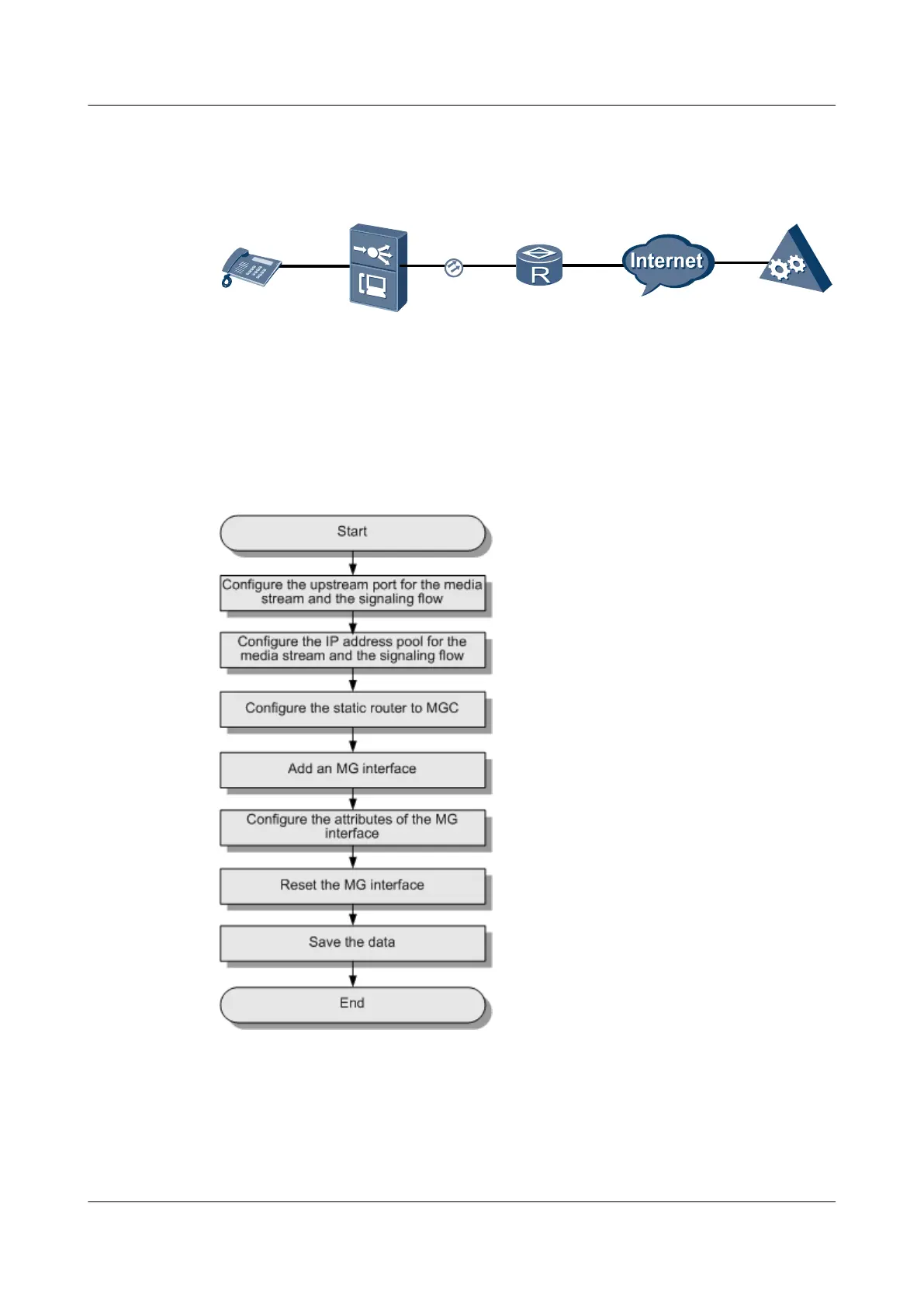

Figure 1-75 Example network for the commissioning the interconnection with the MG interface
(MGCP)
MGC
10.10.1.4/24
MGCP
Acdess node
10.50.1.10/24
VLAN:50
Router
10.50.1.1/24
Phone
Figure 1-76 shows the flowchart for commissioning the interconnection with the MG interface
(MGCP).
Figure 1-76 Flowchart for commissioning the interconnection with the MG interface (MGCP)
Prerequisites
l The data configuration on the MGC side (corresponding to the data configuration on the
MG side) must be correct.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
1 Commissioning
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
169

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
