NOTE
The following considers MDU 0 as an example for commissioning the management channel between
the OLT and the GPON MDU.
l After the management channel between the MA5600T/MA5603T/MA5608T and the
GPON MDU is set up, you can log in to the MDU using port 0/2/0 connected to the MDU
to remotely maintain and manage the MDU.
l The DBA profile is used to limit the user rate to the fixed 10 Mbit/s bandwidth.

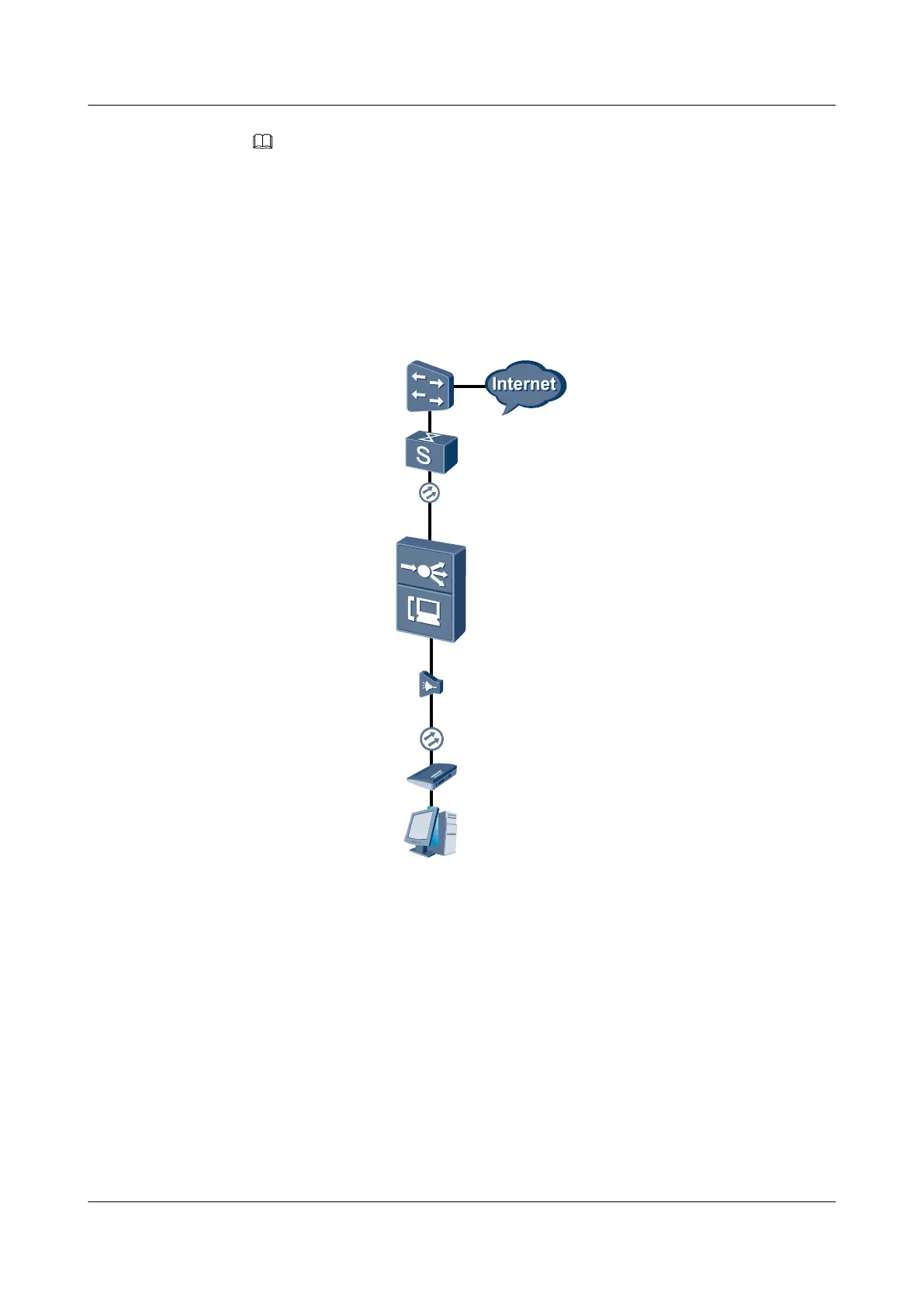

Figure 1-79 Example network for commissioning the management channel between the OLT
and the GPON MDU
MDU
PC
192.168.1.200/24
BRAS
LSW
VLAN: 20
192.168.1.100/24
Access node
Optical
splitter
Figure 1-80 shows the flowchart for commissioning the management channel between the OLT
and the GPON MDU.
