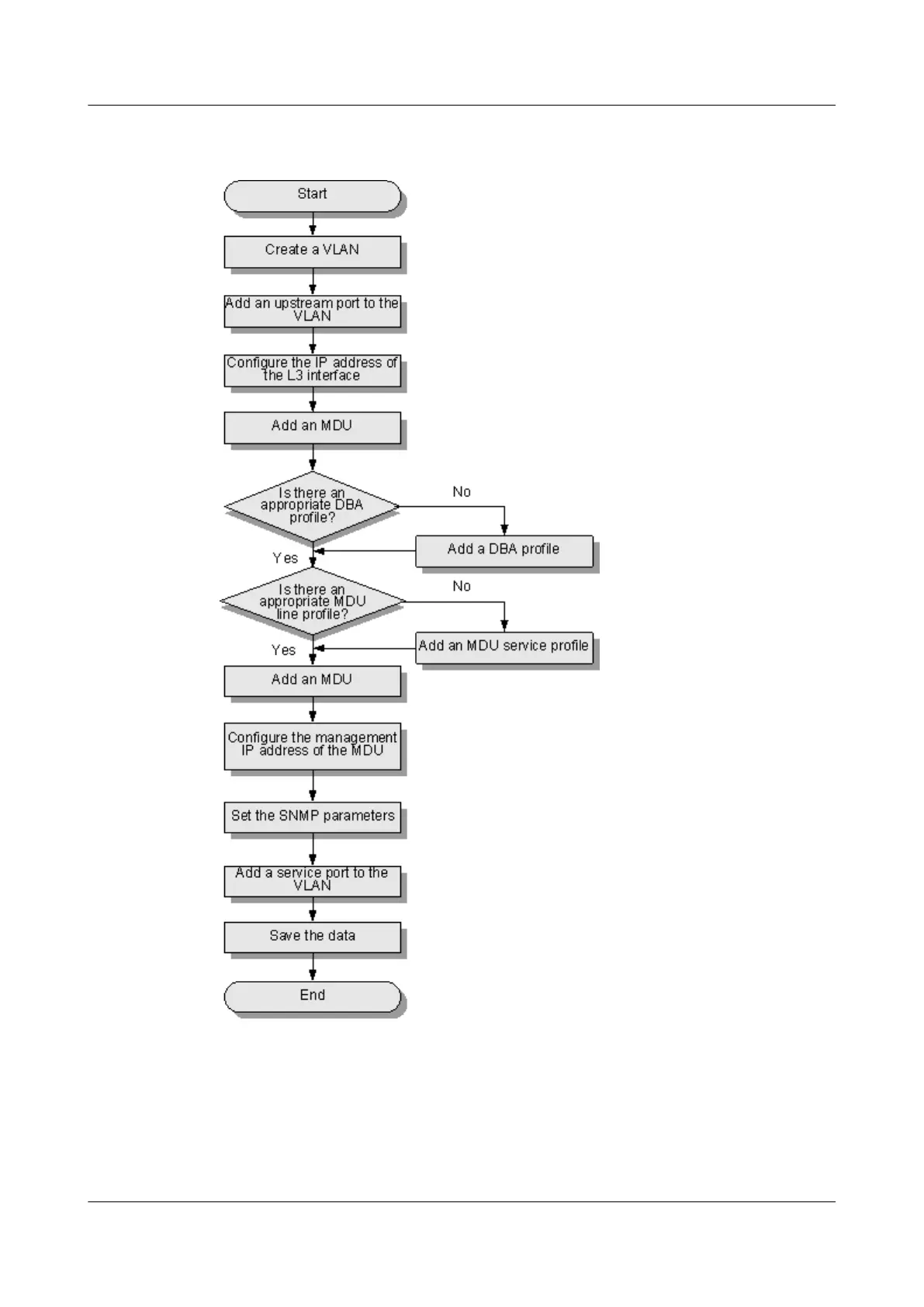

Figure 1-80 Flowchart for commissioning the management channel between the OLT and the
GPON MDU
Procedure
Step 1 Create a VLAN.
The VLAN ID is 20, and the VLAN type is smart VLAN.
