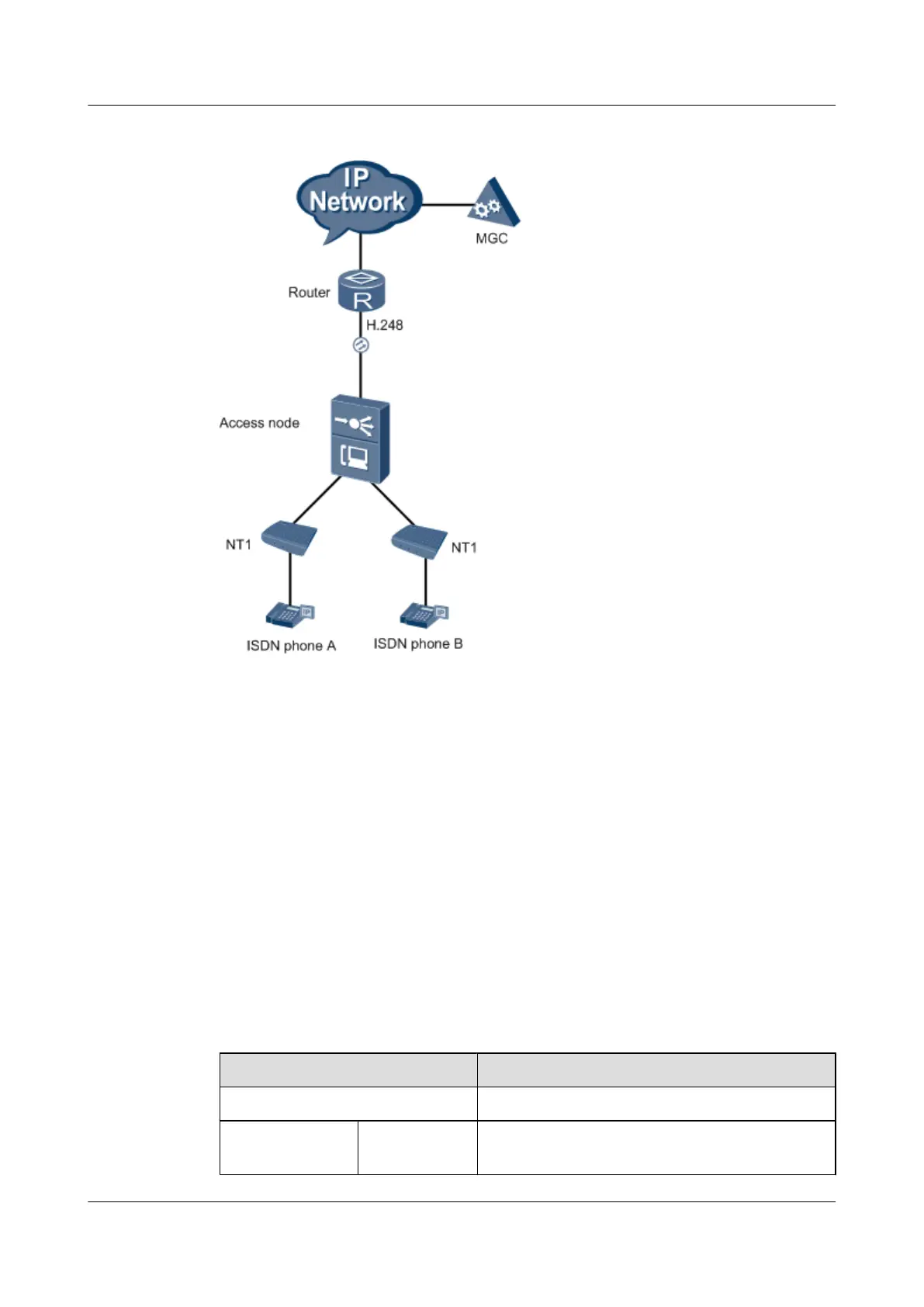

Figure 3-13 Example network of the P2P ISDN BRA service
Prerequisite
l The MG interface and the system parameters must be configured. For the related operations,
see Configuring an MG Interface and (Optional) Configuring the System Parameters. The
MG interface must be in the normal state.
l The ISDN digital phone must support the P2P function.
l The system must be configured with the ISDN service board, that is, the DSRD or DSRE
board.
l The terminal endpoint identifier of the ISDN digital phone must be 0.
Data Plan
Table 3-7 provides the data plan for configuring the P2P ISDN BRA service.
Table 3-7 Data plan for configuring the P2P ISDN BRA service
Item Data
MG interface ID 0
IUA link set
parameter
IUA link set ID 1
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 3 Configuring the DSLAM Services
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
329
