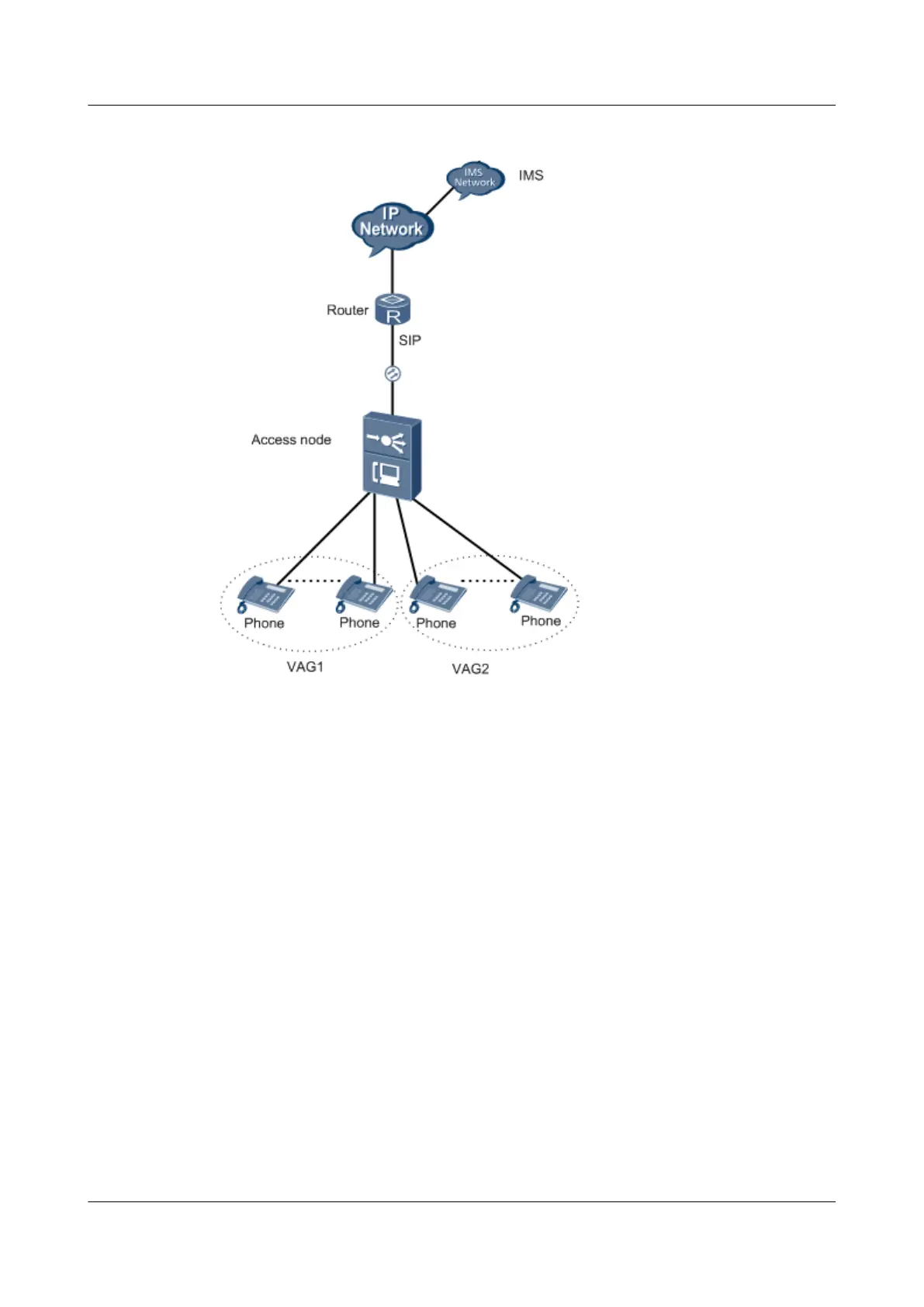

Figure 3-22 Example network of the SIP-based VAG service
Data Plan
The service requirements are as follows:
l As shown in Figure 3-22, configure VAG1, and configure the users in slot 0/2 to belong
to VAG1; configure VAG2, and configure the users in slot 0/3 to belong to VAG2.
l The MA5600T/MA5603T/MA5608T communicates with the IMS through the SIP
protocol.
l Configure the data plan of VAG1 as listed in Table 3-16.
l The data plan of VAG2 is the same as that of VAG1 except for the following differences:
The media IP address and signaling IP address of VAG2 are 10.20.10.11.
The IMS assigns phone numbers 85000000-85000031 to phones 0-31 of VAG2.
l SIP interface 0 indicates VAG1 in the figure, and SIP interface 1 indicates VAG2 in the
figure.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
3 Configuring the DSLAM Services
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
359
