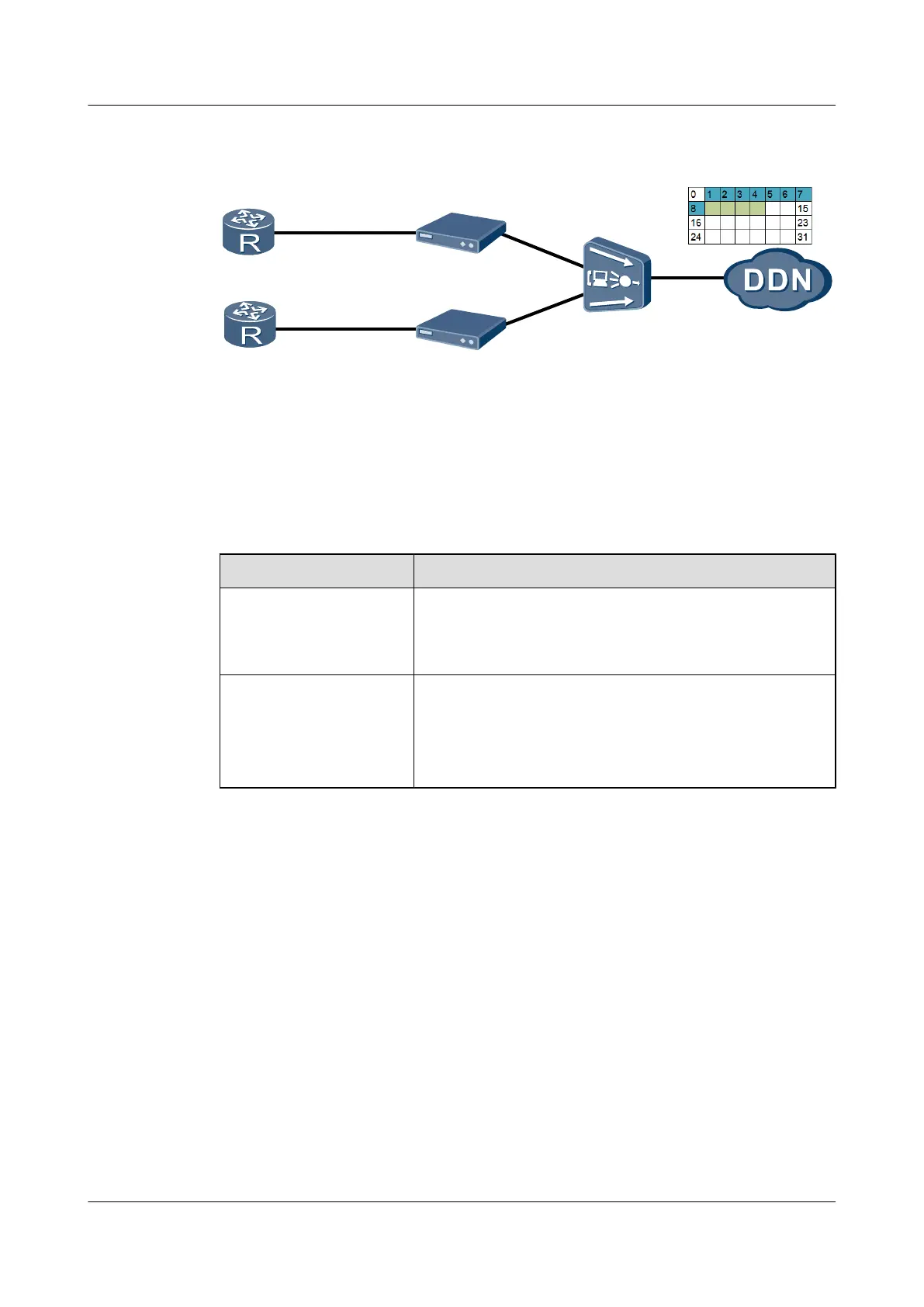

Figure 4-9 Example network of the private line service leasing E1 timeslots

SHDSL Modem

Access

Node

8*64k TDM

SHDSL

4*64k TDM

V35 DTE

CCS

Data Plan

Table 4-10 uses two-channel TDM aggregation (8*64 kbit/s and 4*64 kbit/s) as an example to

describe the data plan in CCS mode.

Table 4-10 Data plan for configuring the private line service leasing E1 timeslots

Item Data

EDTB board Working mode: voice

Working sub-mode: service mode

Clock source: E1 line clock

E1 port Upstream port ID: 0/3/0

Line coding mode: HDB3 (default)

Port impedance: 75 ohms (default)

Port signaling mode: CCS

SmartAX MA5600T/MA5603T/MA5608T Multi-service

Access Module

Commissioning and Configuration Guide 4 Configuration Example of the Private Line Service

Issue 01 (2014-04-30) Huawei Proprietary and Confidential

434
