NOTE

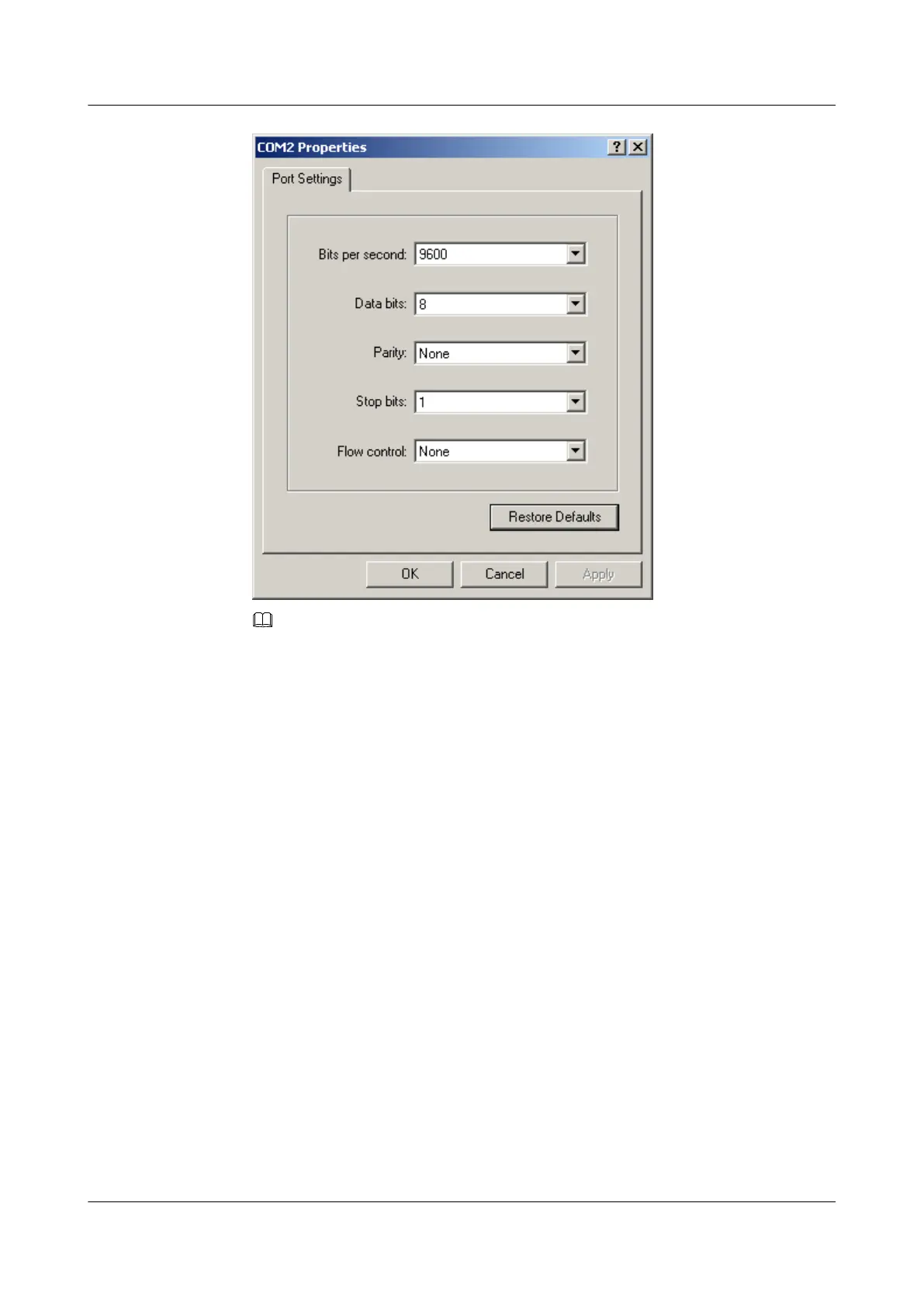

l The baud rate of the HyperTerminal must be the same as the baud rate of the serial port on the

MA5600T/MA5603T/MA5608T. By default, the baud rate of the serial port is 9600 bit/s.

l If illegible characters are displayed on the HyperTerminal interface after you log in to the system,

it is generally because the baud rate of the HyperTerminal is different from the baud rate of the

MA5600T/MA5603T/MA5608T. In this case, set the consistent baud rate for the HyperTerminal

to log in to the system. The system supports the baud rates of 9600 bit/s, 19200 bit/s, 38400 bit/

s, 57600 bit/s, and 115200 bit/s.

4. Click OK to display the HyperTerminal interface.

Step 3 (Optional) Set the properties of the HyperTerminal.

1. Set the emulation type of the HyperTerminal.

Choose File > Properties on the HyperTerminal interface. In the dialog box that is

displayed, click the Settings tab, and set Emulation to VT100 or Auto Detect, as shown

in the following figure. It is Auto Detect by default.

SmartAX MA5600T/MA5603T/MA5608T Multi-service

Access Module

Commissioning and Configuration Guide 1 Commissioning

Issue 01 (2014-04-30) Huawei Proprietary and Confidential
