Huawei SmartAX MA5608T User Manual

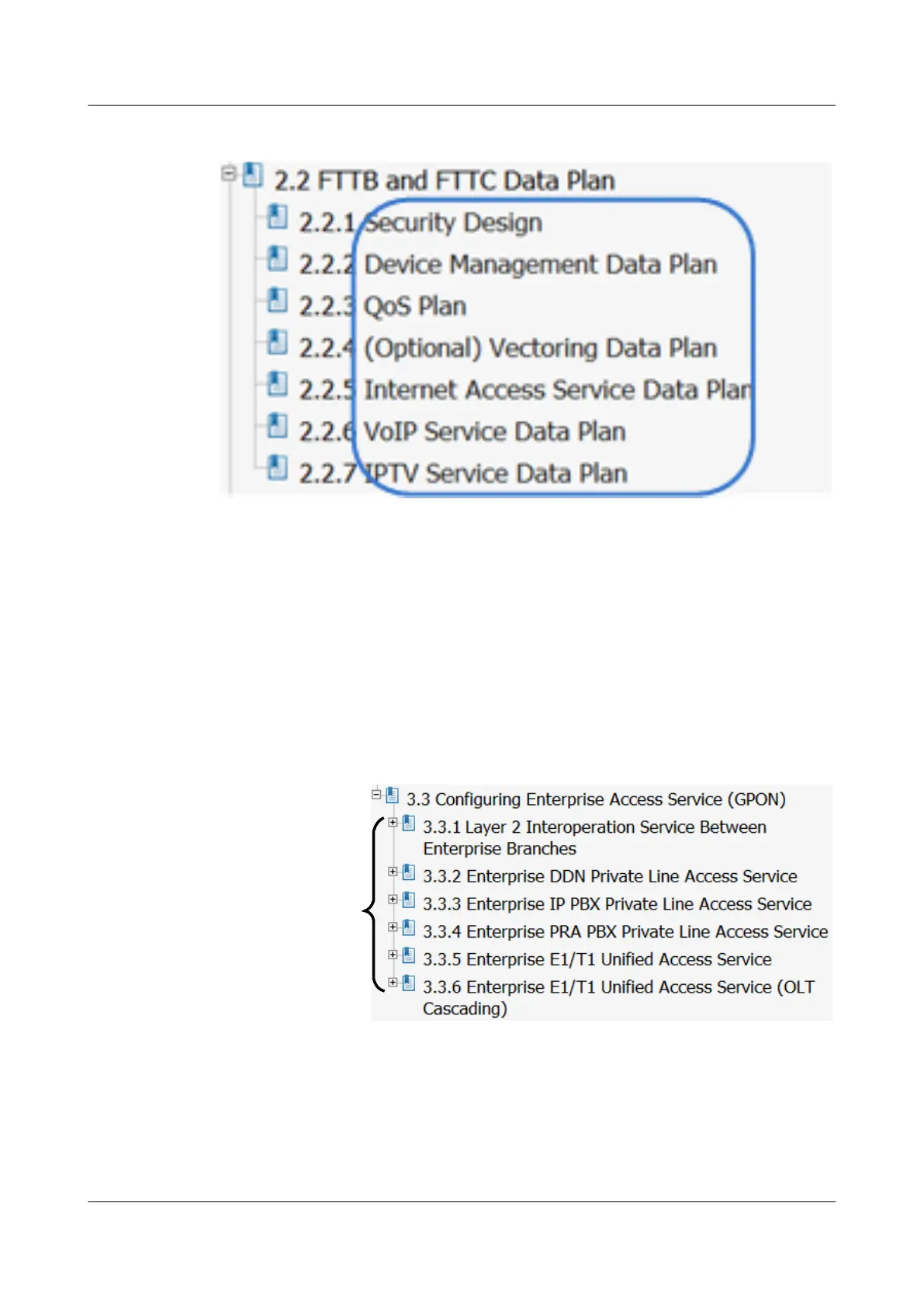

Figure 8-1 Recommended Principle of Data Plan
Typical Network Topology and Application Scenario
Various sub-solutions have different features. This manual is described based on the typical
network topologies and application scenarios. In this case, you can find out the required contents
according to the actual network topology and application scenario.
Takes the Private Line Service Configuration (Enterprise Access) sub-solution as an example,
the application scenarios are shown in Figure 8-2.
Figure 8-2 Typical Application Scenario
typical network
topologies and
application
scenarios
One-button Script Tool
Through a simple-to-use interface, you can instantly transform any configuration page into
command scripts, which greatly reduces the probability of errors compared to manually.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
8 FTTx Configuration Summary
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
544

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
