Item Data
Maintenance terminal IP address: 10.50.1.20/24 (in the same subnet
as the IP address of the maintenance Ethernet
port)
Table 1-15 Data plan for the inband management through telnet in a WAN
Item Data
Upstream port of the MA5600T/MA5603T/
MA5608T
l VLAN ID: 30
l Port: 0/19/0
l IP address: 10.50.1.10/24
Maintenance terminal IP address: 10.10.1.10/24
Router port connecting to the MA5600T/
MA5603T/MA5608T
IP address: 10.50.1.1/24
Flowchart

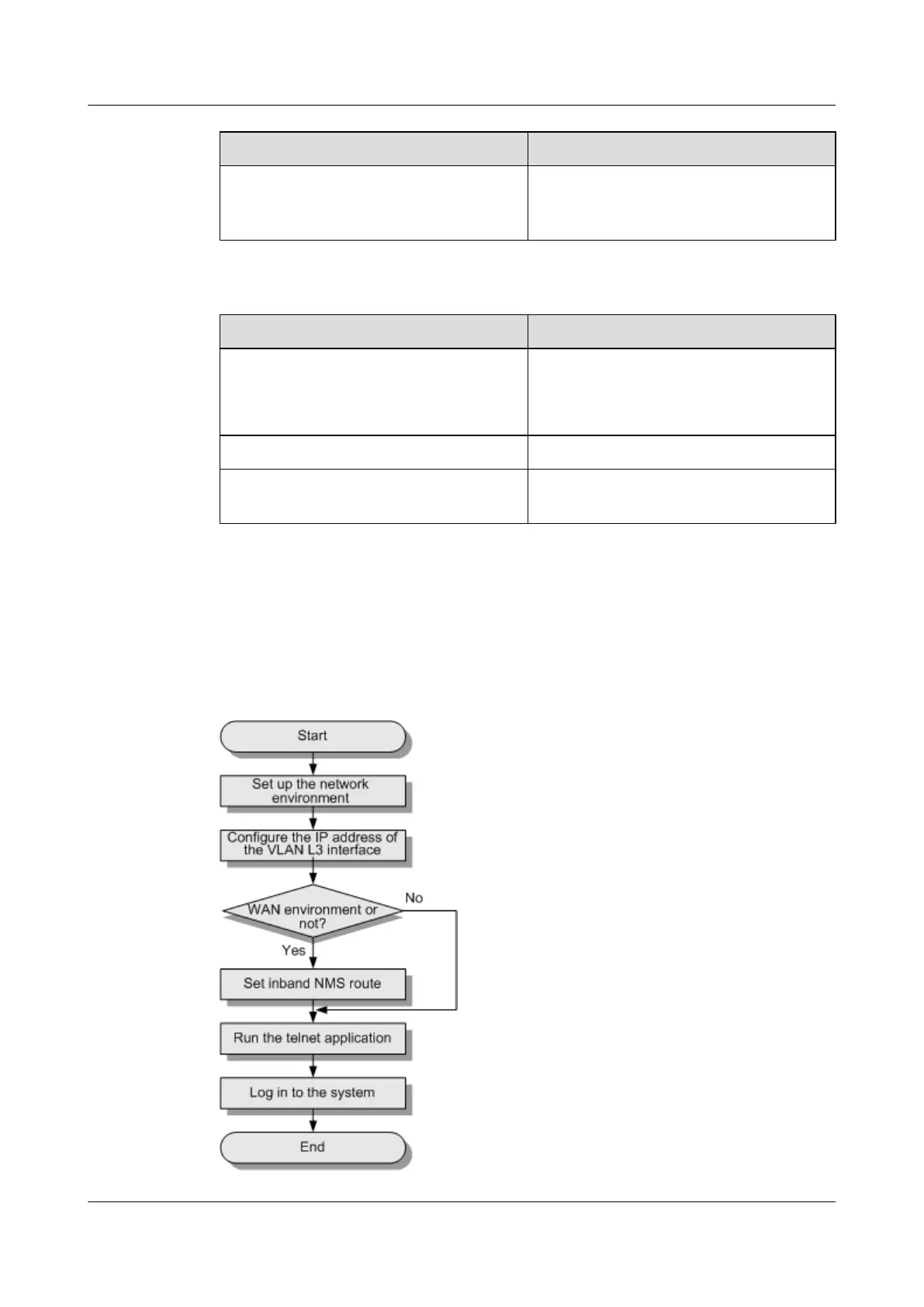

Figure 1-20 shows the flowchart for logging in to the MA5600T/MA5603T/MA5608T through
telnet (inband management).
Figure 1-20 Flowchart for logging in to the MA5600T/MA5603T/MA5608T through telnet
(inband management)
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 1 Commissioning
