Huawei SmartAX MA5608T User Manual

huawei(config)#arp proxy enable
huawei(config)#interface vlanif 300
huawei(config-if-vlanif300)#arp proxy enable
huawei(config-if-vlanif300)#quit
6. Save the data.
huawei(config)#save
l Configure the ONT on the Web page.
Log in to the Web page and then configure the ONT on the Web page.
1. Configure the IP address of the PC network adapter to be in the same network segment
with the IP address of the local maintenance Ethernet port on the ONT (default:
192.168.100.1).
2. Open the Web browser, and enter the IP address (https://192.168.100.1:80 or http://
192.168.100.1) (https with high priority is recommended) of the local maintenance
Ethernet port on the ONT. In the login window that is displayed, enter the user name
(default telecomadmin) and password (default admintelecom) of the administrator.
After the password is authenticated, the web configuration window is displayed.
NOTE
l The following configuration procedure is for scenarios with the bridging ONT. For scenarios with the
bridging ONT+HGW, configure the voice service on the HGW but not on the ONT. For detailed
configurations, see the HGW Configuration Guide.
l The Web page for configuring ONT varies with ONT versions, but the parameter configuration is the
same. For details, see relevant ONT manuals.

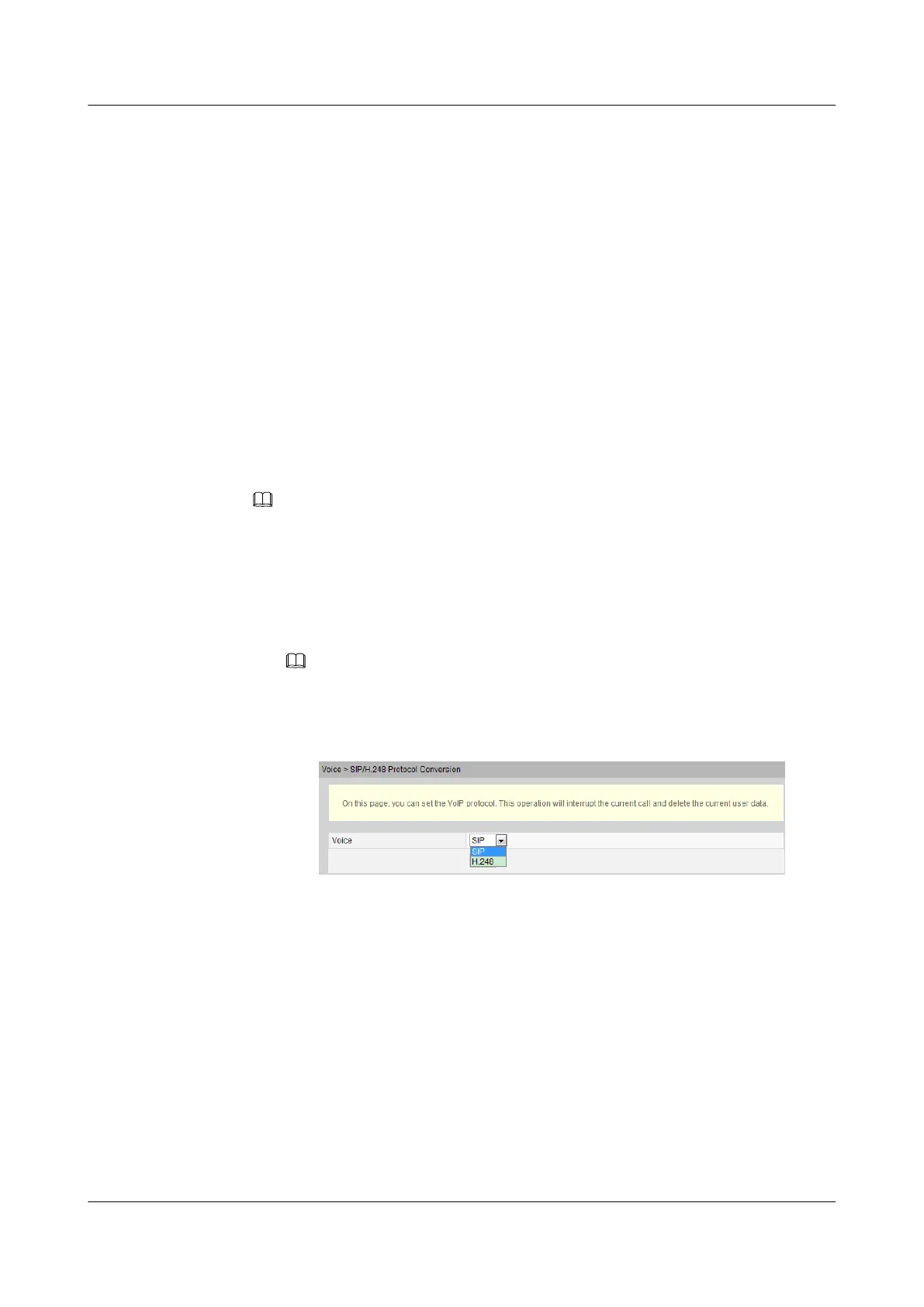

1. Optional: Configure the voice protocol.
NOTE
The default voice protocol is SIP. If the protocol is not changed, skip this step.
a. Choose Voice > SIP/H.248 Protocol Conversion.
b. In the pane on the right, set Voice to SIP.
c. Click Apply.
2. Configure parameters for the voice WAN interface.
a. Choose WAN > WAN Configuration.
b. In the right pane, click New. In the dialog box that is displayed, set the parameters
as follows:
– Select Enable WAN Connection to enable the new WAN connection.
– Set Encapsulation mode to IPoE.
– Set Service Type to VOIP. (For configuring the VoIP service, VoIP or a
combination containing VoIP needs to be selected.)
– Set WAN mode to Route WAN.
– Select Enable VLAN.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
9 FTTH Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
604

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
