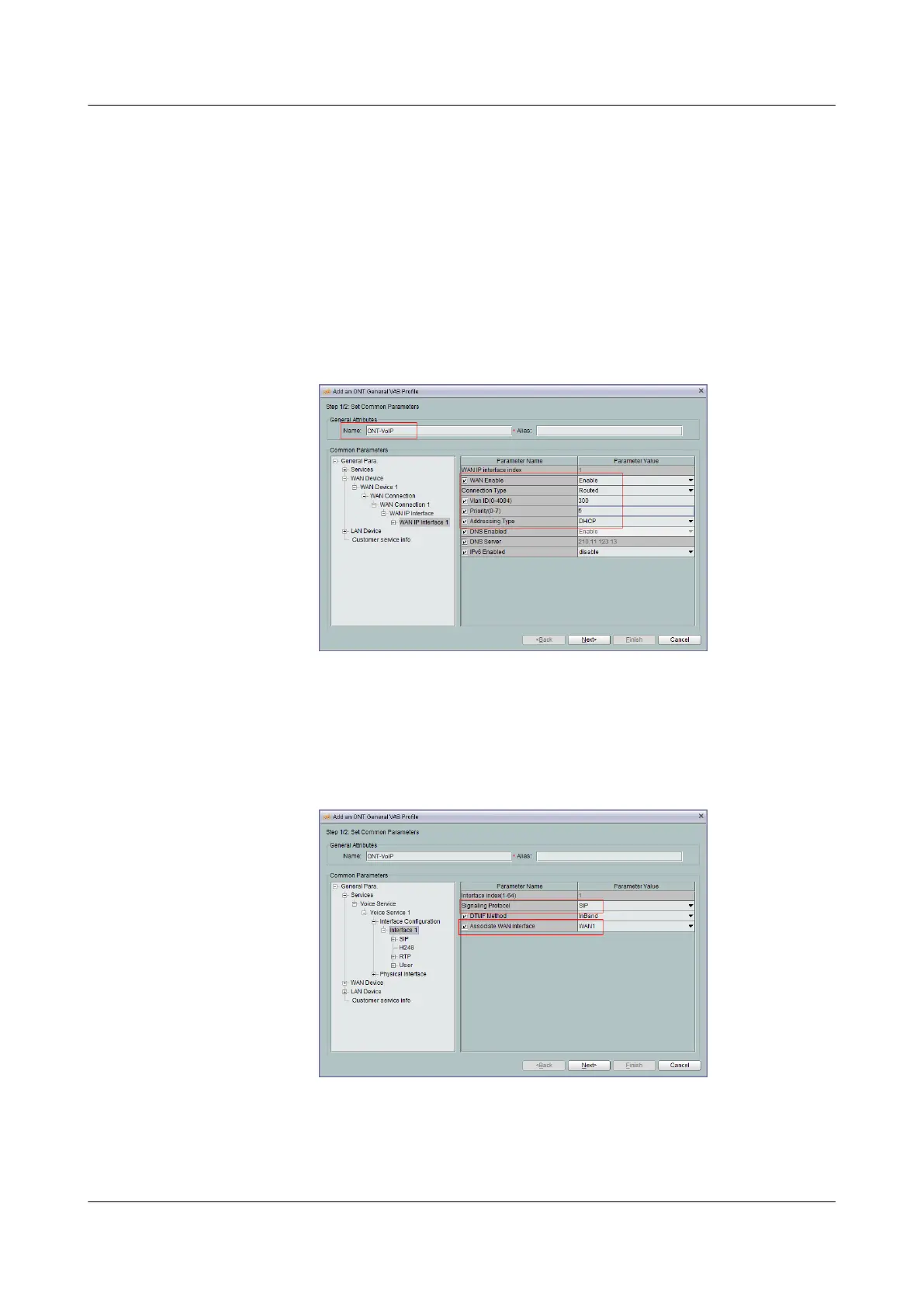

a. In the navigation tree, choose General Para > WAN Device > WAN
Device 1 > WAN Connection. Select WAN Connection, right-click, and
choose Add IP Connection from the shortcut menu.
b. Select WAN IP Interface 1 and enter (or select) a proper value.
– WAN Enable: enable
– Connection Type: Routed
– VLAN ID: 300 (The VLAN ID of the ONT must be the same as the user-side
VLAN ID configured on the OLT.)
– Priority: 5
– Addressing Type: DHCP
e. Configure parameters of the voice protocol.
In the navigation tree, choose General Para > Services > Voice Service > Voice
Service 1 > Interface configuration > Interface 1. Select Interface 1 and select
a proper value.
– Signaling Protocol: SIP
– Associate WAN Interface: WAN1 (binding the created voice WAN port)
f. Configure SIP protocol parameters.
In the navigation tree, choose General Para > Services > Voice Service > Voice
Service 1 > Interface configuration > Interface 1 > SIP. Select SIP and enter
(or select) a proper value.
