Huawei SmartAX MA5608T User Manual

c. Configure parameters for the SIP-based voice users.

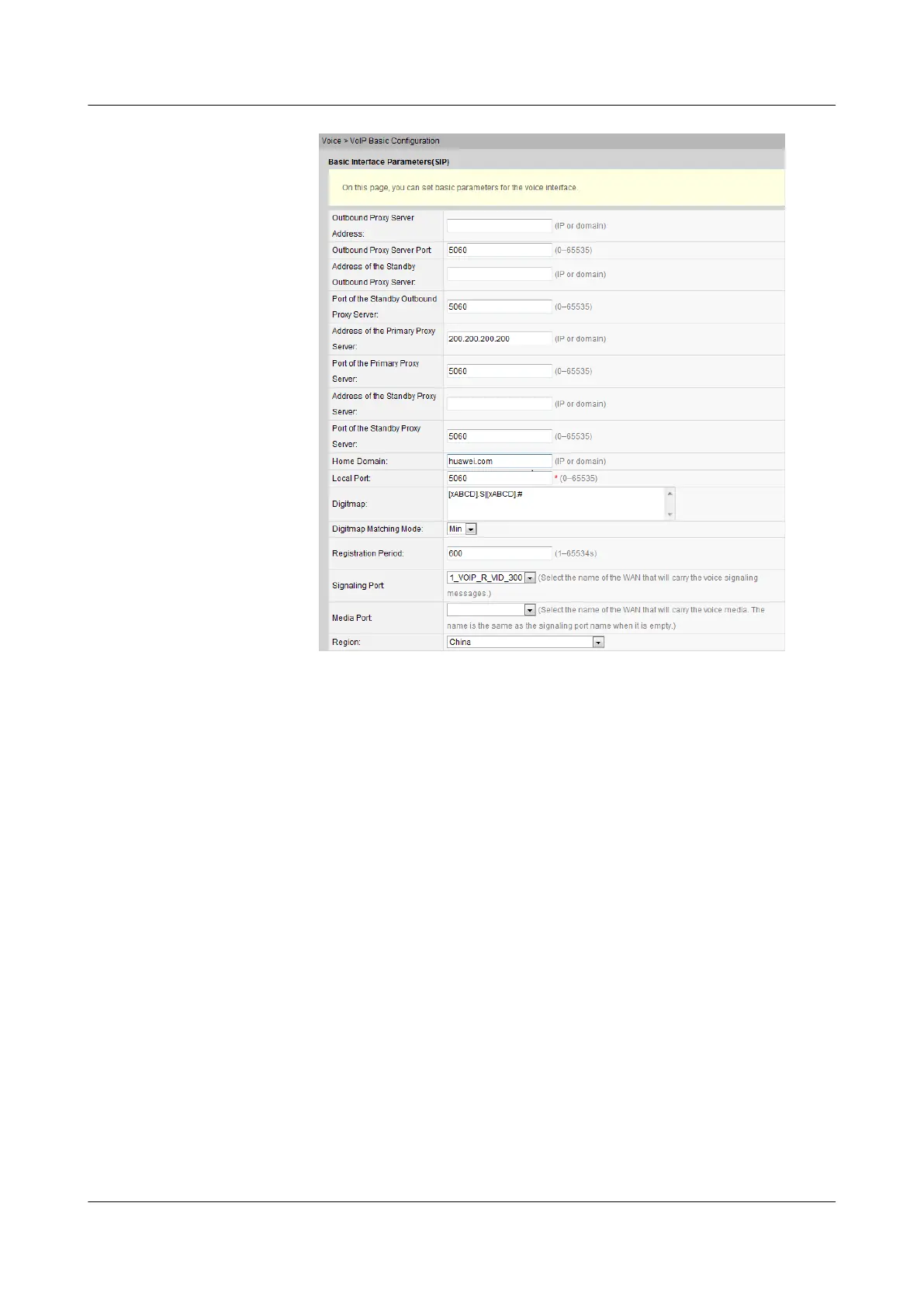

a. Choose Voice > VoIP Basic Configuration.
b. In the Basic User Parameters(SIP) window, set parameters for voice user
1 as follows:
– Select Enable User to enable the voice user configuration.
– Set Registration User Name to 77730010.
– Set Associated POTS Port to 1.
– Set Authentication User Name to +8675577730010@huawei.com.
– Set Password to iadtest1.
Click New to add voice user 2, and set the parameters for voice user 2 as
follows:
– Select Enable User to enable the voice user configuration.
– Set Registration User Name to 77730020.
– Set Associated POTS Port to 2.
– Set Authentication User Name to +8675577730020@huawei.com.
– Set Password to iadtest2.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
9 FTTH Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
687

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
