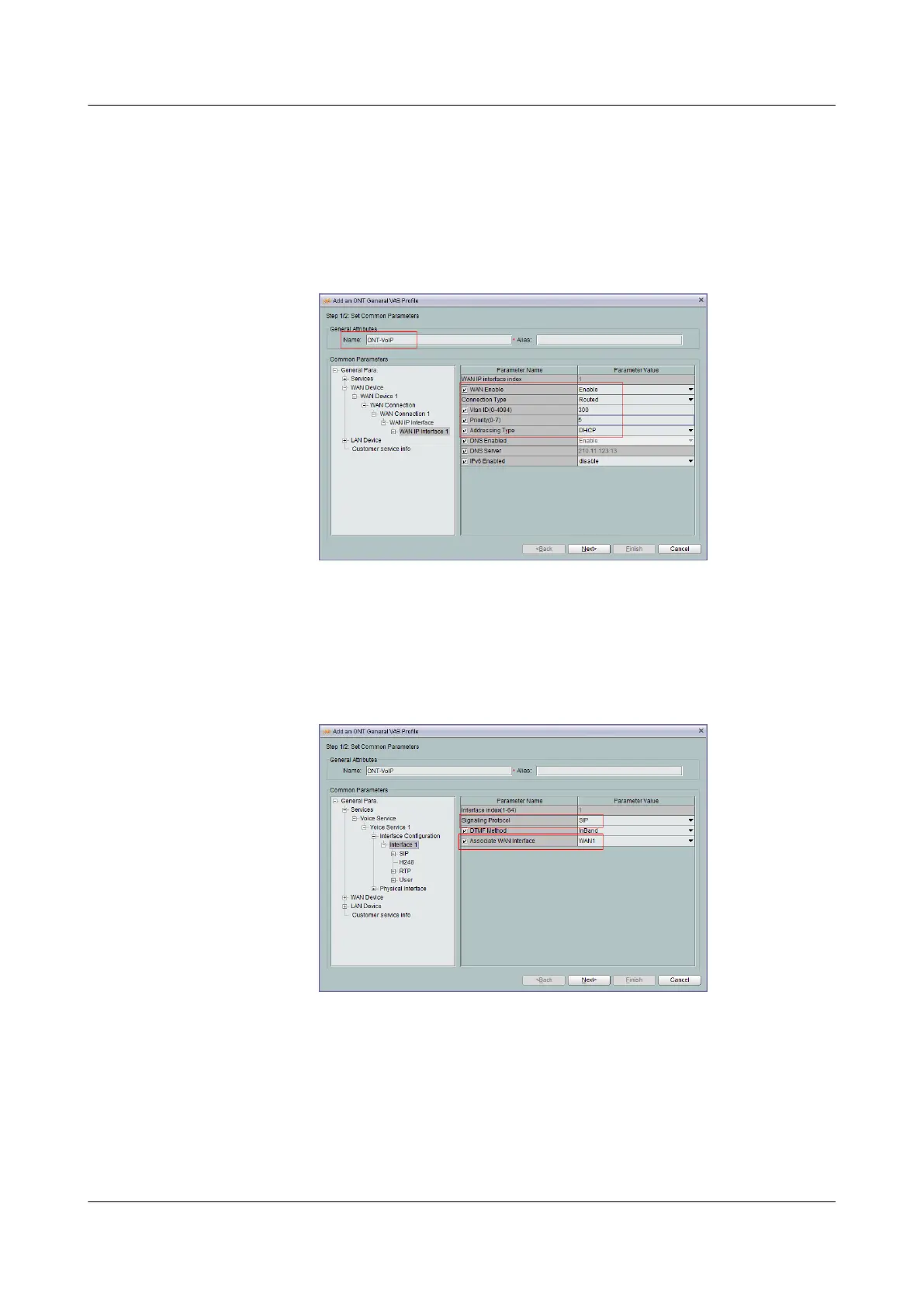

– WAN Enable: enable
– Connection Type: Routed
– VLAN ID: 300 (The VLAN ID of the ONT must be the same as the user-side
VLAN ID configured on the OLT.)
– Priority: 5
– Addressing Type: DHCP
e. Configure parameters of the voice protocol.
In the navigation tree, choose General Para > Services > Voice Service > Voice
Service 1 > Interface configuration > Interface 1. Select Interface 1 and select
a proper value.
– Signaling Protocol: SIP
– Associate WAN Interface: WAN1 (binding the created voice WAN port)
f. Configure SIP protocol parameters.
In the navigation tree, choose General Para > Services > Voice Service > Voice
Service 1 > Interface configuration > Interface 1 > SIP. Select SIP and enter
(or select) a proper value.
– Proxy Server: 200.200.200.200
– Server Port: 5060
– Home Domain: huawei.com
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
9 FTTH Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
689

Huawei SmartAX MA5608T Specifications

General

Dual Power Supply	Yes
Humidity	5% to 95% (non-condensing)
Uplink Slots	2
Maximum GPON Ports	16
Input Voltage Range	-38.4 V DC to -72 V DC
Device Type	OLT
Power Supply	-48 V DC
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to 70°C
Switching Capacity	128 Gbps
Ports	GPON, XG-PON, 10GE
