and password (default: admintelecom) of the administrator. After the password is
authenticated, the Web configuration window is displayed.
NOTE
The webpage login supports SSL3.0, TLS1.0, and TLS1.1. It is recommended that you use high-security
TLS1.1 if you log in to the ONU using https.
1. Configure the voice protocol.
NOTE
The default voice protocol is SIP. Before the configuration, perform this step to change the voice
protocol.
1. Choose System Tools > VoIP Protocol from the main menu.
2. In the pane on the right side of the window, set voice to H.248.
3. Click . The configuration takes effect.
2. Configure parameters for the voice WAN interface.
a. Choose WAN > WAN Configuration.
b. In the right pane, click New. In the dialog box that is displayed, set the parameters
as follows:
– Select Enable WAN Connection to enable the new WAN connection.
– Set Service List to VOIP.
– Set Mode to Route WAN.
– Set VLAN ID to 300.
– Set 802.1p to 5.
– Set IP Acquisition Mode to DHCP.

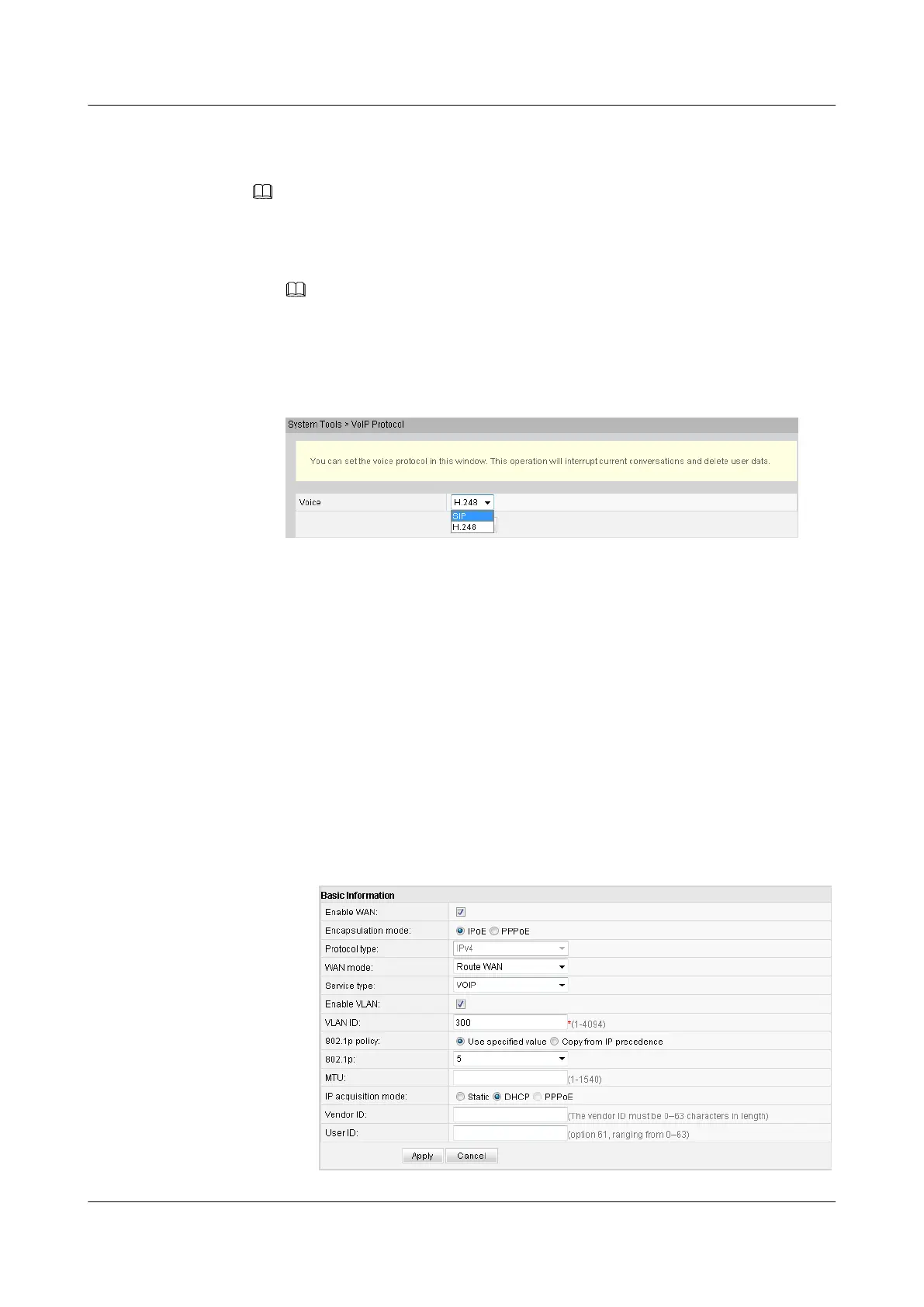

Figure 10-6 shows the parameter settings.
Figure 10-6 Parameter settings on the Web page for the voice WAN interface
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide 10 FTTD Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
761
