Huawei SmartAX MA5608T User Manual

Parameter Access Distance Remarks
< 100 m < 300 m 300-500 m 500-800 m 800-1000 m
Path mode PTM PTM PTM PTM PTM Only the PTM
mode is
supported on
an FTTD
network.
Configuration Process
Figure 10-12 shows the process for configuring a VDSL2 line profile in TR129 mode.

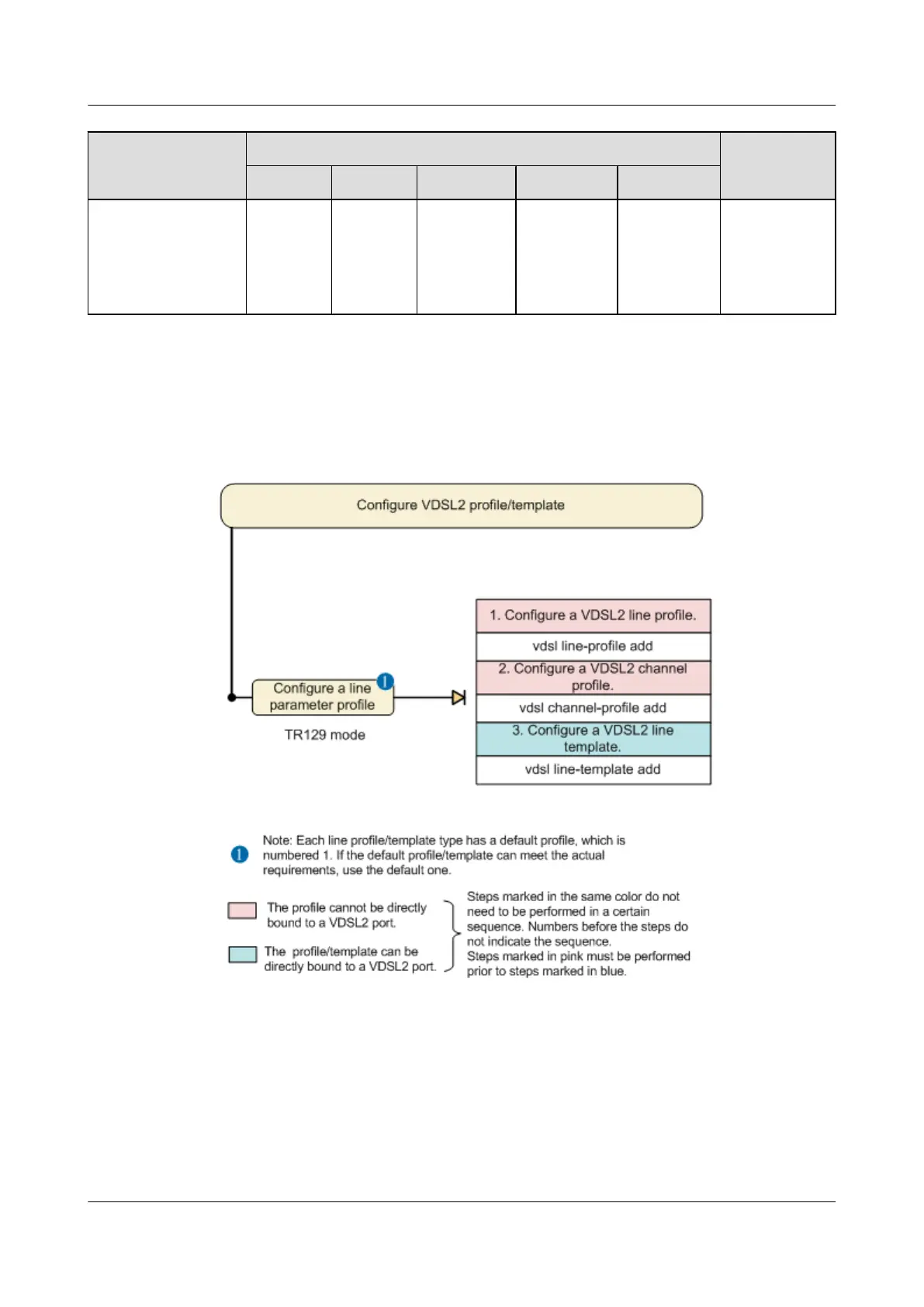

Figure 10-12 Flowchart for configuring a VDSL2 line profile in TR129 mode
Figure 10-13 shows the process for configuring a VDSL2 line profile in TR165 mode.
SmartAX MA5600T/MA5603T/MA5608T Multi-service
Access Module
Commissioning and Configuration Guide
10 FTTD Configuration
Issue 01 (2014-04-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
795
