F.7Part. N. 8000 H1344 (10-2009)
ENGINE DISASSEMBLY

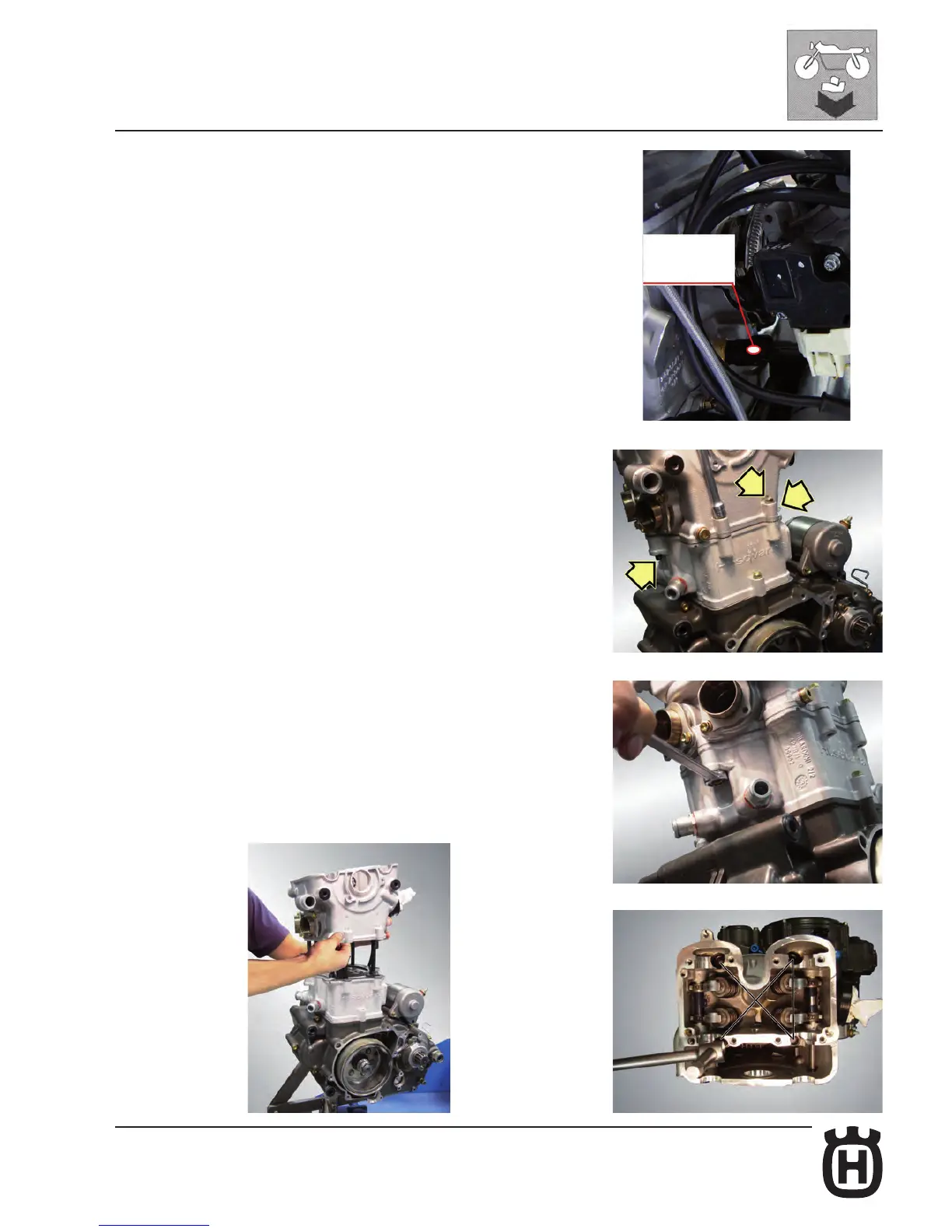

Cylinder head disassembly
TE-SMR: remove the coolant uid temperature sensor with its O-ring.
Remove the two screws on the L.H.S (8 mm wrench) then the front nut under
the cylinder head (13 mm wrench).
Remove the four inner screws on the cylinder head (10 mm wrench) whilst fol-
lowing a cross-over pattern.
Remove the cylinder head and relative gasket.
COOLANT FLUID
TEMPERATURE
SENSOR
