M.31Part. N. 8000 H1344 (10-2009)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT

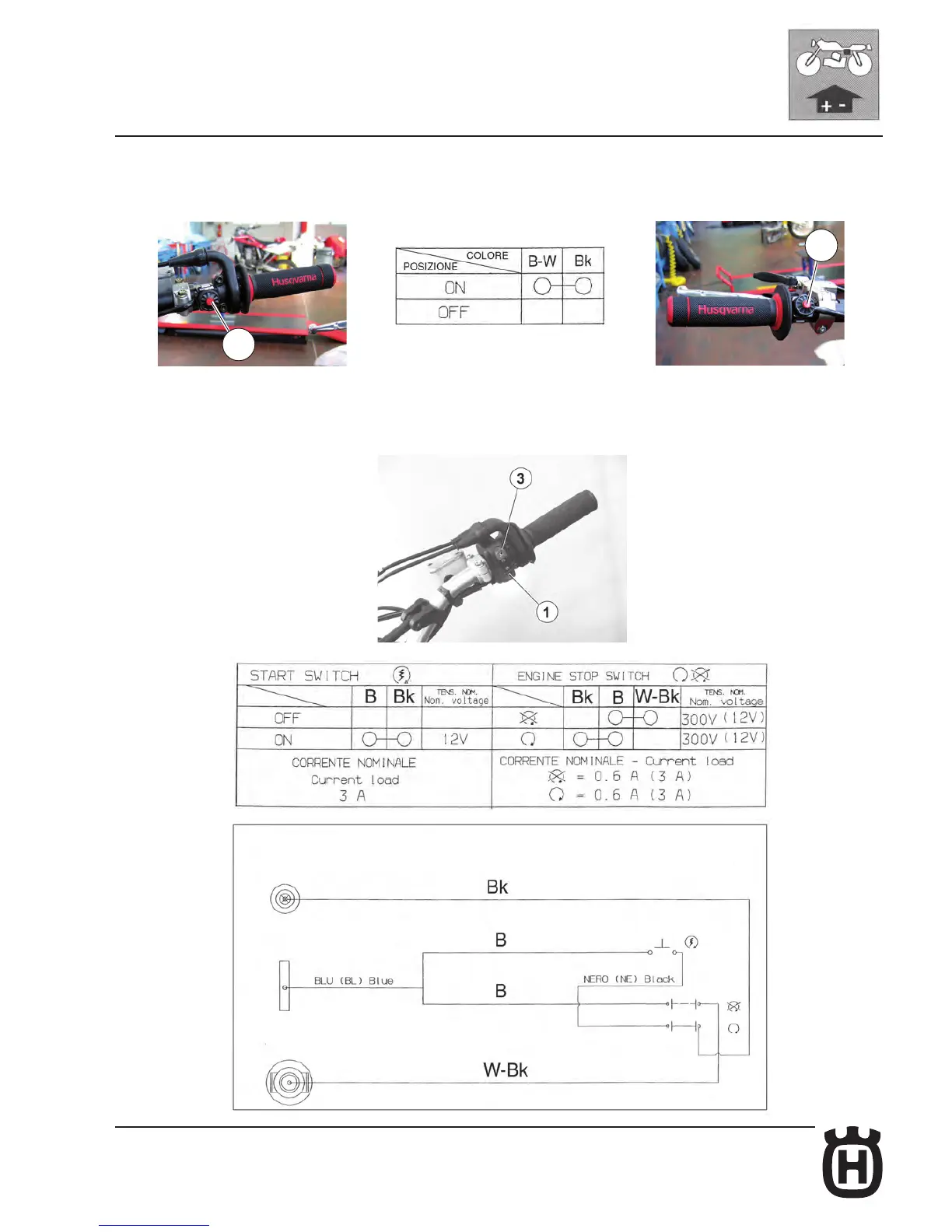

HANDLEBAR COMMUTATORS
Measure the commutators continuity using a tester. In case of anomalies, replace the defective part.
1- Engine start and stop switches
TC-TXC
1. Engine ignition button (TXC) 2. Engine stop button
(TC-TXC)
TE-SMR
1
2
1. Engine ignition button
3. Engine start-stop button
2- R.H. Commutator
