Husqvarna TE 310 - Reassembly of Gearshift Mechanism, Electric Starting System and Oil Pump

H.24 Part. N. 8000 H1344 (10-2009)
ENGINE REASSEMBLY

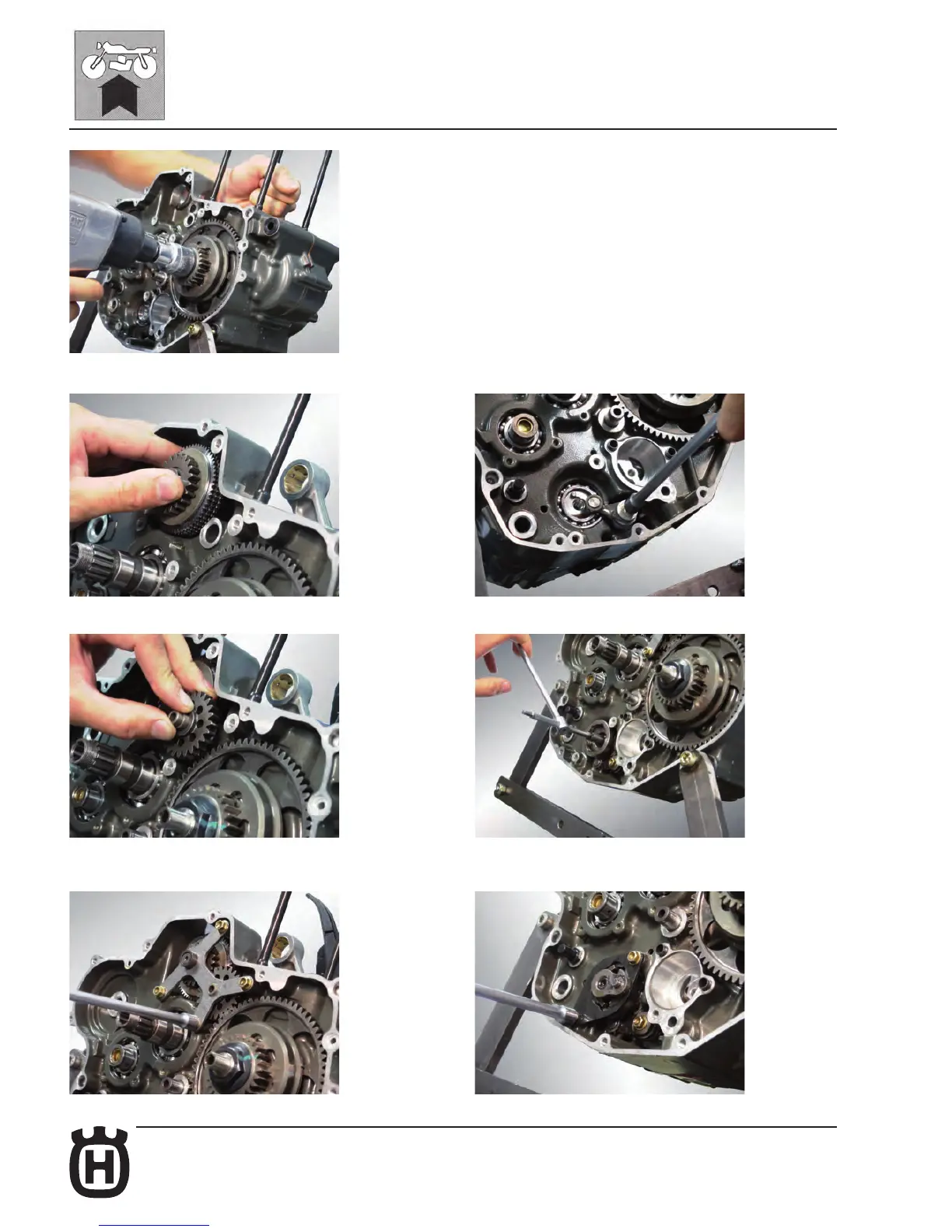

Reassembly of gearshift mechanism, electric starting system and oil
pump
Assembly of the gearshift mechanism should be done in reverse order to disas-
sembly. Tighten the driving gear on the crankshaft to the required torque (180
Nm-18 Kgm-130 ft/lb + LOCTITE 243).
Mount the starting driven gear.
NOTE: reassemble the free wheel in accordance with the mark previously done,
during disassembly.
Check the gears teeth for wear and failure. If worn or breaked, replace it.
Mout the second starting driven gear.
Mount the retaining plate (11 Nm-1,1 Kgm-7.9 ft/lb + LOCTITE 243).
Tighten the gear selector xing pin (20 Nm-2 Kgm-14.5 ft/lb + LOCTITE 270),
mount the gear xing click and the relative spring. Mount the sprocket and x
the plate (8 Nm-0,8 Kgm-5.8 ft/lb + LOCTITE 243).
