FRAME AND WHEELS

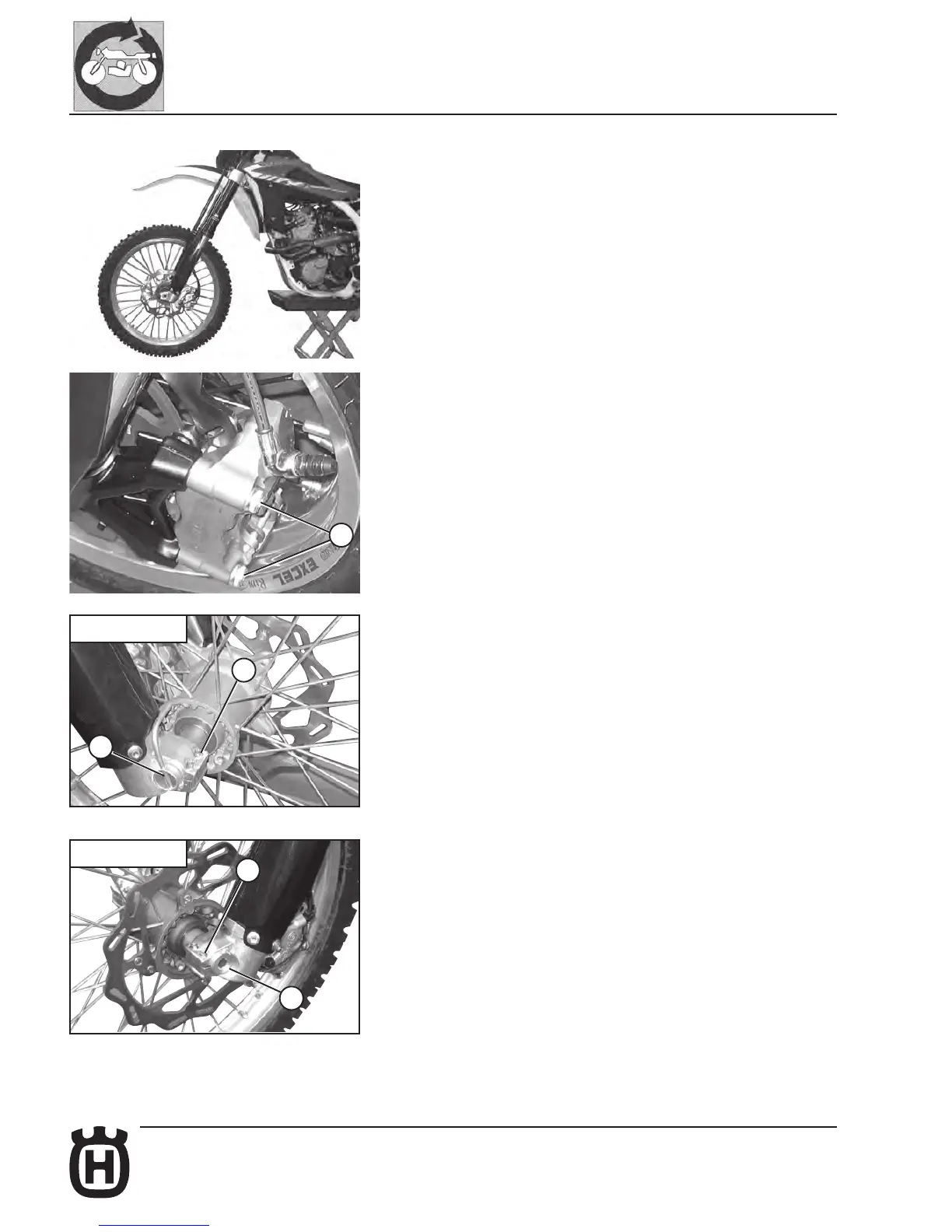

Removing the front wheel (pages Y.6-Y.7)
Set a stand or a block under the engine and see that the front wheel is lifted
from the ground.
SMR: remove the two screws (A) and the brake caliper.
Loosen the screws (1) fastening the wheel axle (2) to the fork rod supports.
Lock the wheel pin head and at the same time loosen the screw (3) on the
opposite side; remove the wheel axle.
