E.25Part. N. 8000 H1344 (10-2009)
GENERAL OPERATIONS

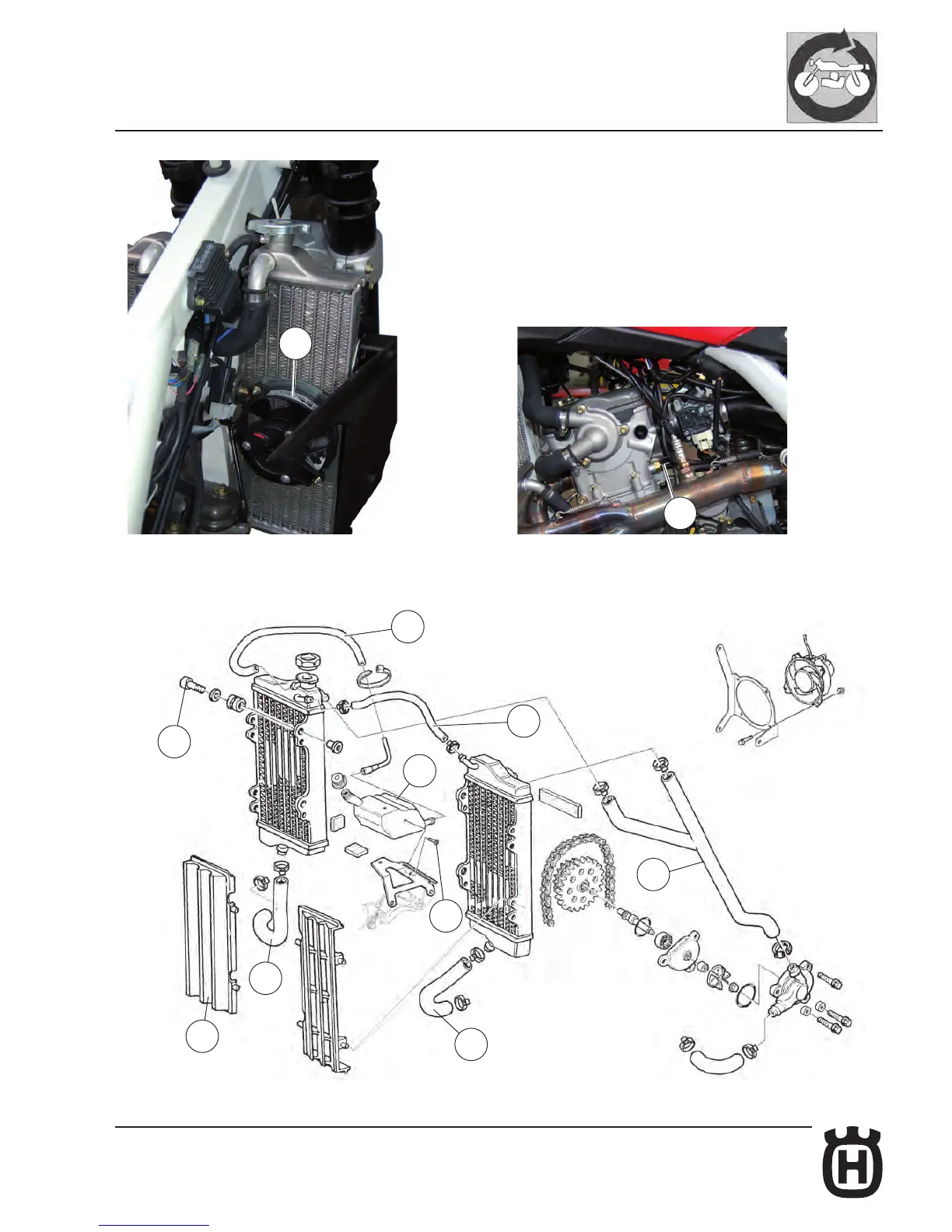

Removal of cooling fan (TE-SMR), radiators and coolant expansion tank
(TE-SMR)
TE-SMR: disconnect the cooling fan (1) from the main wiring harness; remove
the fan from its holding plate. Detach the thermoswitch (2) from the main wiring
harness.
Remove the grid (3), detach the breather hose (4), the other hoses (A) from the
radiators, remove the three screws (5) and the R.H. radiator. Repeat the same
operations to remove the L.H. radiator:
TE-SMR: remove the two screws (6) and the coolant expansion tank (7).
2
1
5
4
A
7
A
6
A
3
A
