SETTINGS AND ADJUSTMENTS
Part. N. 8000 H1344 (10-2009) D.7

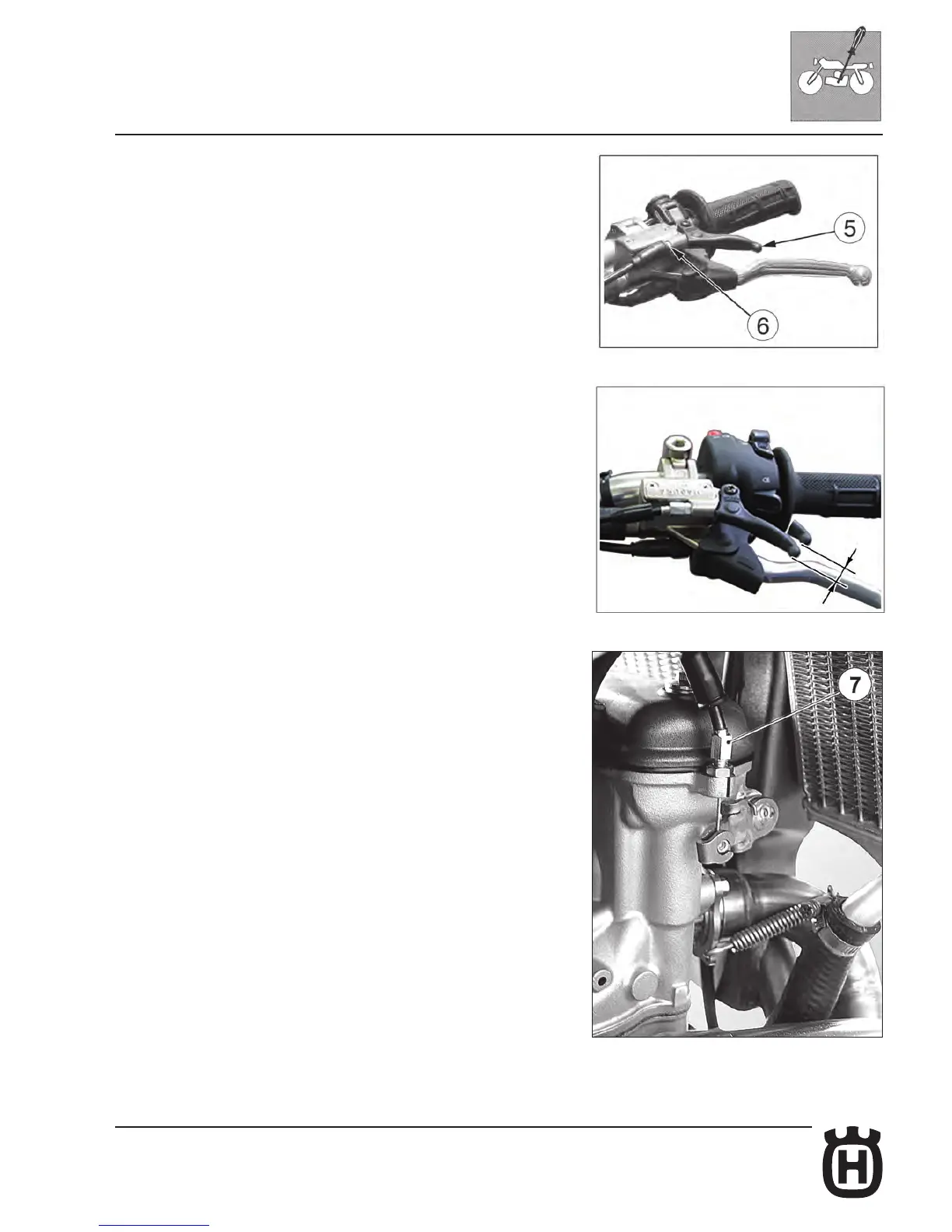

Adjustment of starter decompression device
In order to adjust the lever decompressor free play (approximately 3 mm - 0.12
in.): should the clearance be incorrect, unblock the counter ring-nut and turn the
adjusting screw (by unscrewing it, the clearance is reduced, while by screwing
screw it is increased); the lever holder (5) is provided with the adjuster (6); the
adjustment can be also effected with the tightener (7) on the R.H. side of the
engine (use this tightener if it is not possible to obtain the correct free play with
the adjuster on the handlebar).
