FRONT SUSPENSION
ADJUSTMENTS

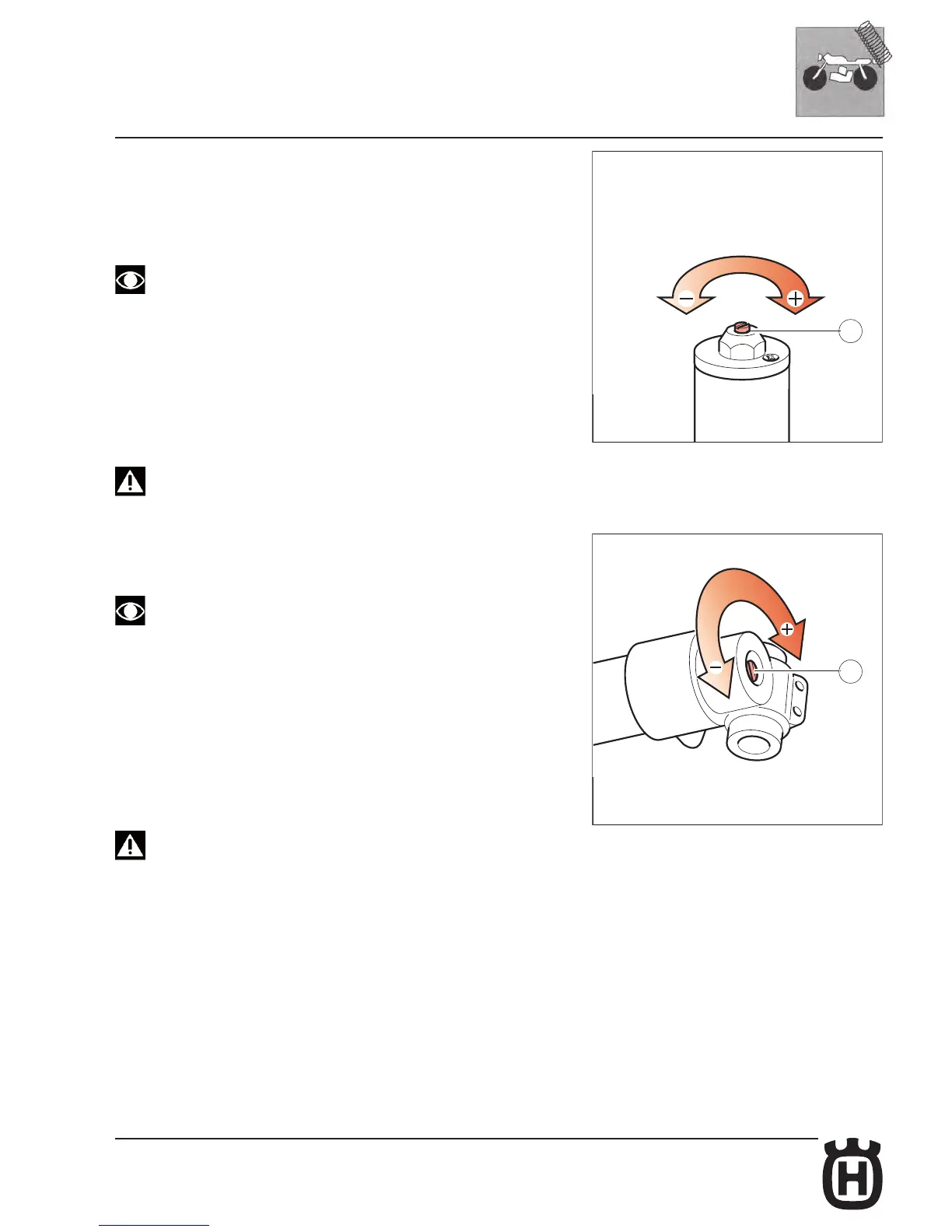

REBOUND ADJUSTMENT
The extension (or rebound) damping adjustment can be made by acting on the
adjustment screw ( R ) you can see on the upper cap of both legs.
To modify the rebound braking adjustment, always start from the “fully
closed” position (the screw is fully turned clockwise). Each screw position
can be recognized by a “click”.
increase the rebound hydraulic damping, making the fork slower during the
rebound phase.
you will decrease the rebound hydraulic damping, making the fork more respon-
sive during the rebound phase.
WARNING
Do not force the adjustment screw (R) past its limits.
COMPRESSION ADJUSTMENT
The compression damping adjustment can be made by acting on the adjustment
screw ( C ) you can see at the bottom of both fork legs.
To modify the compression braking adjustment, always start from the “fully
closed” position (the screw is fully turned clockwise). Each screw position
can be recognized by a “click”.
increase the compression hydraulic damping, reducing the travel made by the
fork, under the same stress.
will decrease the compression hydraulic damping, making the fork softer against
ground harshness.
WARNING
Do not force the adjustment screw (C) past its limits.
STANDARD ADJUSTMENTS
Compression: -12 clicks
Extension: -12 clicks
