G.9Part. N. 8000 H1344 (10-2009)
ENGINE OVERHAULING

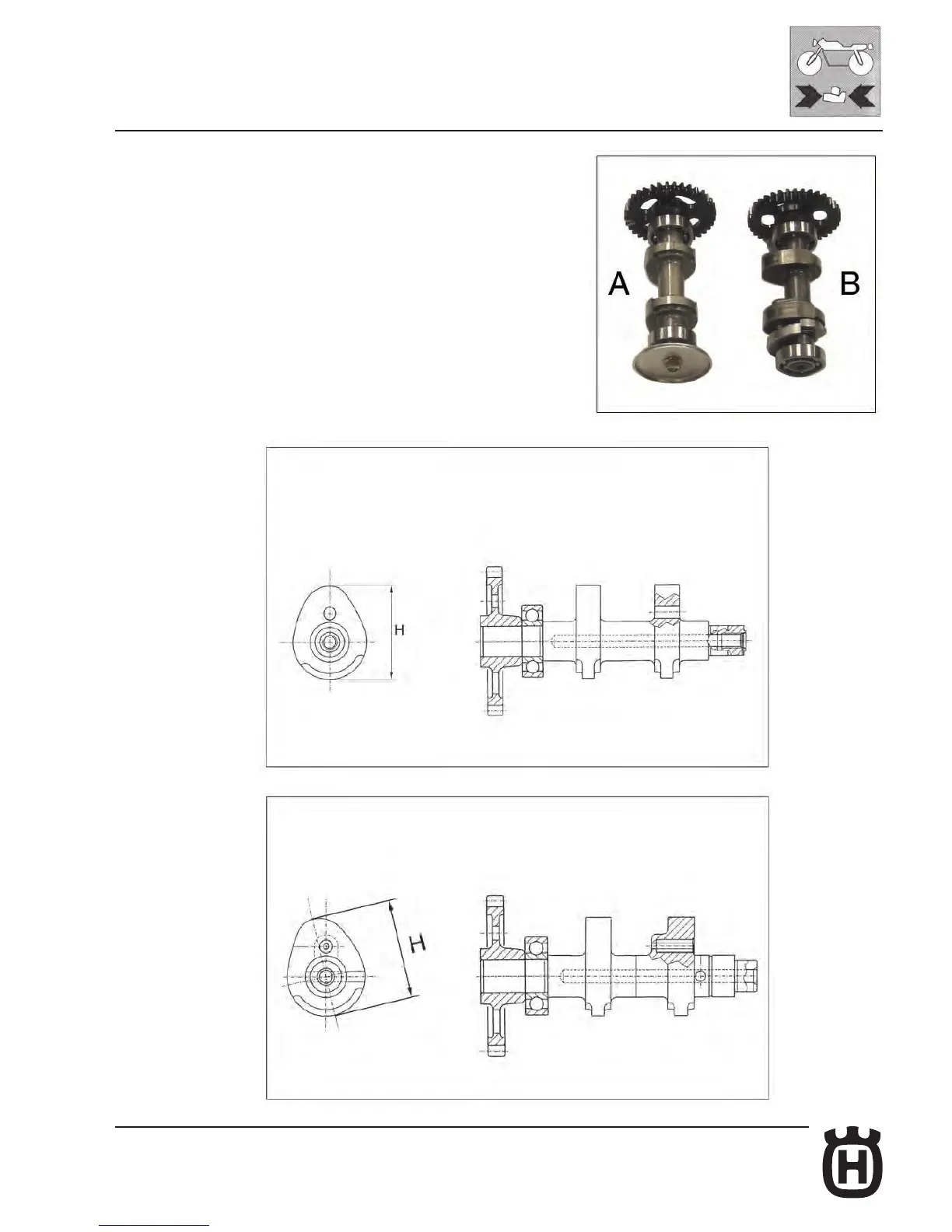

Camshaft
Check that cam surfaces are scored, stepped, grooved etc. Insert the camshaft
between two references and then check deviation using two comparators.
Wear limit: 0.0039 in.
Check that the cams are in good conditions, without wear or deformation.
Cam height “H”
INTAKE (new) = 36,57 mm/ 1.440 in. (450-510); 36,69mm /1.444 in. (310)
EXHAUST (new) = 35,94 mm/ 1.415 in. (450-510) and (310)
A: INTAKE
B: EXHAUST
A)
B)
INTAKE
EXHAUST
