E.23Part. N. 8000 H1344 (10-2009)
GENERAL OPERATIONS

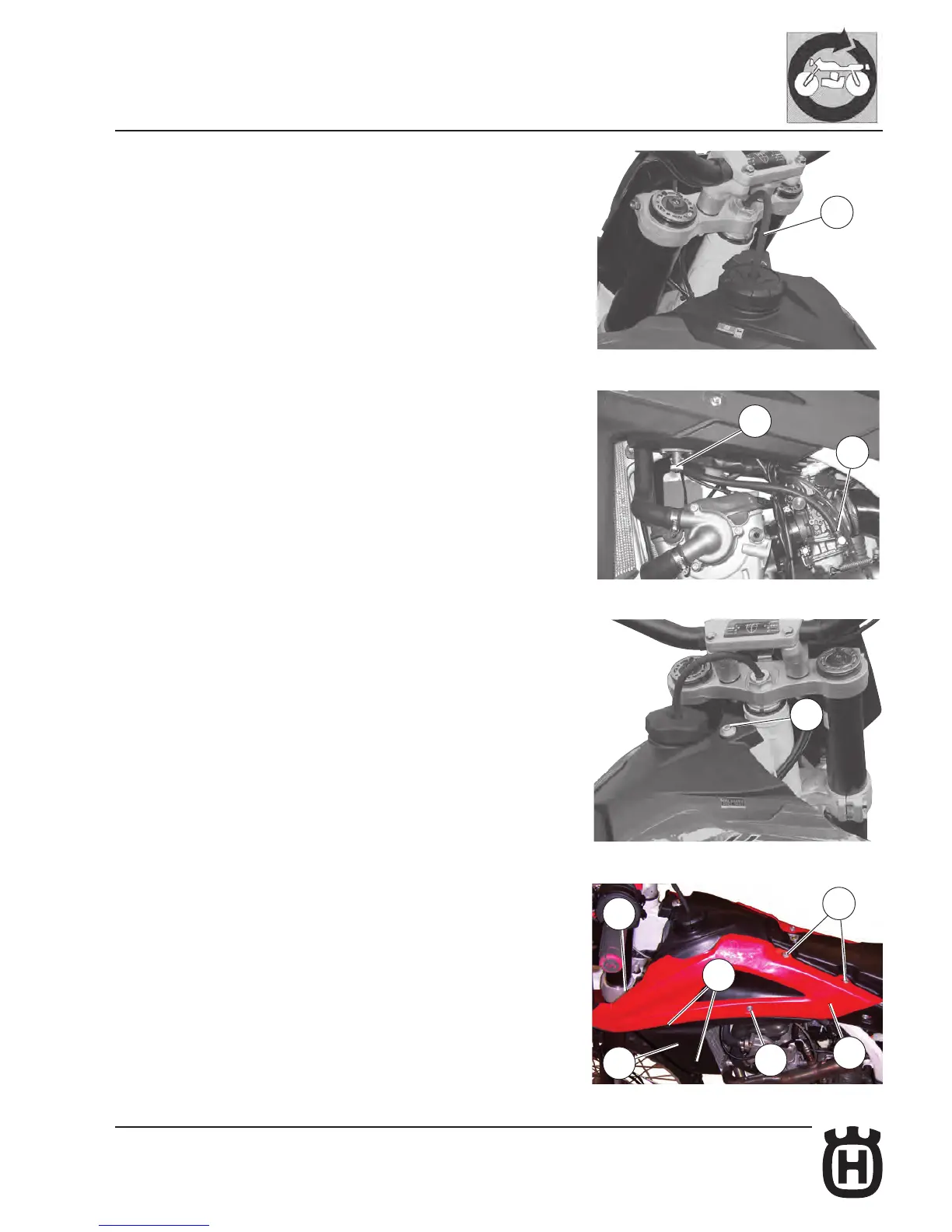

Removal of fuel tank, conveyors and spoiler
Remove the saddle as described on page E.15.
TC-TXC
Remove the vent pipe (1) from the steering pin. Turn the ring nut of the fuel tap
(2) anticlockwise to stop fuel owing and loosen the clamp (3) on the carburet-
tor fuel pipe; remove this pipe from the carburettor and pour the remaining fuel
into a container.
Loosen the fastening screws (6) of the fuel tank. Remove the screws (4) holding
conveyors to the tank; remove the conveyors (7), the screws (5) holding spoilers
(8) to radiators. Remove the spoilers and extract the tank.
2
3
1
6
4
7
4
4
5
8
