GENERAL OPERATIONS

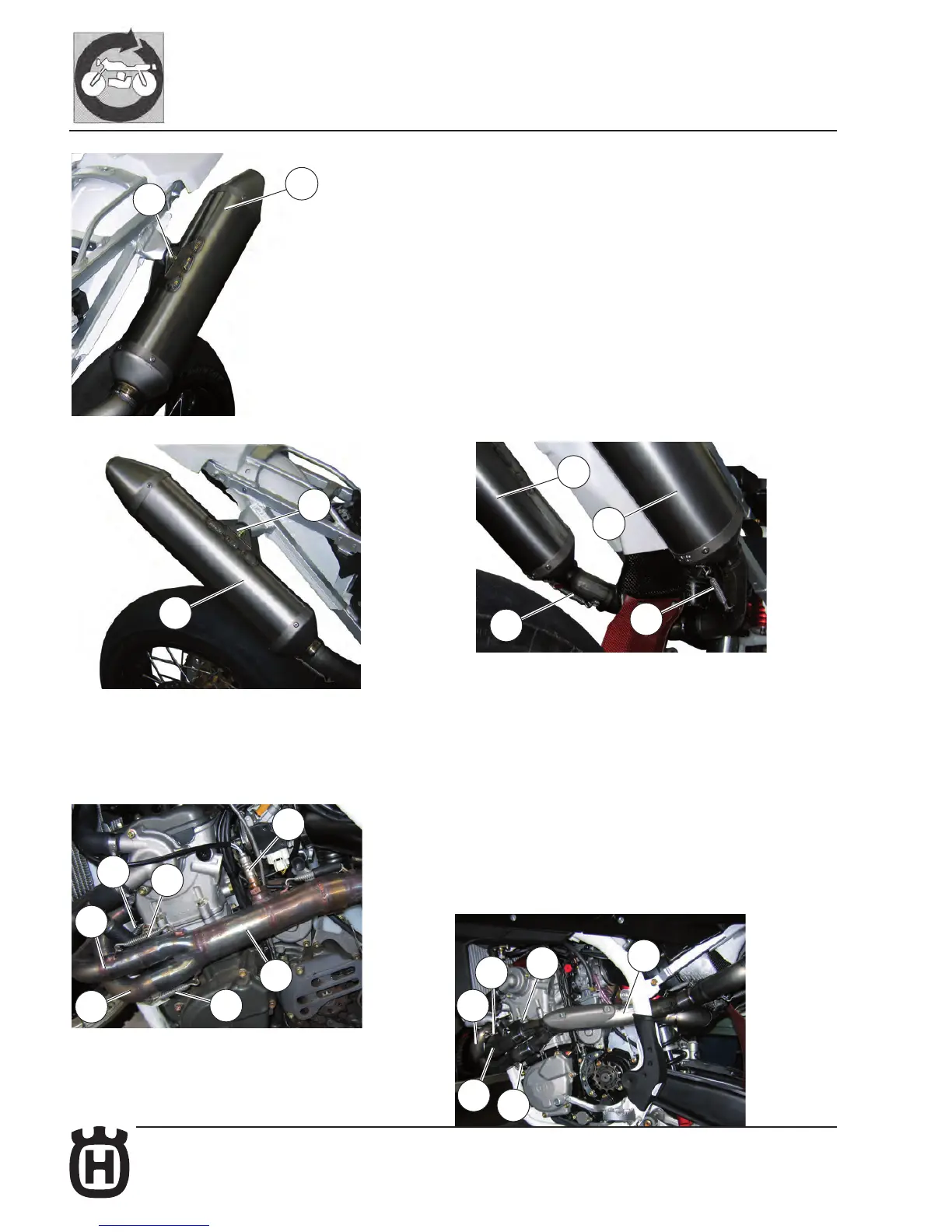

3) TE-SMR: remove the LAMBDA probe (A). Remove the intermediate pipe (8).
Remove the springs (9) and remove pipes (6) and (7) from the cylinder head by
gently hitting outward.
A
5
5
8
9
6
7
8
5
9
7
5
6
3) SMR: use an 8 mm T-wrench outside and a 10 mm T-wrench inside to remove
the fastening screw (1) of silencers (3) and (4). Remove the spring (2) and extract
silencers (3) and (4). Remove the clamps (A) that the hold front pipes (6) and
(7) to the intermediate pipe (8).
