SETTINGS AND ADJUSTMENTS

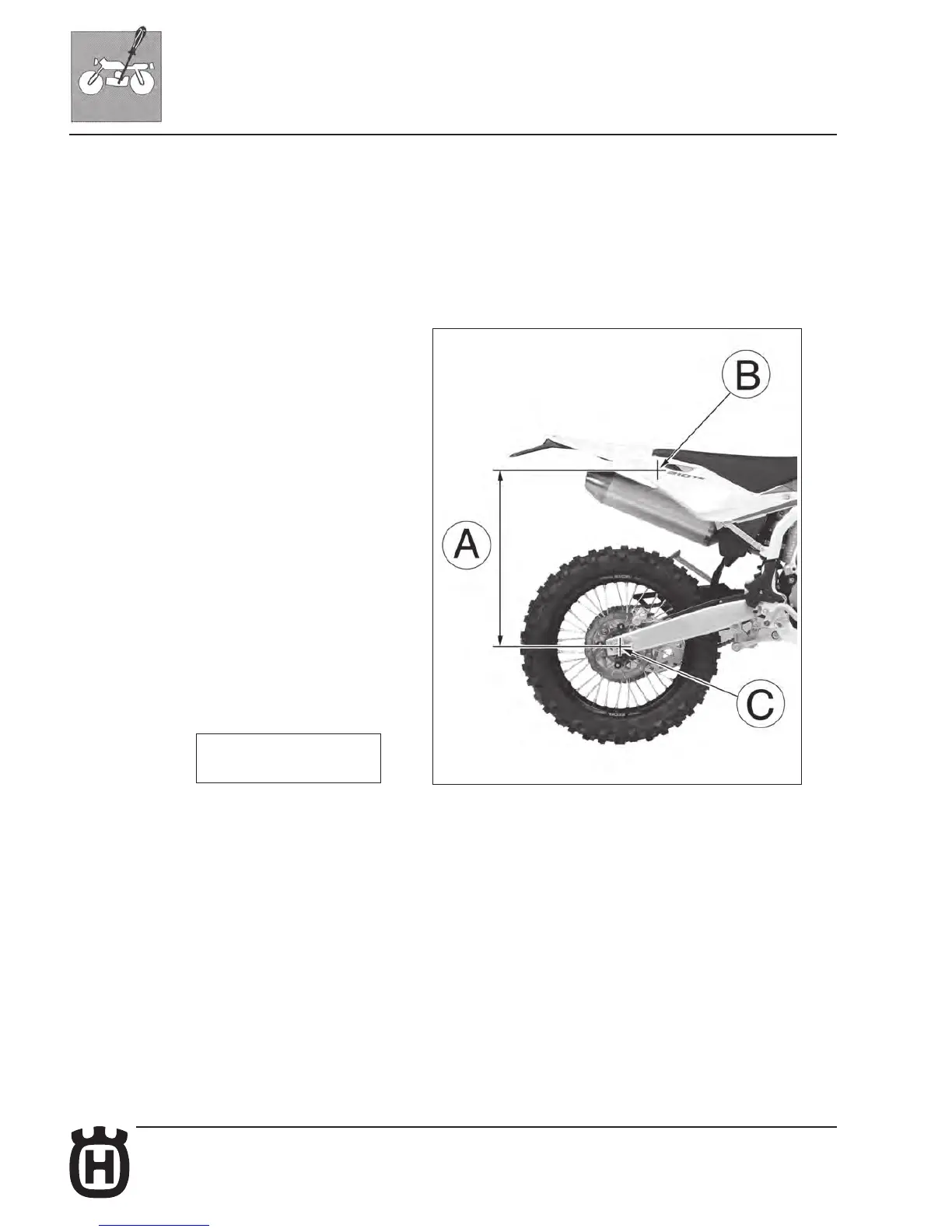

B: axis of the panel screw
C: axis of rear wheel pin
Adjusting the shock absorber
The rear shock absorber must be adjusted according to the rider weight and track conditions.
Proceed as follows:
1. With motorcycle on the stand, measure distance (A).
2. Take the normal riding position on the motorcycle with all your riding apparel.
3. With somebody’s help, take the new distance (A).
4. The difference between these two measurements constitutes the “SAG” of the motorcycle’s rear end.
Suggested SAG: 4 in. with cold shock absorber. 3.7 in. with warmed up shock absorber.
5. To get the right SAG according to your weight, adjust the shock absorber spring preload (D.25).
