Husqvarna TE 310 - Adjustment of Front Brake Control Lever and Fluid Level Control (TE-TC- TXC-SMR)

D.12 Part. N. 8000 H1344 (10-2009)
SETTINGS AND ADJUSTMENTS

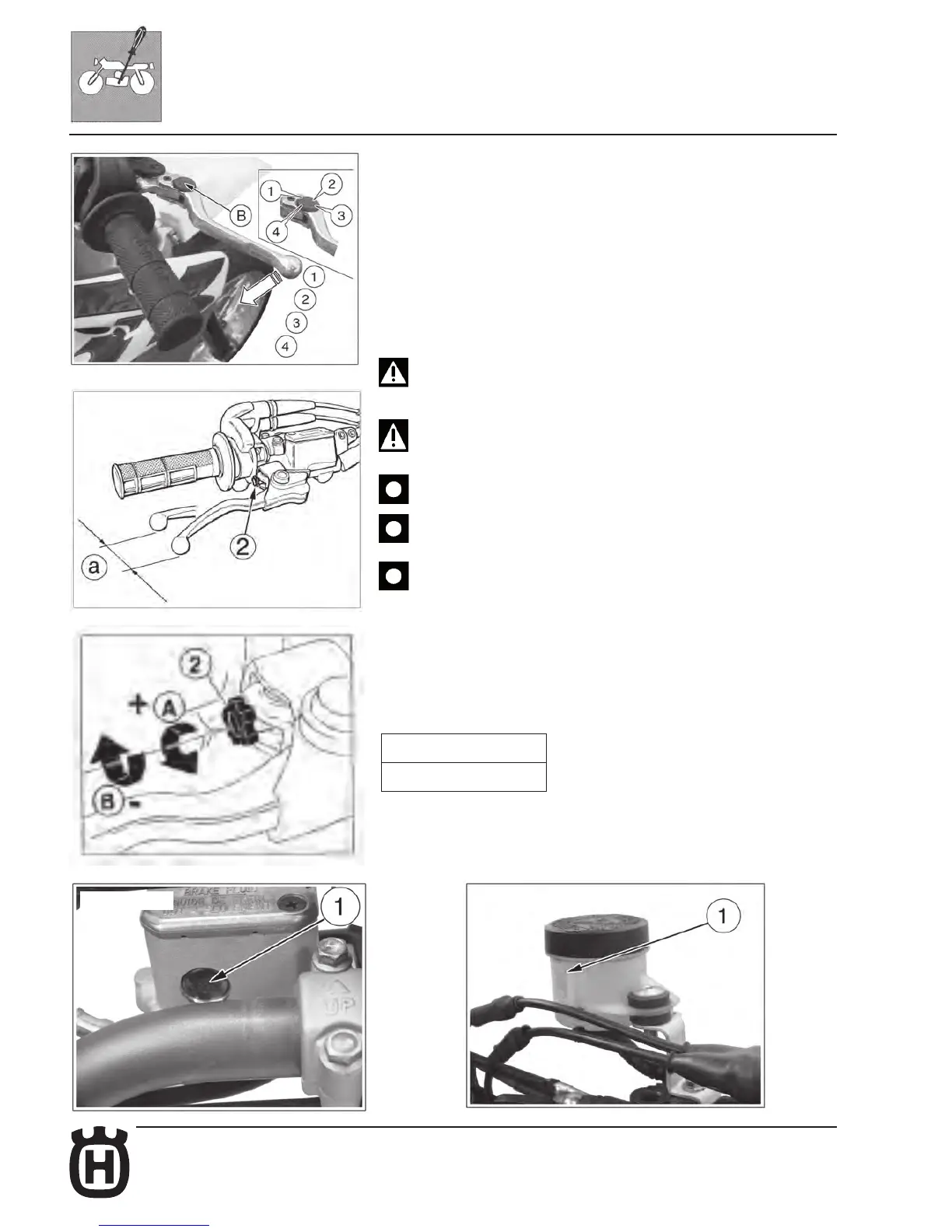

Adjustment of front brake control lever and uid level control (TE-TC-
TXC-SMR)
On the SMR model the lever position can be adjusted (4 adjustments) for any
driver hand size. To decrease the lever distance from the handle grip, turn the
adjuster (B) CLOCKWISE. To increase the lever distance from the handle grip,
turn the adjuster (B) COUNTERCLOCKWISE. On the TE, TC and TXC models
the adjuster (2), located on the control lever, allows adjusting of the free play (a).
Free play (a) must be at least 3 mm (0.1 in.). The level of the uid in pump
reservoir must never be below the minimum value (1), which can be checked
from the window on the rear side of the pump body (TE, TC and TXC). For SMR
model, check the level on the uid reservoir. A decrease of the fuel level will let
air into the sustem, hence an extension of the level stroke.
: If the brake lever feels mushy when it is applied, there may be air in
the brake lines or the brake may be defective: CHECK THE BRAKING
SYSTEM (page L.6 - L.7).
: If the lever free play is excessive, the brake action can decrease: CHECK
THE PADS THICKNESS (page L.5).
Do not spill brake uid on to any painted surface or lenses (e.g. headlamp).
Do not mix two brands of uid. Change the brake uid in the brake line if
you wish to switch to another uid brand.
Brake uid may cause irritation. Avoid contact with skin or eyes. In case
of contact, ush thoroughly with water and call a doctor if your eyes were
exposed.
SMR
TE-TC-TXC
TE-TC-TXC
SMR
A: to encrease clearance
B: to decrease clearance
TE-TC-TXC
