D.14 Part. N. 8000 H1344 (10-2009)

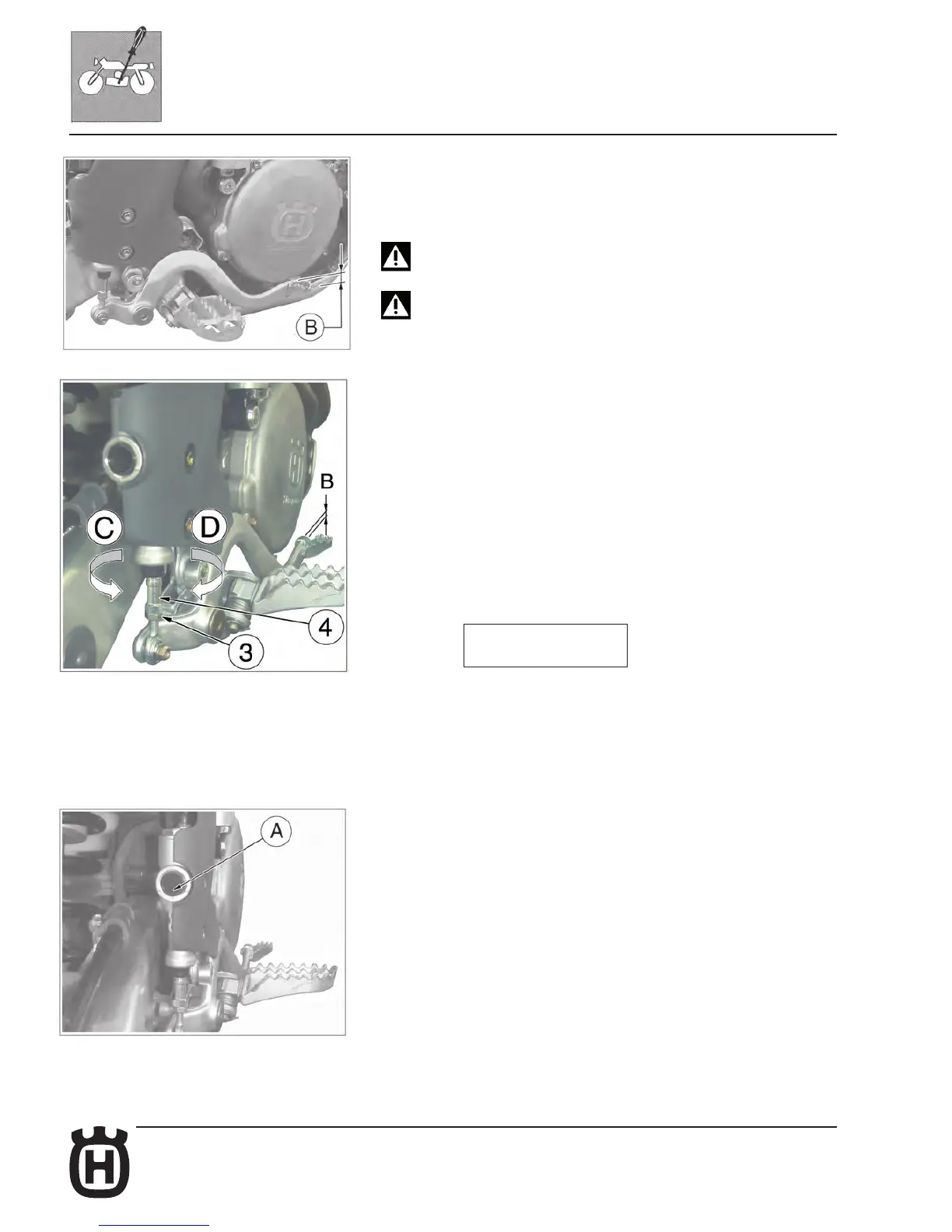

SETTINGS AND ADJUSTMENTS
C: to encrease clearance
D: to decrease clearance
Checking the rear brake uid level
The level (A) must be set between the pump tank notches of MIN and MAX.
Rear brake idle stroke adjustment
The rear brake foot pedal should have a (B) 5 mm (0.2 in.) idle stroke before
starting the true braking action. Should this not happen proceed as follows:
- loosen nut (3);
- operate the pump rod (4) to increase or decrease the idle stroke;
- tighten nut (3) at the end of the operation.
: When the idle stroke gures are not met, the brake pads will be subjected
to a fast wear that may bring to the TOTAL BRAKE INEFFICIENCY.
: If the brake pedal feels mushy when it is applied, there may be air in the
brake lines or the brake may be defective: CHECK THE BRAKING SYSTEM
(pag. L.8).
