Husqvarna TE 310 - Electronic Ignition System (Tc-Txc)

M.17Part. N. 8000 H1344 (10-2009)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT
**: ELECTRIC STARTER KIT
(TC excluded)
ELECTRONIC IGNITION SYSTEM (TC-TXC)
In the C.D.I. system the electrical energy generated by the alternator charges the condenser.
The energy is released in a single surge at the specied ignition timing and the current ows through the primary side of the ignition coil.
A high voltage is induced in the secondary windings of the ignition coil, resulting a strong spark between the ignition spark plug gap.
The digital electronic ignition allows to change the timing curve according with the following items:
- ENGINE r.p.m.;
- CARBURETOR THROTTLE VALVE POSITION SENSOR;
- ENGAGED GEAR.
This system allows to optimize the engine performances in every condition of employment. In case of throttle valve or transmission
gear failure, the ignition is able to allow the use of the motorcycle however.

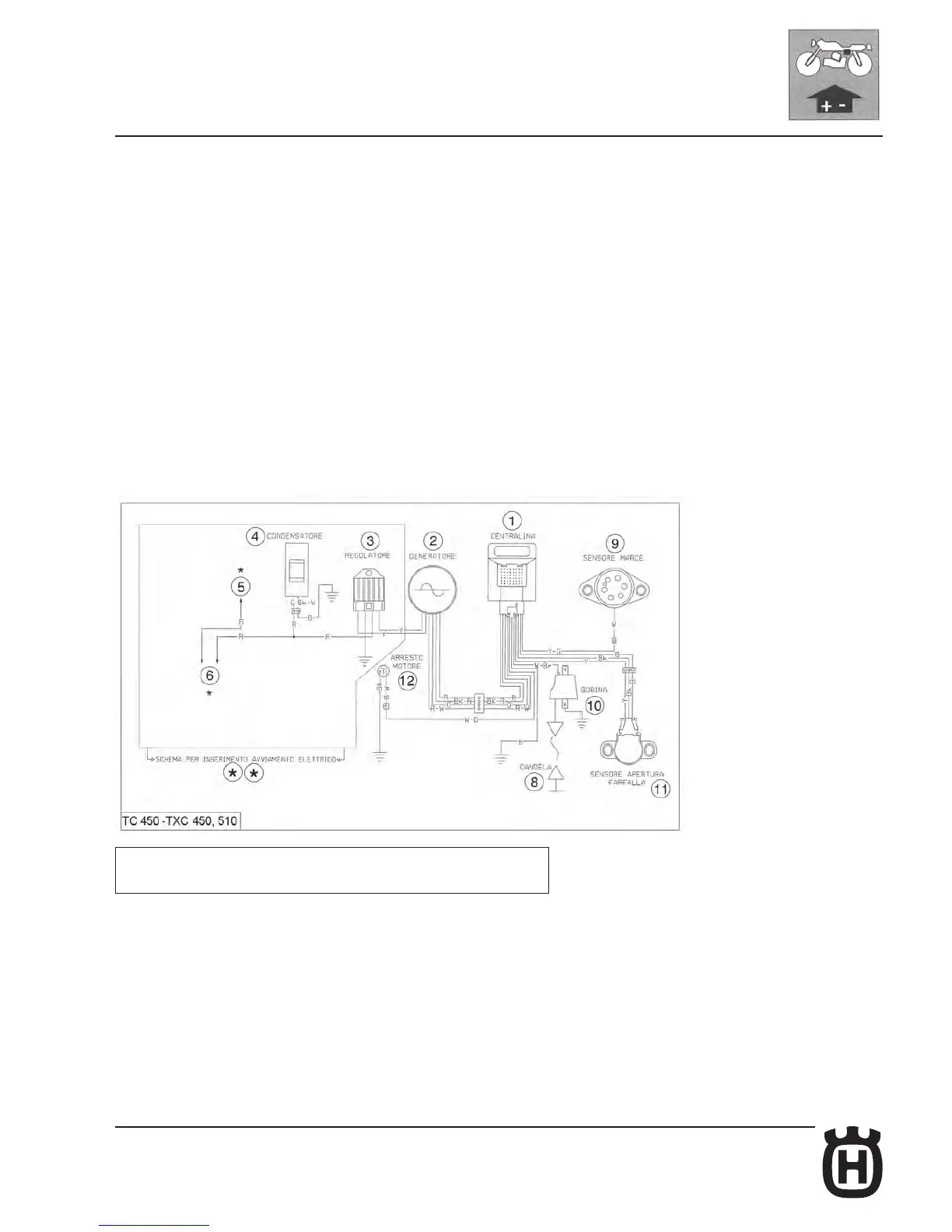

The electronic ignition system consists of:
- Electronic power unit (1);
- Alternator (2);
- Voltage regulator-rectier (3; TXC);
- Condenser (4; TXC);
- Spark plug (8);
- Gear shift position sensor GPS (9);
- Ignition coil (10);
- Carburetor throttle position sensor TPS (11);
- Engine stop switch (12).
For the key to electrical cables and components, see page M.3.
