SETTINGS AND ADJUSTMENTS

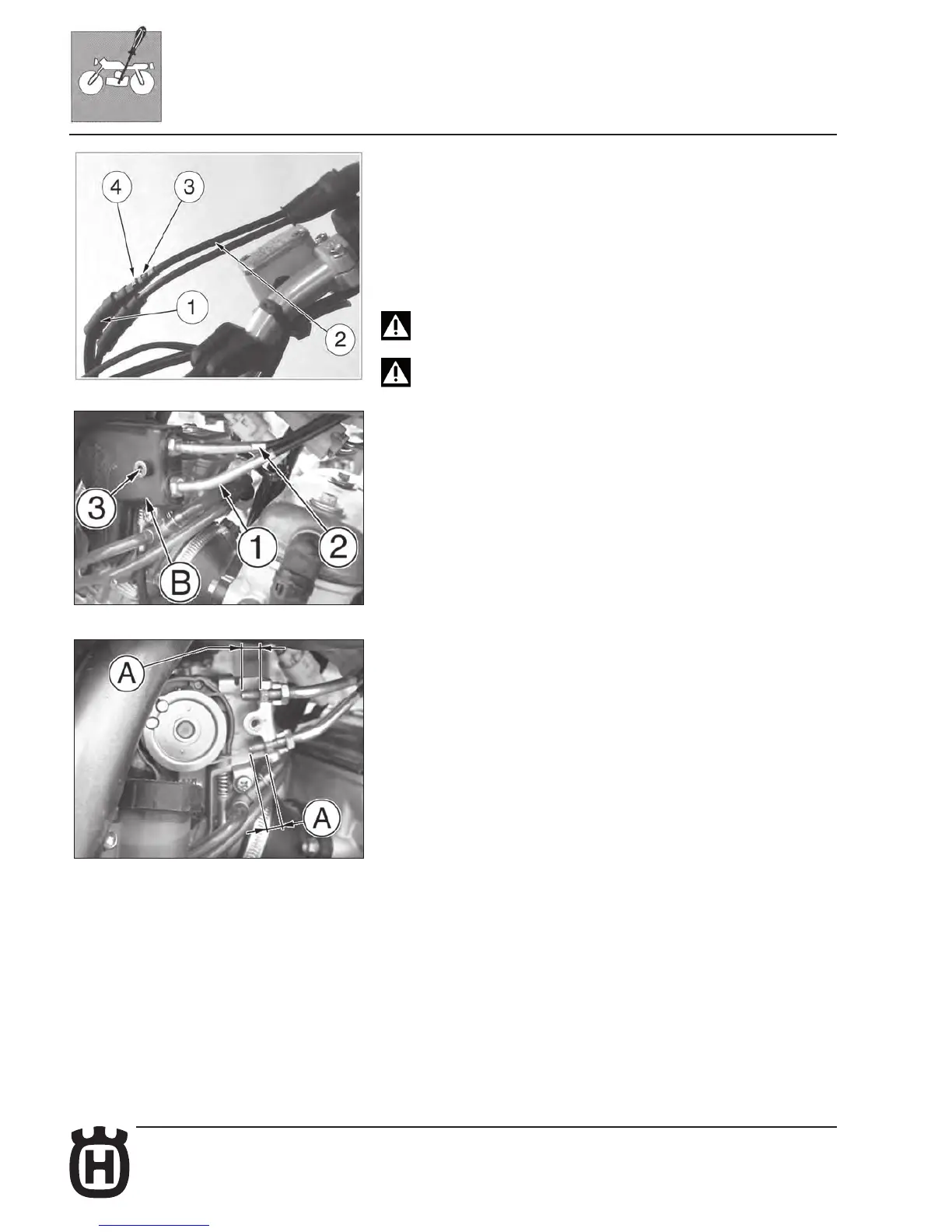

Throttle cable adjustment
To check the correct adjustment of the throttle operate as follows:
- remove the upper rubber cap (1);
- by moving cable (2) back and forth check for 2 mm (0.08 in.) clearance;
- should the clearance be incorrect, unblock the counter ring-nut (3) and turn
the adjusting screw (4) (by unscrewing it, the clearance is reduced, while by
screwing screw (4) it is increased);
- tighten the counter ring-nut again (3).
: Operation with damaged throttle cable could result in an unsafe riding
condition
: Exhaust gas contains poisonous carbon monoxide gas. Never run the
engine in a closed area or in a conned area.
In case of throttle control cables (1) and (2) replacement it is necessary to respect,
during reassembly, the measure Á (10mm/0.4 in.), as shown in the picture. Then
reassemble guard cover (B) using screw (3) and adjust throttle control cables
on handlebar. To replace throttle control cables, rst remove tha fuel tank as
shown on page E.23.
