Husqvarna TE 310 - Removal of Engine from Motorcycle

E.4 Part. N. 8000 H1344 (10-2009)
GENERAL OPERATIONS
Removal of engine from motorcycle

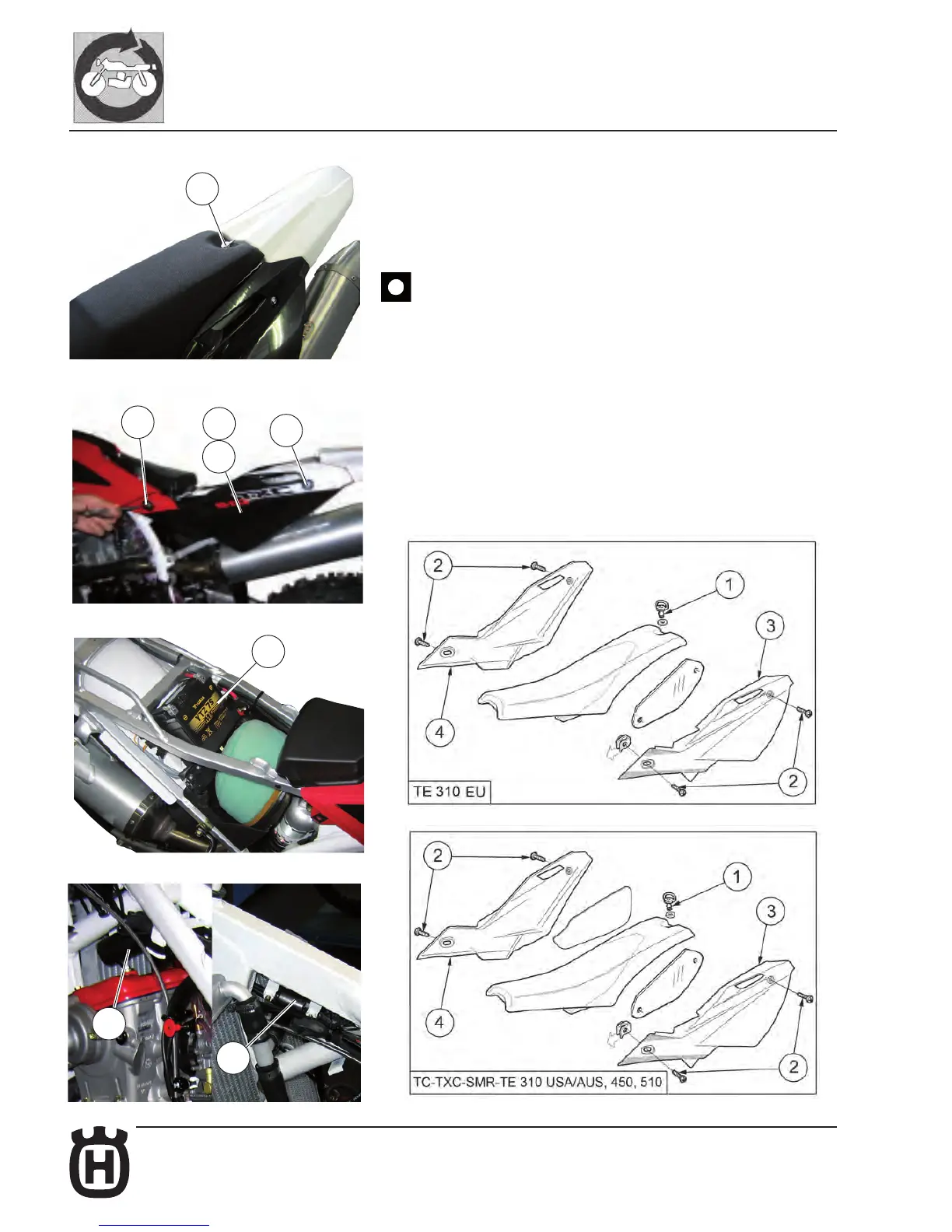

1) Pages E.4-E.5: turn counterclockwise the rear fastening pin (1) and remove
the saddle. Loosen the screws (2) and remove the side panels (3) and (4).
TE-SMR-TXC: rst remove the BLACK negative cable, then the RED positive
cable (when reassembling, rst connect the RED positive cable, then the BLACK
negative cable); release the elastic (5) and remove the battery (6) from its housing.
TXC: After battery removal, push ONCE THE ENGINE START BUTTON in order
to discharge the condenser (7) fastened near the H.T. coil (8).
: After battery disassembly, DO NOT remove the condenser from the
frame: in case of engine starting in this condition, the voltage regu-
lator will be damaged.
