GENERAL OPERATIONS

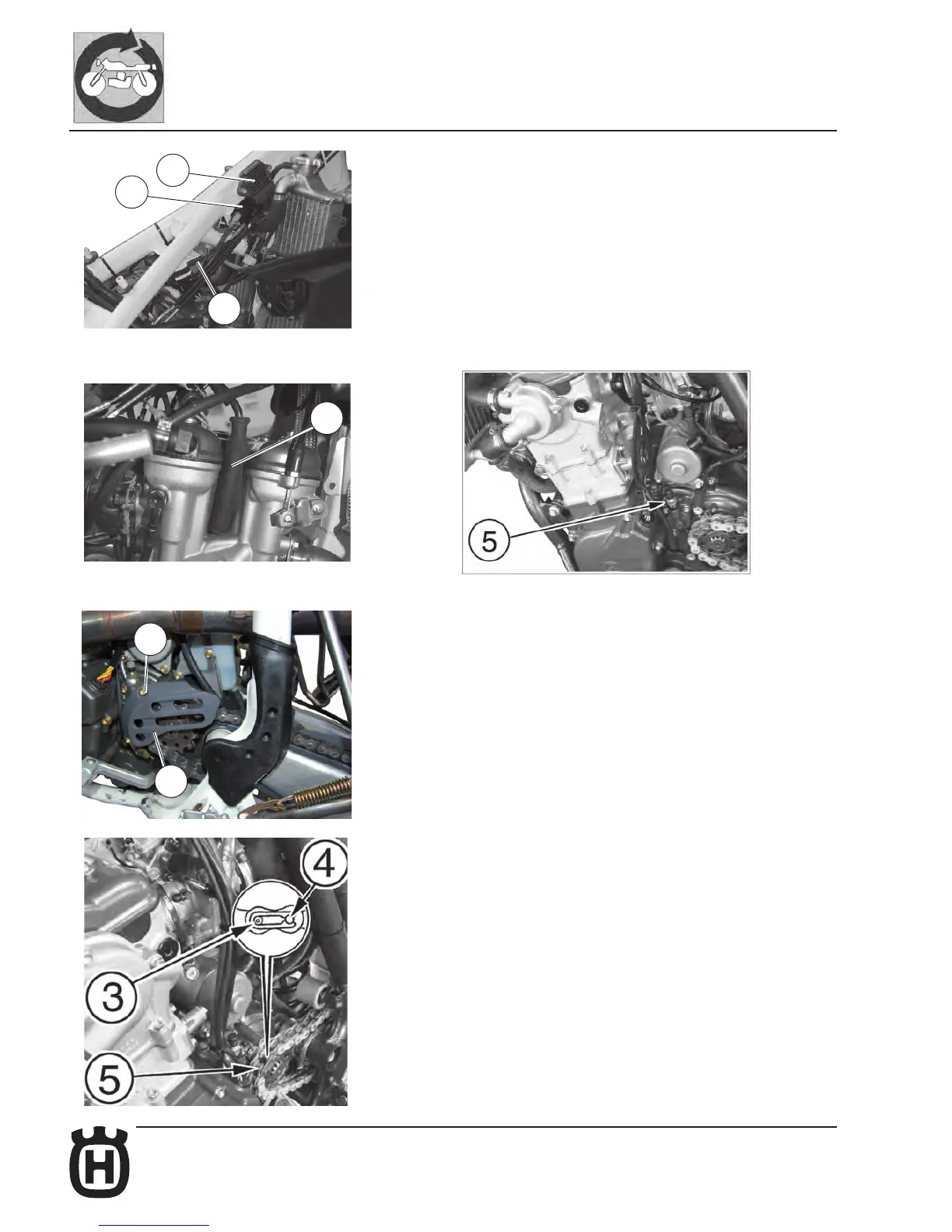

Removal of electronic power unit CDI, ignition coil, voltage regulator and
clutch hose
Remove: saddle, battery, side panels and fuel tank as shown on pages E.15,
E.16, E.23.
Remove the connector from electronic power unit CDI (1) and the electronic
power unit complete with elastic holder from the frame. Remove the cap (2) from
the spark plug. Detach the voltage regulator electrical (3) connection from the
main wiring harness, the screw and voltage regulator.
Remove the fastening screw and the ignition coil (4).
Unscrew the clutch hose union (5) on the L.H. side of the engine. Drain the
uid from the hose. When reassembling, bleed the clutch system as shown on
page P.7.
2
1
3
4
Removal of secondary drive chain
To remove the transmission chain (without O-Rings type and with O-Rings type),
proceed as follows:
Remove: screws (1), transmission sprocket guard (2), clip (3), master link (4)
and transmission chain (5).
2
1
