SETTINGS AND ADJUSTMENTS
Part. N. 8000 H1344 (10-2009) D.11

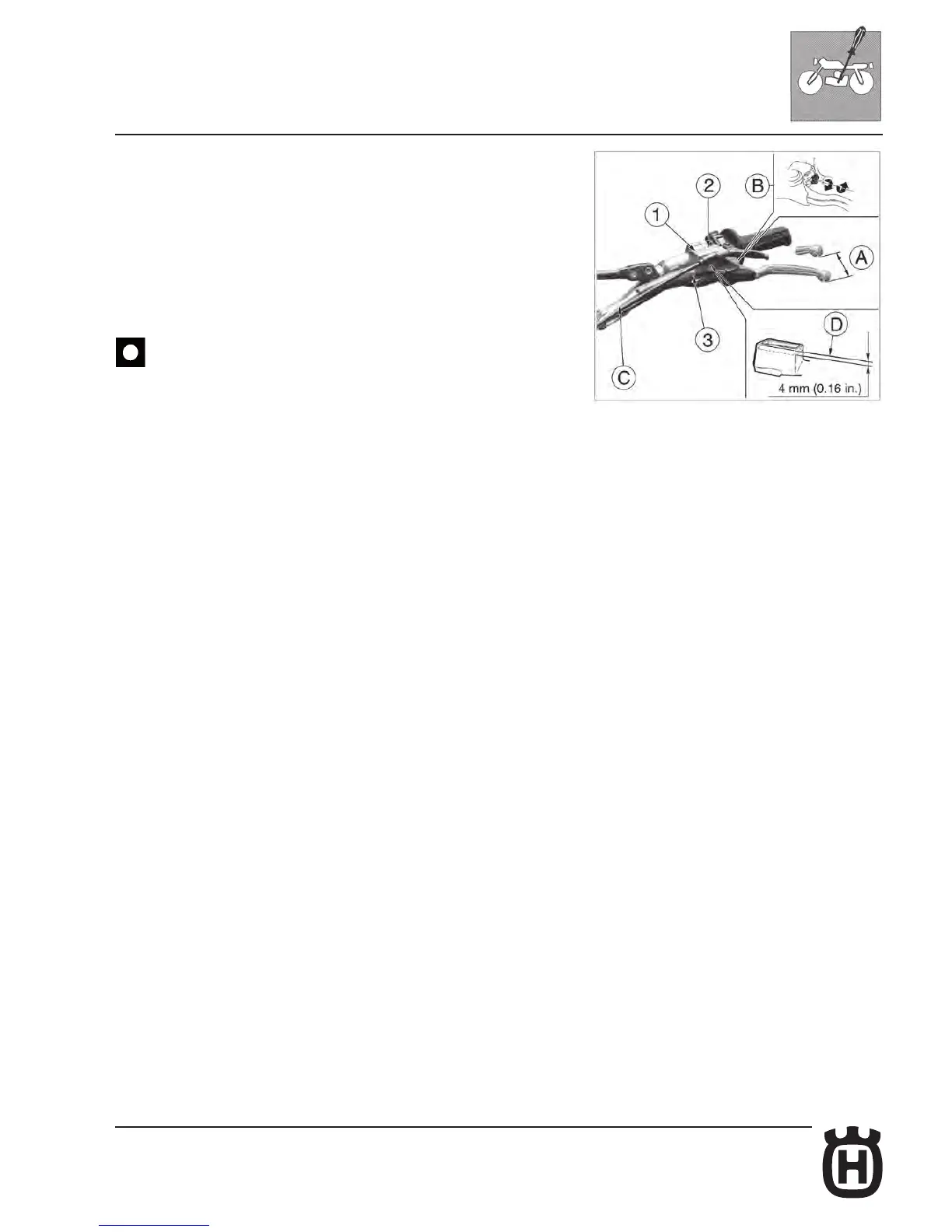

Adjustment of the control lever and check of the clutch uid level
Free play (A) must be at least 3 mm (0.1 in.).
The lever position can be adjusted for any driver hand size. To decrease the
lever distance from the handle grip, rotate the adjuster (B) CLOCKWISE. To
increase the lever distance from the handle grip, rotate the adjuster (B) COUN-
TERCLOCKWISE. To check the uid level, proceed as follows:
- remove screws (1), cover (2) and rubber pump diaphragm on the handlebar
clutch control;
- by keeping the master cylinder (3) in horizontal position, check the uid level
is NOT BELOW 4 mm (0.16 in.) from the upper surface (D) of the pump body;
- if necessary, add uid until the correct level is reached (see page A.9: TABLE
FOR LUBRICATION and SUPPLIES for the uid type)
: NEVER use brake uid.
Reassembly the removed parts using the reverse procedure.
Periodically check the connecting hose (see “Periodical maintenance card”): if
the hose (C) is bent or cracked, replace it.
