F.4 Part. N. 8000 H1344 (10-2009)

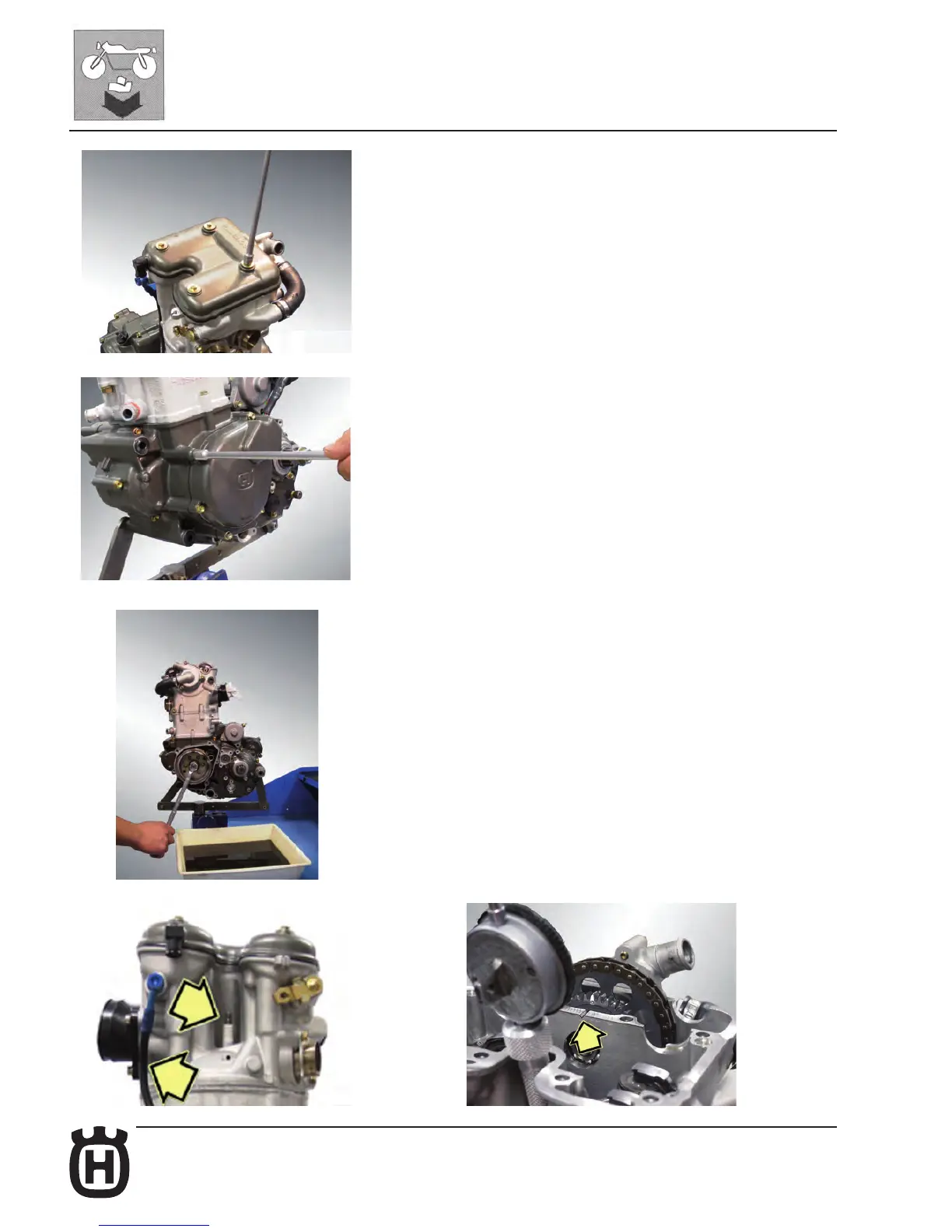

ENGINE DISASSEMBLY
Cylinder head cover disassembly
Remove the four fastening screws (8 mm wrench) and the cylinder head cover
together with the relative gasket.
Camshaft disassembly
Remove the six fastening screws (8 mm wrench) and the alternator cover. Us-
ing a 17mm wrench, position the piston at T.D.C. at the end of the compression
stroke (in this condition, the mark on the cylinder head is aligned with the two
marks on the idle gear of the camshafts, as shown in the gure on page F.7).
Remove the spark plug (16 mm wrench) and the lubrication hose from the cyl-
inder head (13 mm wrench).
