Husqvarna TE 310 - Removal of Side Panels

E.16 Part. N. 8000 H1344 (10-2009)
GENERAL OPERATIONS

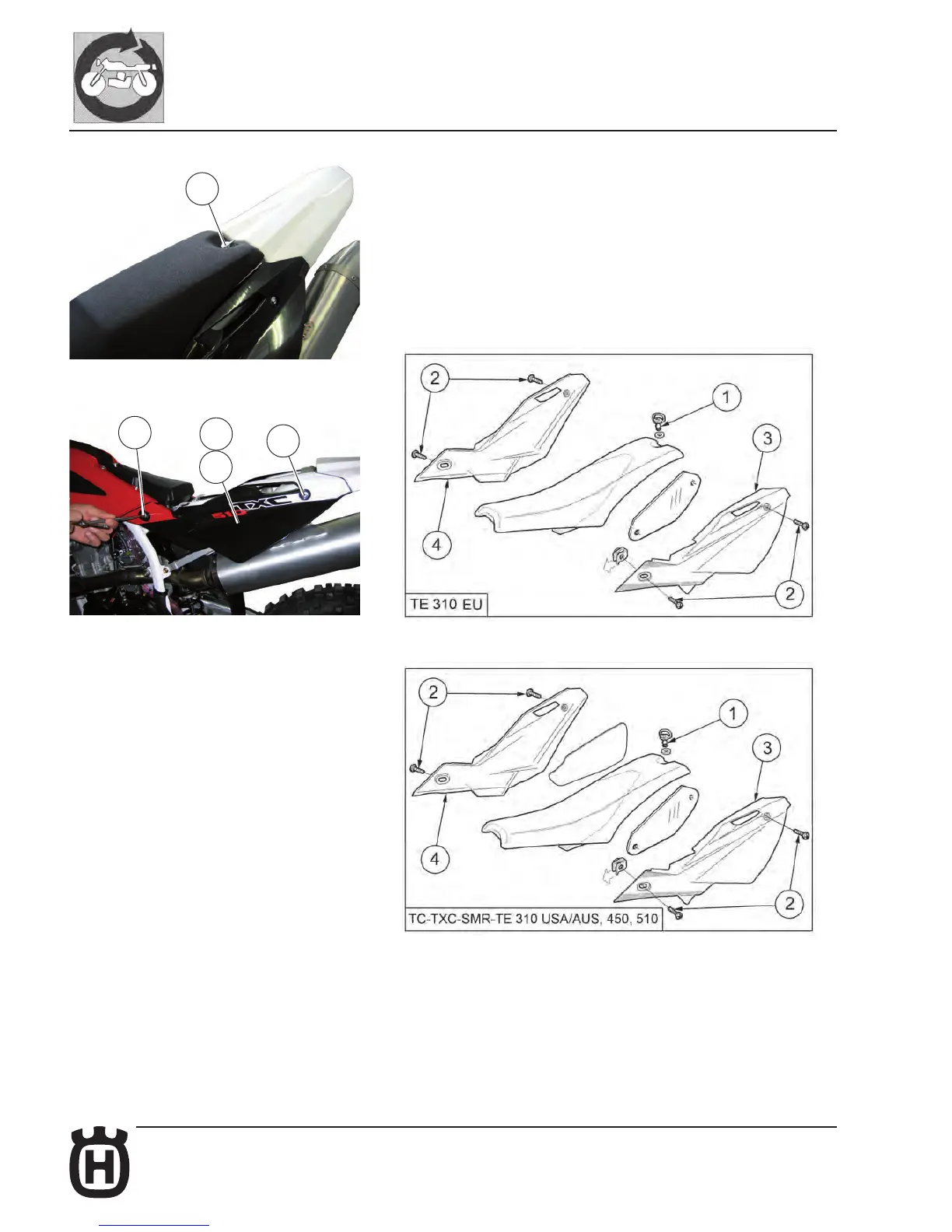

Removal of side panels
Turn rear pin (A) counterclockwise and remove the saddle from the front fastening
screw. Loosen the screws (2) and remove the side panels (3) and (4).
1
2
2
3
4
