I.8
Part. N. 8000 H1344 (10-2009)
FRONT SUSPENSION
84
93 42
03 13
27
5
31
91 12 52 37 82382
9
21
33
33
07
14
17
43
63
01
73
34
54
64

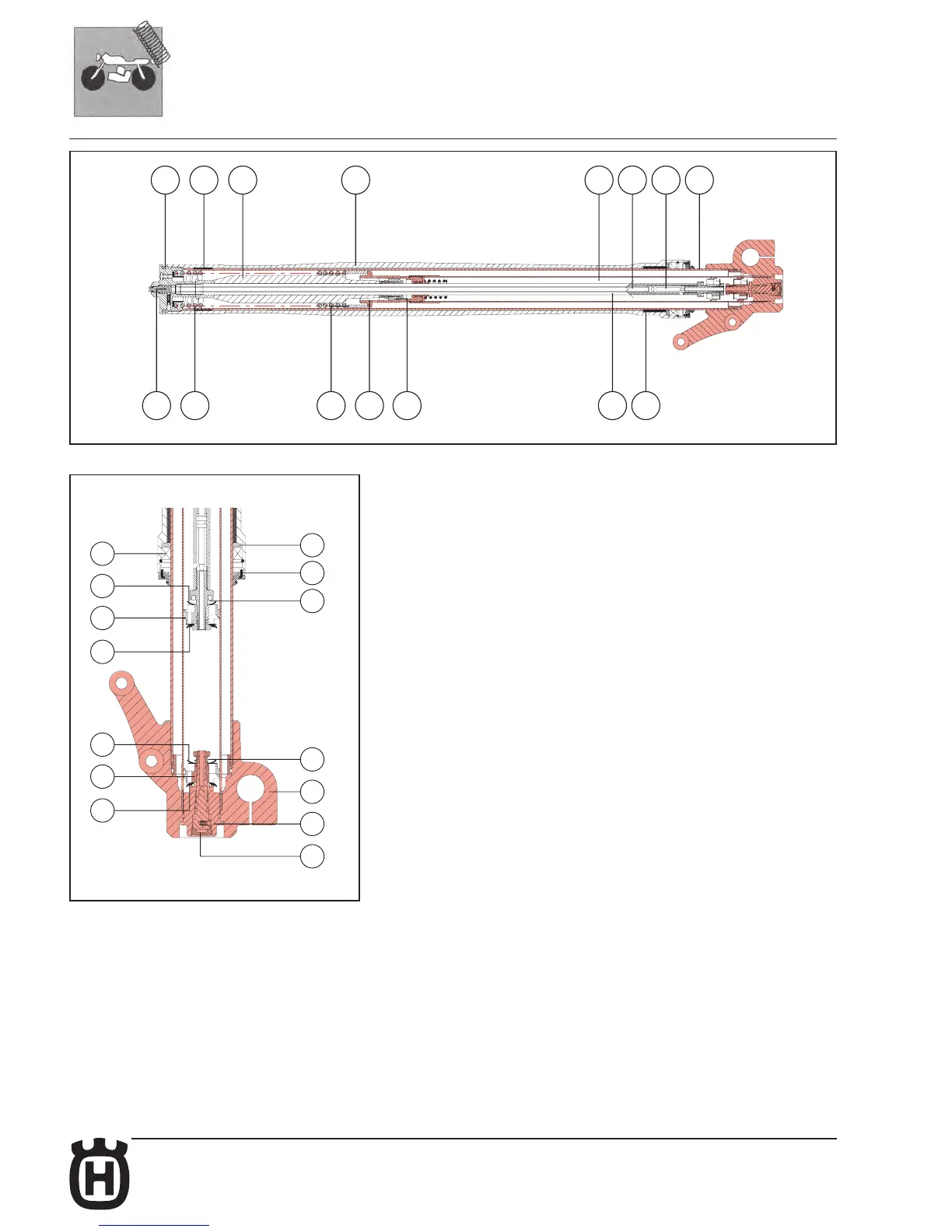

COMPONENTS OF THE FORK
The fork is based on a multivalve damping system that is exactly the same on
both fork’s legs. Each fork’s leg is therefore a complete suspension system which
you must refer to when adjusting any part of the fork.
5) Stanchi on tube
8) Lower sliding bushing
9) Spri ng cup
10) Oil seal
12) Dust seal
13) Outer slider
19) Compression adjustment screw
21) Spri ng
24) Spri ng gui de
25) Pre- load tube
28) Foot buffer
30) Cartridge body
31) Inner rod
32) Pumping element rod
33) Washers recall spring
34) Rebound piston washer
36) Pumping element piston
37) Rebound damping piston washers stack
39) Upper sliding bushing
41) Bottom valve
43) Compression valve washer
45) Bottom valve piston
46) Compression damping piston washers’ stack
48) Cap
70) Wheel axle clamp
71) Rebound adjustment screw
72) Conic pin
73) Body cap

moving parts holding the wheel are indicated with different colours (background
-
ground).
