Y.12 Part. N. 8000 H1344 (10-2009)
FRAME AND WHEELS

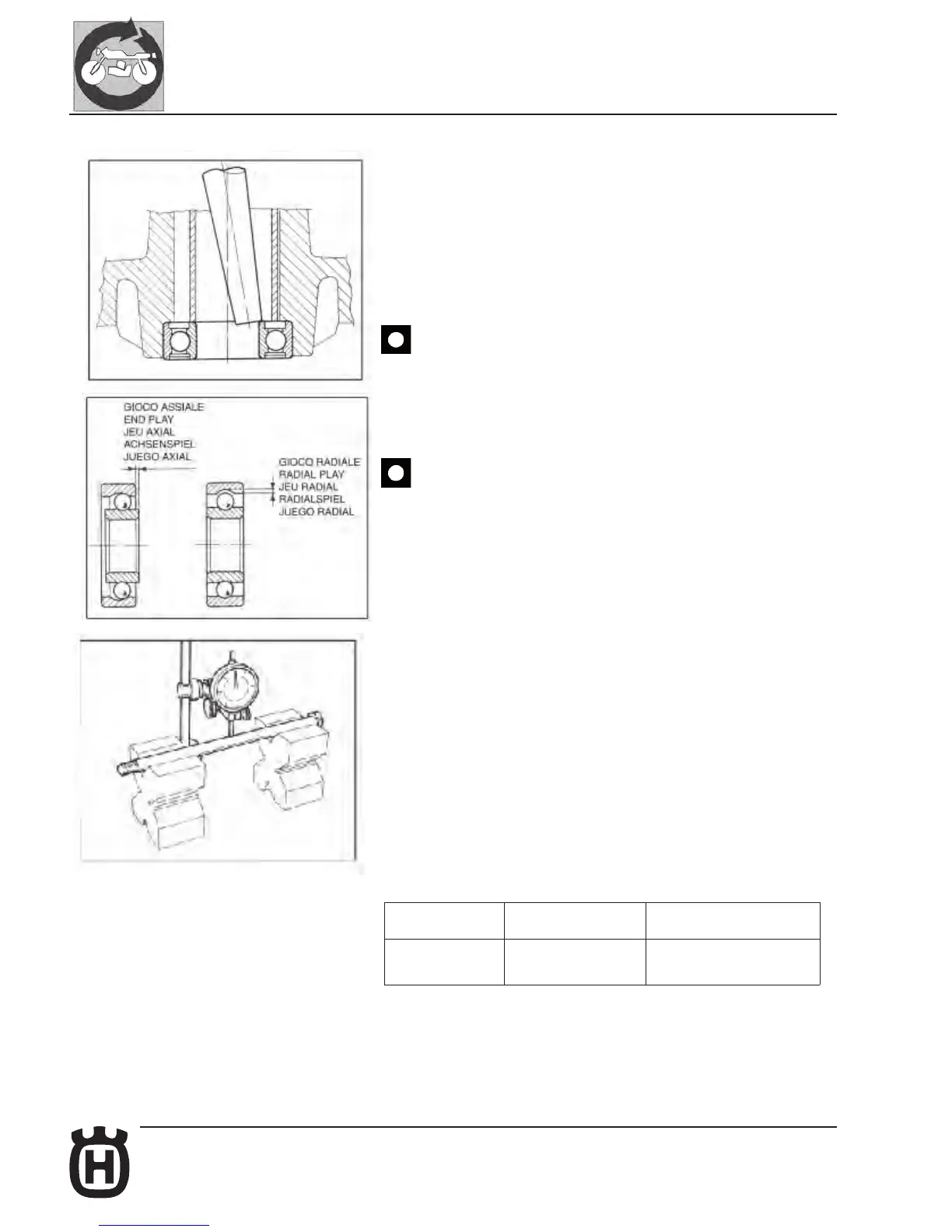

Wheels overhauling
Check the wear state of the hub bearings. In case of excessive clearance (radial
and axial), operate as follows:
- lay the hub on a at holder with hole, allowing for the passage of the removed
bearing;
- use a hammer and a pin to exercise pressure only on the bearing inner ring
(see gure) up to its removal;
- continuosly change the pressure position so to get an extraction as regular
as possible;
- extract the spacer and perform the same operations for the other bearing.
Removed bearings must not be reassembled.
When reassembling new bearings checl the seat. It must be clean and without
grooves or scatches. Grease the seat before tting the bearing, then put it in the
seat using a proper tubolar pad, exercising pressure only on the bearing outer
ring uo to complete inserting. Place the spacer and the proceed with the placing
of the other bearing. Check their alignement by placing the wheel pin.
After every intervention on wheels their balancing is advisable.
Wheel axle bending
If the bending gure is over the allowable max limit, straighten or replace the axle.
If the axle can not the straightened within the prescribed limits, replace it.
Axle out of track 100 mm
Wheel axle Standard Max wear limit
Wheel axle less than 0.004 in. 0,2 mm (0.0078 in.)
