Y.11Part. N. 8000 H1344 (10-2009)
FRAME AND WHEELS

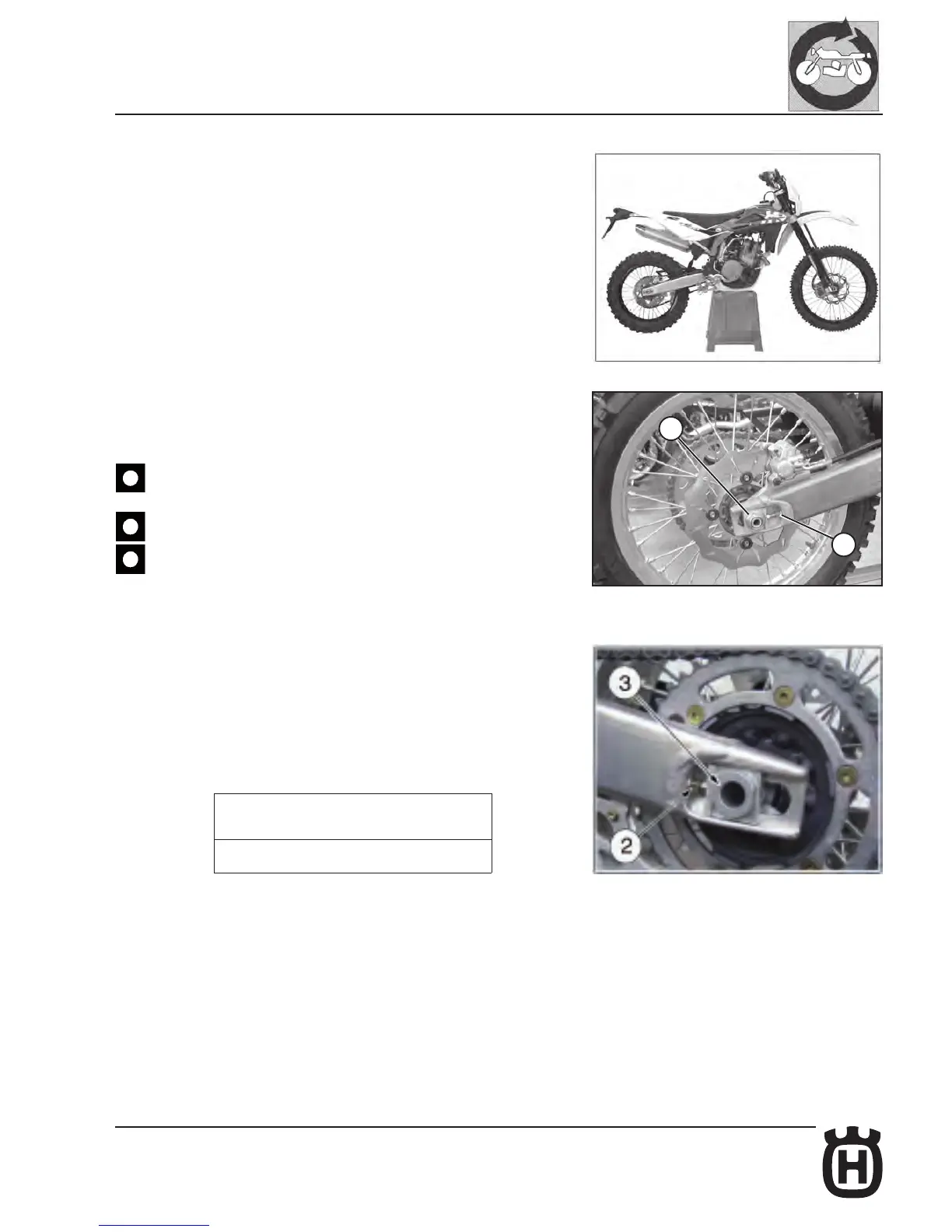

Removing the rear wheel
Set a stand or a block under the engine and see that the rear wheel is lifted
from the ground.
Unscrew the nut (1) of the wheel pin (3) and extract it. It is not necessary to un-
loose the chain adjusters (2); in this way, the chain tension will remain unchanged
after the reassembly. Extract the complete rear wheel, by taking care of the
spacers located at the hub sides. To reassemble, reverse the above procedure
remembering to insert the disc into the caliper.
: Do not operate the rear brake pedal when the wheel has been removed;
this causes the caliper piston to move outwards.
: After removal, lay down the wheel with brake disc on top.
: After reassembly, pump the brake control pedal until the pads are against
the brake disc.
TIGHTENING TORQUES
1: 142.1 Nm/ 14.5 Kgm/ 104.8 ft-lb
1
2
