GENERAL OPERATIONS
Removal of rear frame with fender (TE- SMR: with tail light) and air lter
box assy.
Remove the saddle and disconnect the battery (A) from the electric system as
shown on page E.14.
Remove the side panels as shown on page E.15.
Remove the fuel tank as shown on page E.23.

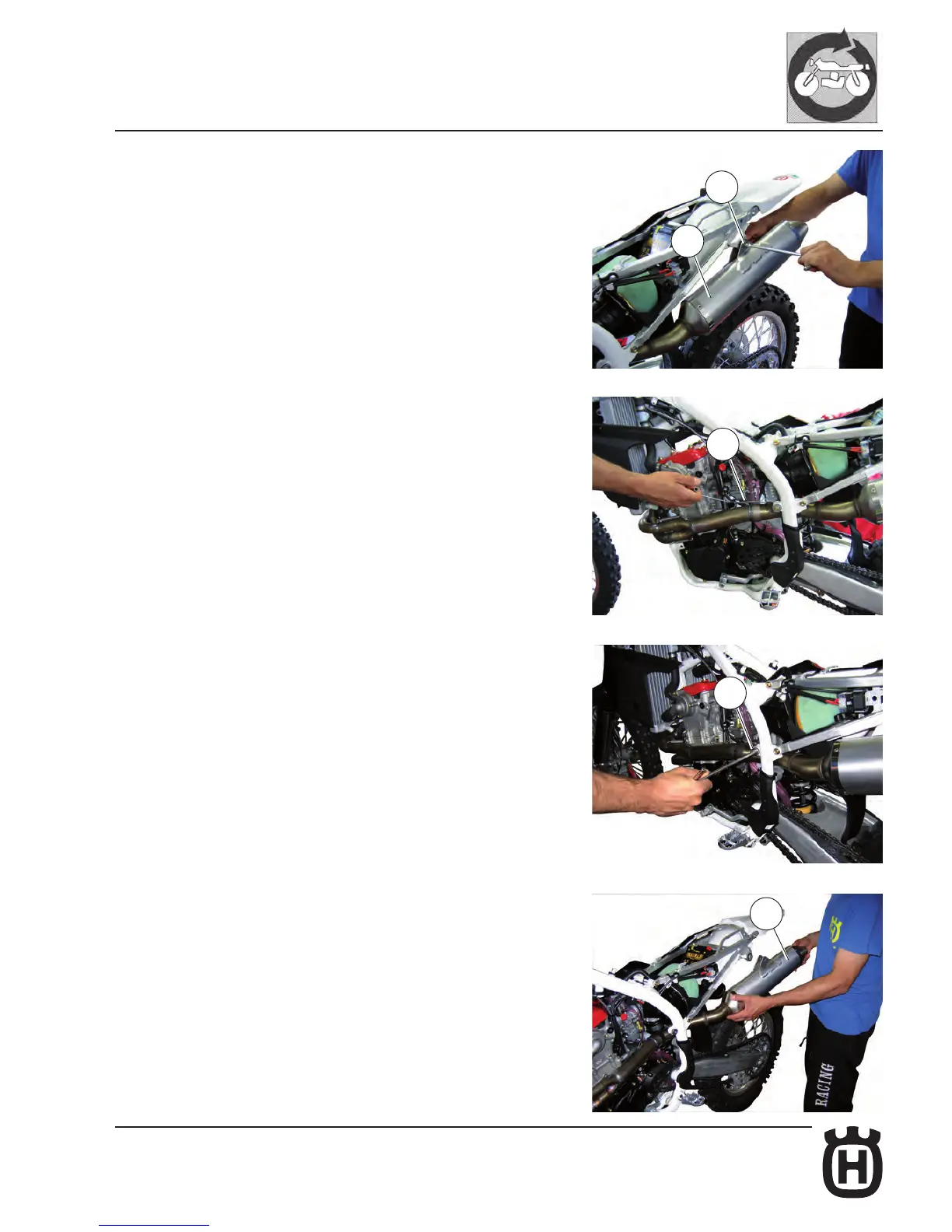

TE-TC-TXC: use an 8 mm T-wrench and a 10 mm T-wrench inside to remove
the fastening screw (1) of silencers (4). Remove the spring (2) and use an 8 mm
T-wrench to remove also the screw (3); then extract the silencer (4).
1
4
2
3
4
