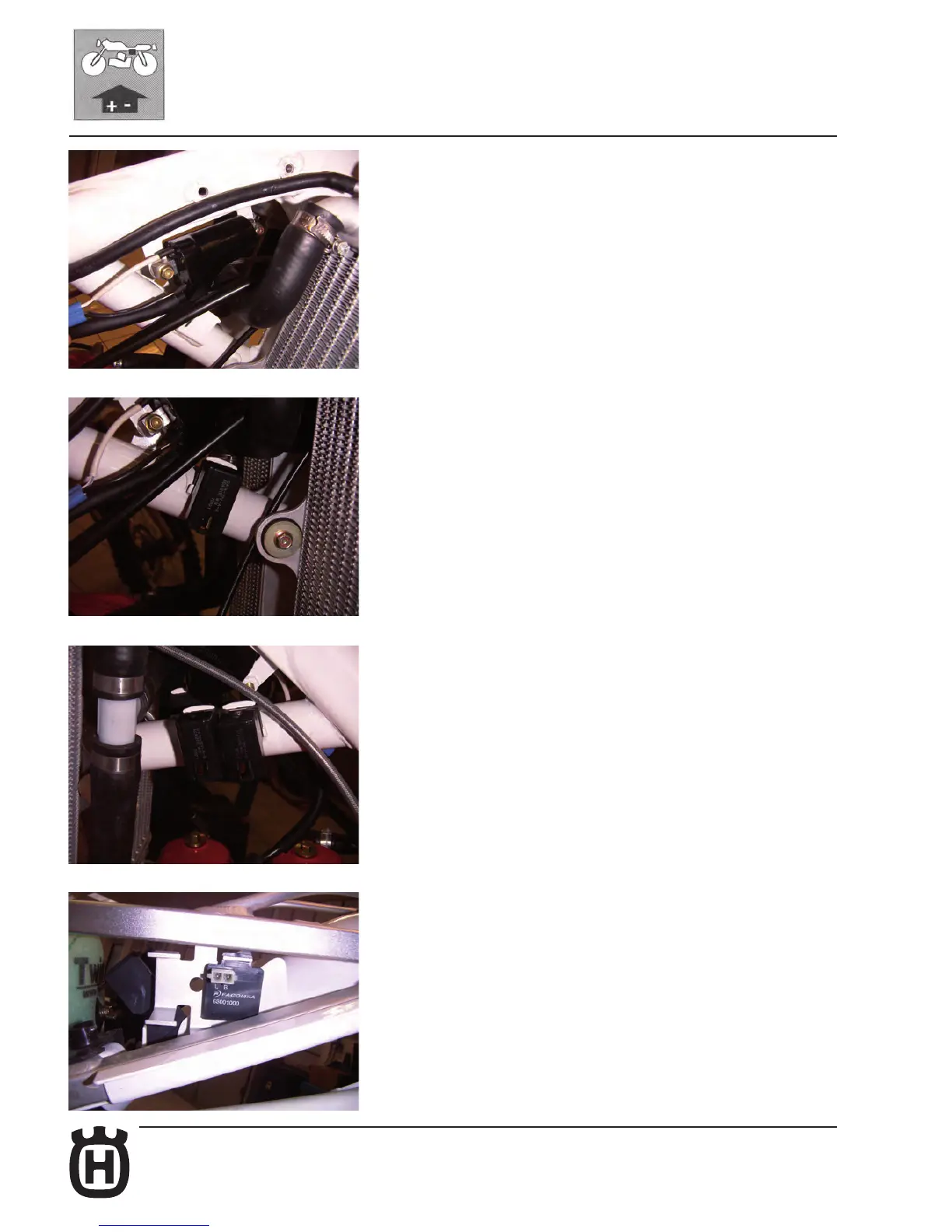

M.40 Part. N. 8000 H1344 (10-2009)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT
CABLE RUNWAY AND ASSEMBLING INSTRUCTIONS
FOR THE "TE/SMR" ELECTRIC PARTS
• H.T. coil positioning
Connect the H.T. colil as shown in the picture.
• Relay positioning (3 parts)
R.S. relay.
• Turn indicators ash device positioning
Turn indicators ash device.
L.S. relay.
