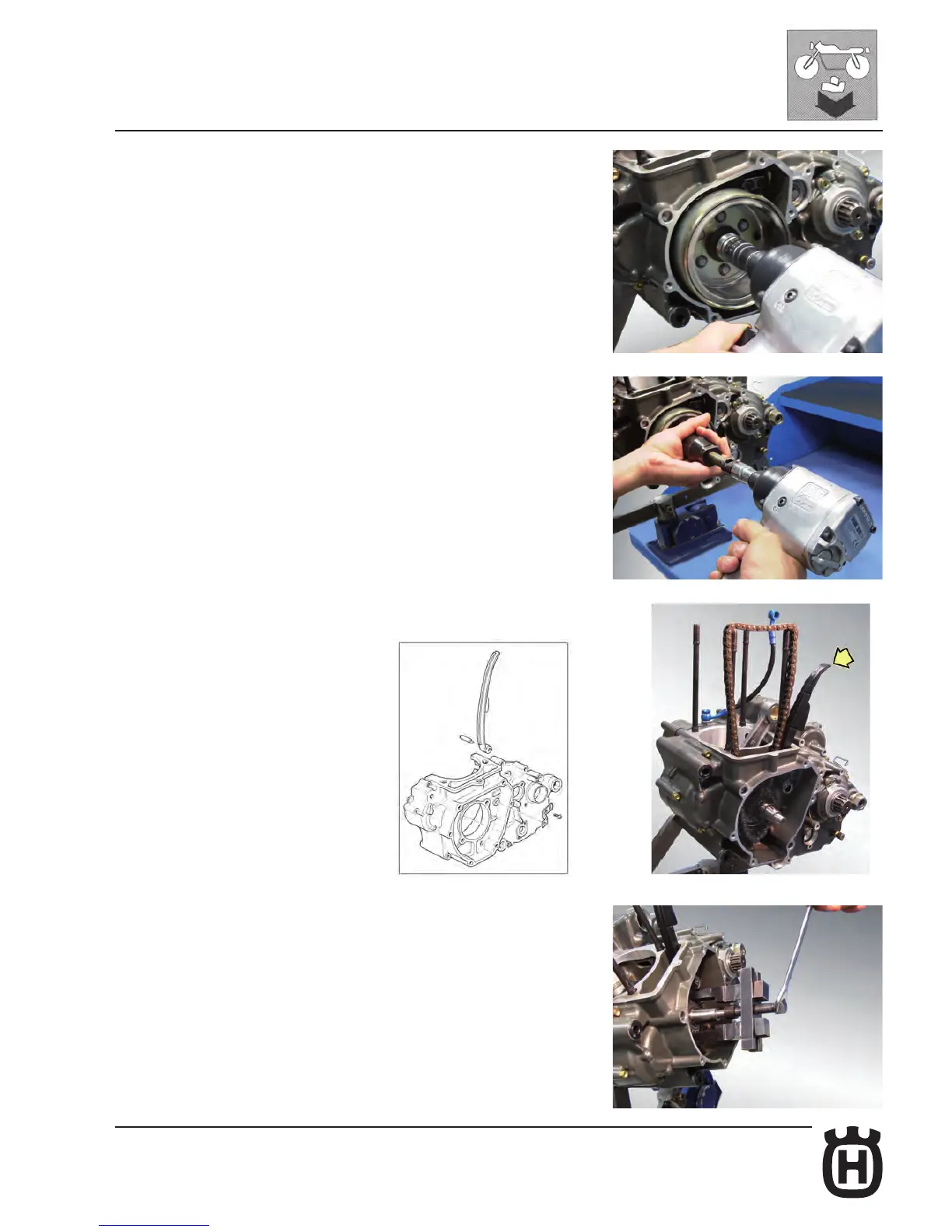

ENGINE DISASSEMBLY
Flywheel disassembly
Maintain the rotor immobilized and remove the rotor nut (17 mm wrench).
Remove the rotor using the puller (code no. 8000 A1559 for TC-TXC and
8000 B0144 for TE-SMR).
Remove the valve timing pinion using a puller.
If the chain slider is worn, remove the fastening screw then the chain slider in
order to replace it (Chain slider fastening screw 3 Nm/ 0,3 Kgm/ 2.1 ft/lb).
Remove the timing system chain.
