I.26
Part. N. 8000 H1344 (10-2009)
FRONT SUSPENSION

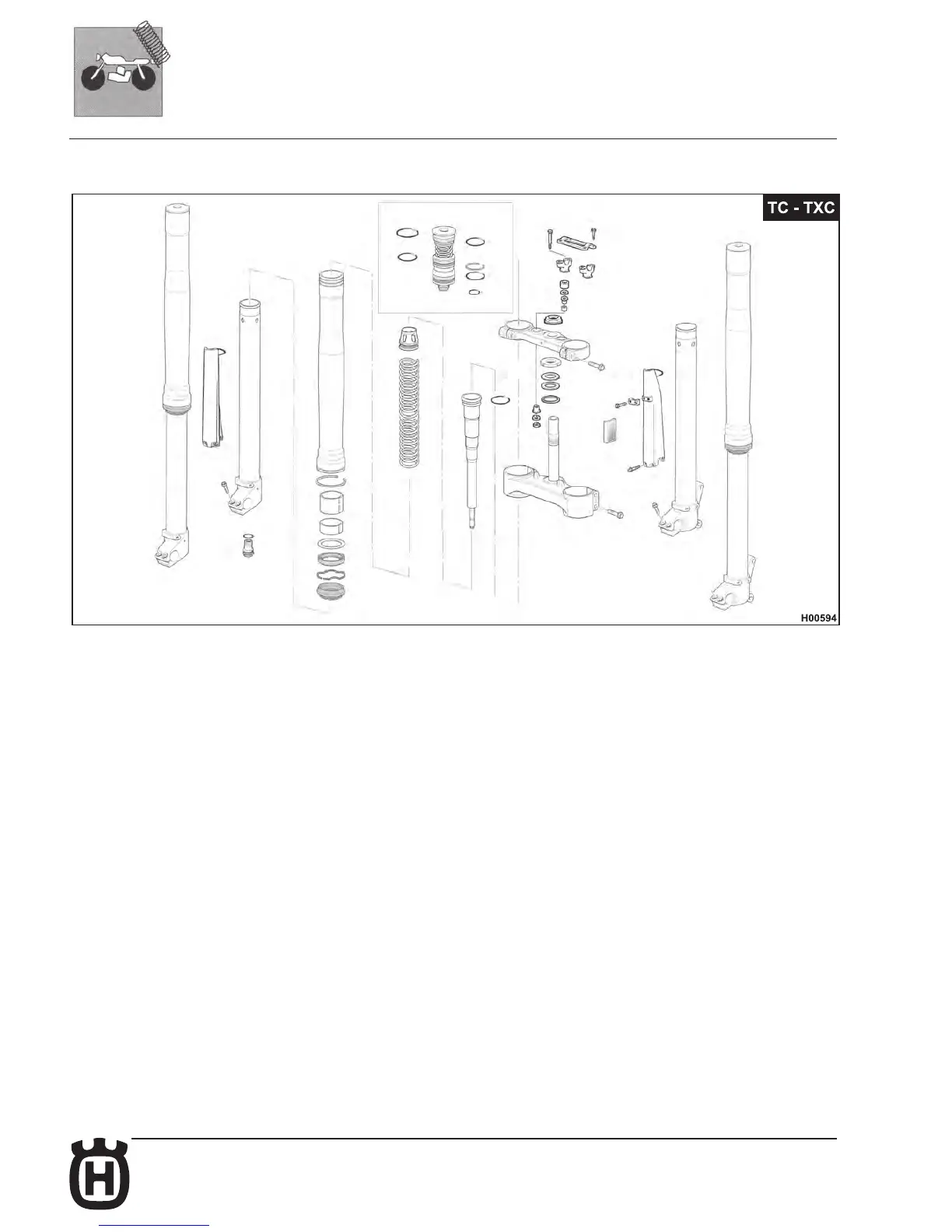

Front suspension (TC 450 - TXC 450/510)
The front suspension unit is a KAYABA telescopic hydraulic fork with advanced axle;the diameter of the stem is 48 mm . The ther-
mal excursion of the wheel on the legs axis is 300 mm.
