J.17
Part. N. 8000 H1344 (10-2009)

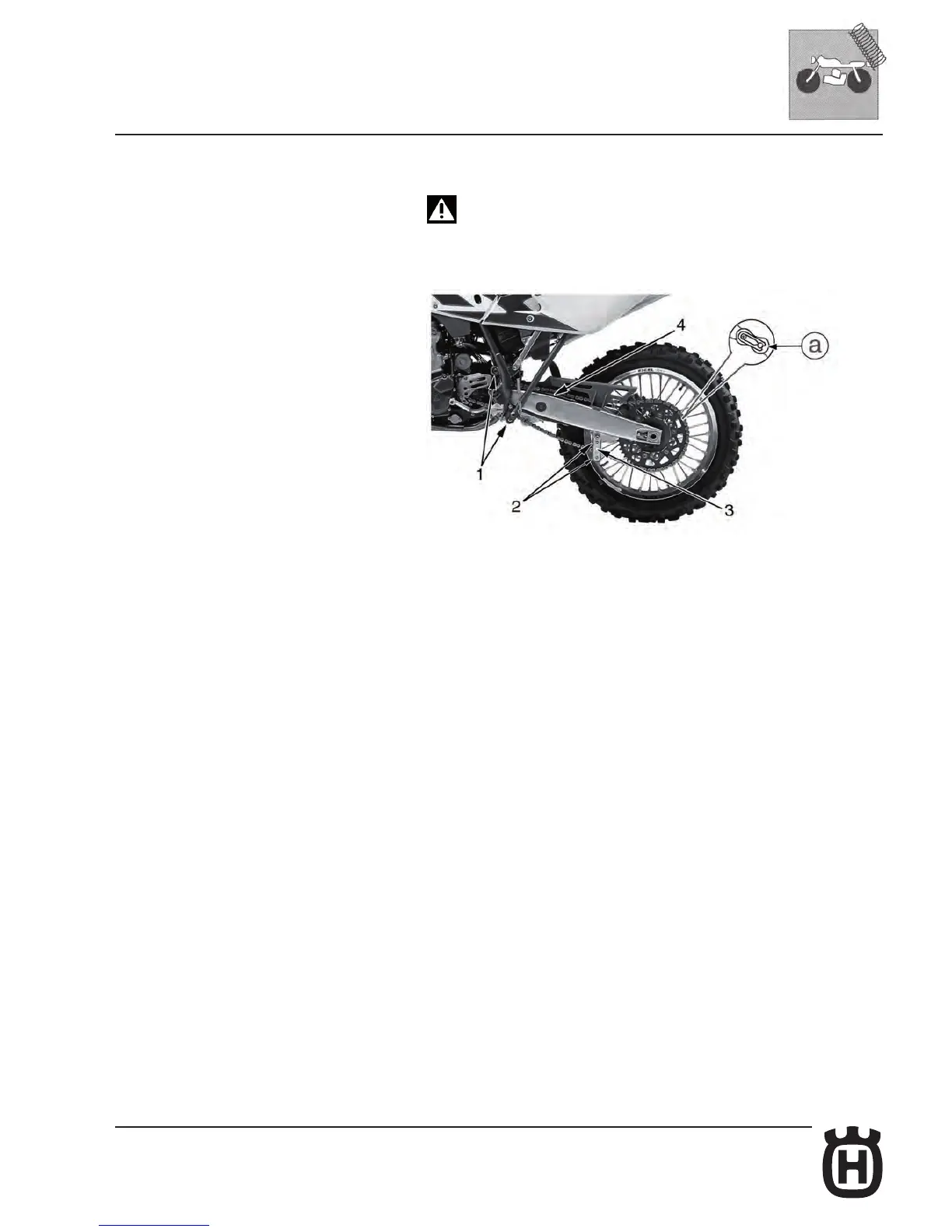

REAR SUSPENSION
1- Chain tension roller
2- Chain driving roller
3- Chain guide
4- Chain slider
a- Joint spring
Chain tension rollers, chain driving roller, chain guide, chain runner
Check the wear of the above mentioned elements and replace them when
necessary.
: Check the chain guide alignement, and remember that a bent element
can cause a rapid wear of the chain. In this case, a chain eeting from the
sprocket may ensue.
