ENGINE REASSEMBLY

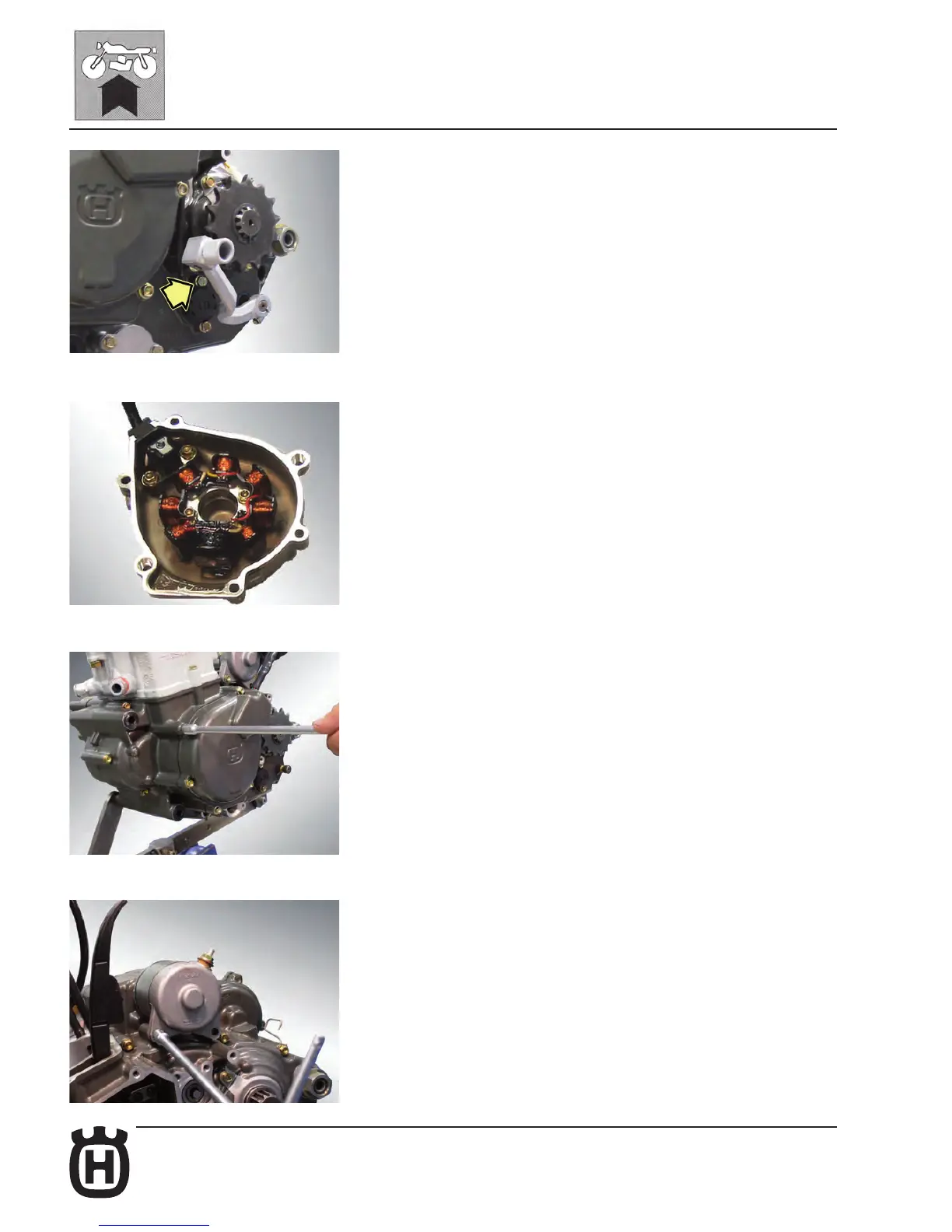

Fit a new O-ring and remount the neutral indicator locking the two fastening
screws (6 Nm-0,6 Kgm-4.3 ft/lb+LOCTITE 243).
Reassembly of ywheel cover
Mount the stator plate so its mark and stator cover mark are aligned and tighten
the two stator fastening screws (8 Nm-0,8 Kgm- 5.8 ft/lb+LOCTITE 272) for
TC-TXC and (6 Nm-0,6 Kgm- 4.3 ft/lb+LOCTITE 272) for TE-SMR. Fit the y
wheel grommet on the crankcase. Tighten the two pick-up fastening screws (6
Nm-0,6 Kgm- 4.3 ft/lb+LOCTITE 272). Mount the ywheel cover and tightenthe
six screws to 8 Nm-0,8 Kgm- 5.8 ft/lb.
Mount the electric starting motor (8 Nm-0,8 Kgm- 5.8 ft/lb).
