Husqvarna TE 310 - Adjusting the Front Fork

SETTINGS AND ADJUSTMENTS
Part. N. 8000 H1344 (10-2009) D.27
Adjusting the front fork (TE 310/EU, SMR 450, 510)

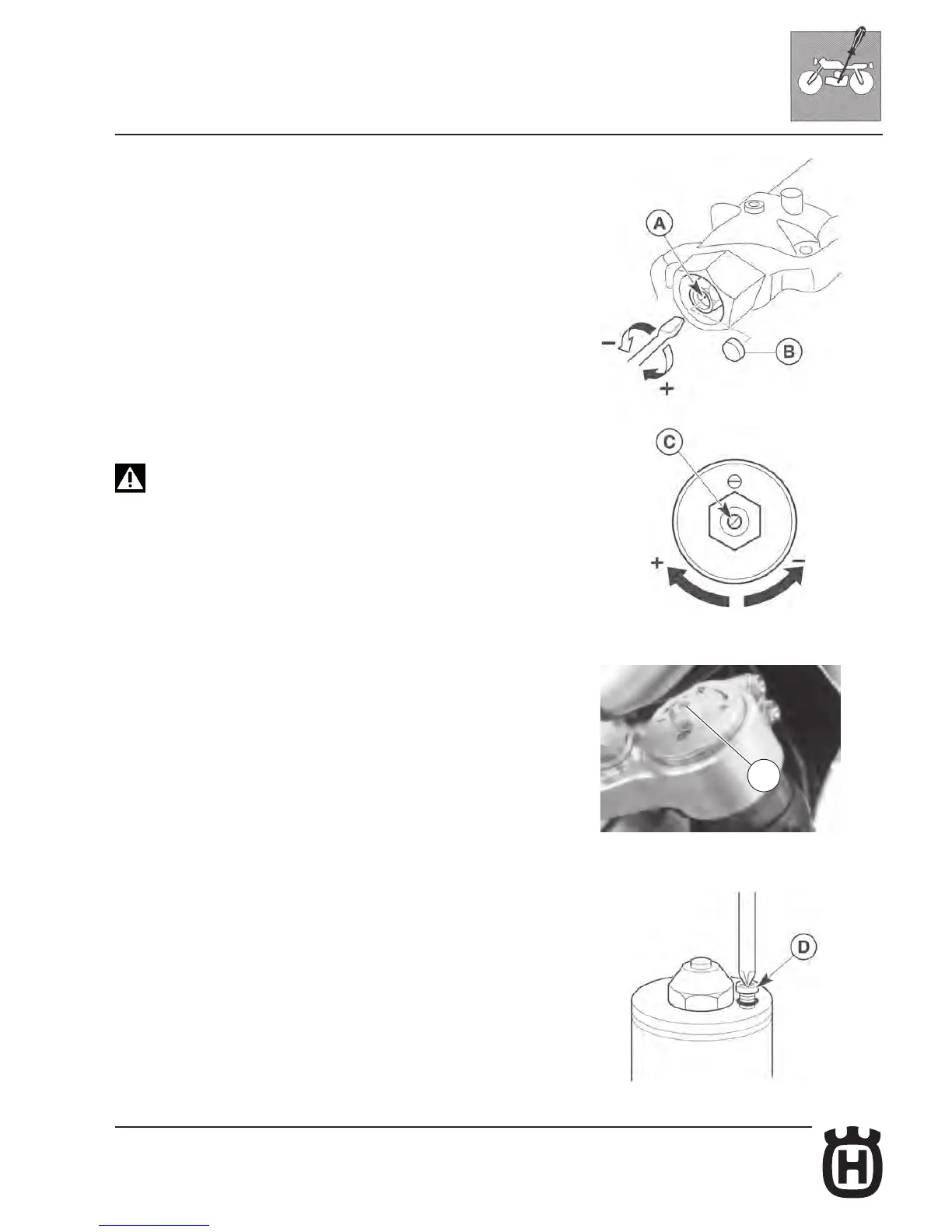

a) COMPRESSION (LOWER REGISTER)
Standard calibration: -12 clicks.
To reset the standard calibration, remove plug (B) and turn register (A) clockwise
until the position of fully closed is reached then, turn back by the mentioned clicks.
To obtain a smoother braking action, turn the register anticlockwise. Reverse the
operation in order to obtain a harder action.
b) EXTENSION (UPPER REGISTER)
Standard calibration: -12 clicks.
To reset standard calibration turn register (C) clockwise to reach the position
of fully closed; then, turn back by the mentioned clicks. To obtain a smoother
braking action, turn the register anticlockwise. Reverse the operation in order
to obtain a harder action.
c) AIR VENT (to carry out after each competition, or monthly).
TE-SMR: Set the motorcycle on its central stand, fully extend the fork and loosen
the valve (D). Tighten the valve after this operation.
TC-TXC: Set the motorcycle on its central stand, fully extend the fork, remove
the cap (E) and press the valve with pointed object. Reassemble the cap.
: WARNING: Never force the adjusting screws beyond the maximum open-
ing and closure positions.
C
b)
a)
