SETTINGS AND ADJUSTMENTS
Part. N. 8000 H1344 (10-2009) D.19
1
4
3
A

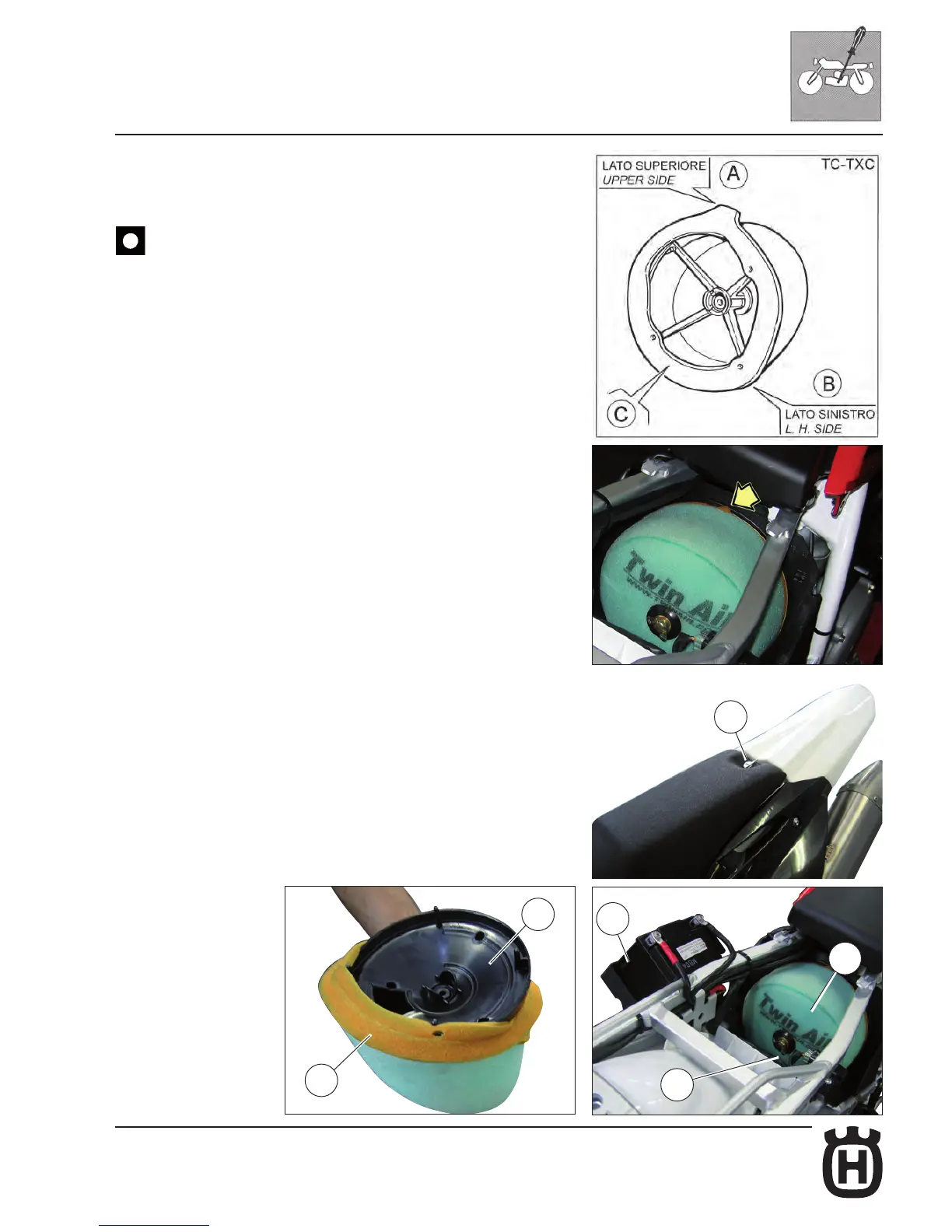

Air lter check (TE-SMR)
Turn rear pin (1) counterclockwise, remove it and release the saddle from the
front fastening screw.
Take out the battery (A) and place it sideways on the vehicle.
To gain access to the air lter, lift a little the electronic power unit (2). Remove
screw (3) and the lter (4). Separate lter (5) from the exhaust silencer (6).
ASSEMBLY
To ensure tight t, slightly (C) grease lter edge on side facing lter housing.
While re-inserting the lter into its housing, make surs that piece (A) is turned
upwards and edge (B) is on the left lower side of the lter case. Reassemble the
parts previously removed (battery: connect the positive cable rst).
: If the element assembly is not installed correctly, dirt and dust may enter
and the engine resulting in rapid wear of the piston rings and cylinder.
6
5
