ELECTRIC SYSTEM, DIGITAL INSTRUMENT

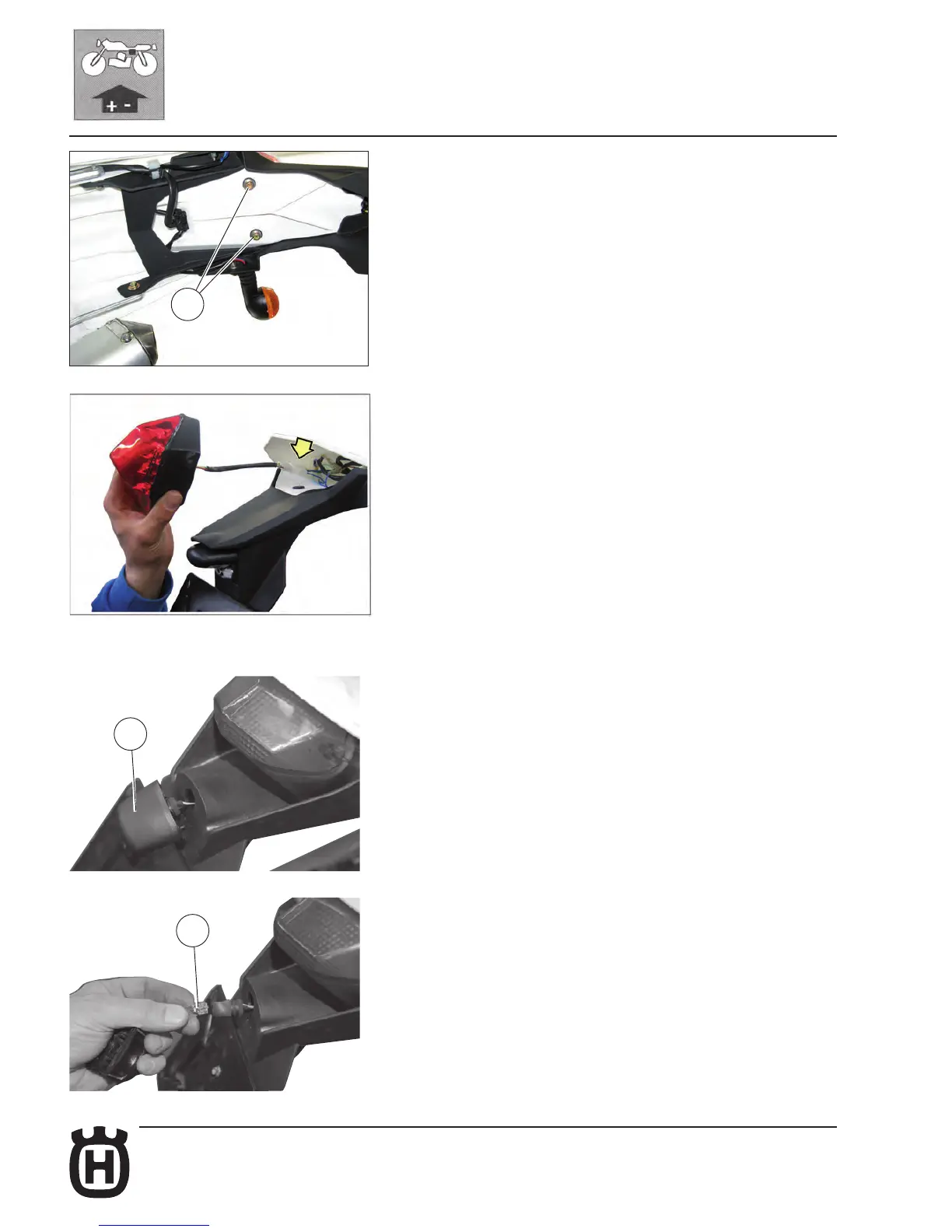

Replacing the licence plate light lamp
Remove the licence plate light support (4) by extracting it from the tail of the
motorbike.
Extract the lamp holder with the lamp from the support.
Turn the lamp (5) to remove it from the lamp holder.
After replacing the lamp, reassemble all the parts in the inverse order.
4
5
Rear tail light (TE 310 USA/AUS-TE450-510-SMR)
The rear tail light is LED type and can not be disassembled. To replace the
complete tail light remove the two xing screws (1) under the rear mudguard
and posteriore and pull off the wiring connector.
