SETTINGS AND ADJUSTMENTS
Part. N. 8000 H1344 (10-2009) D.13

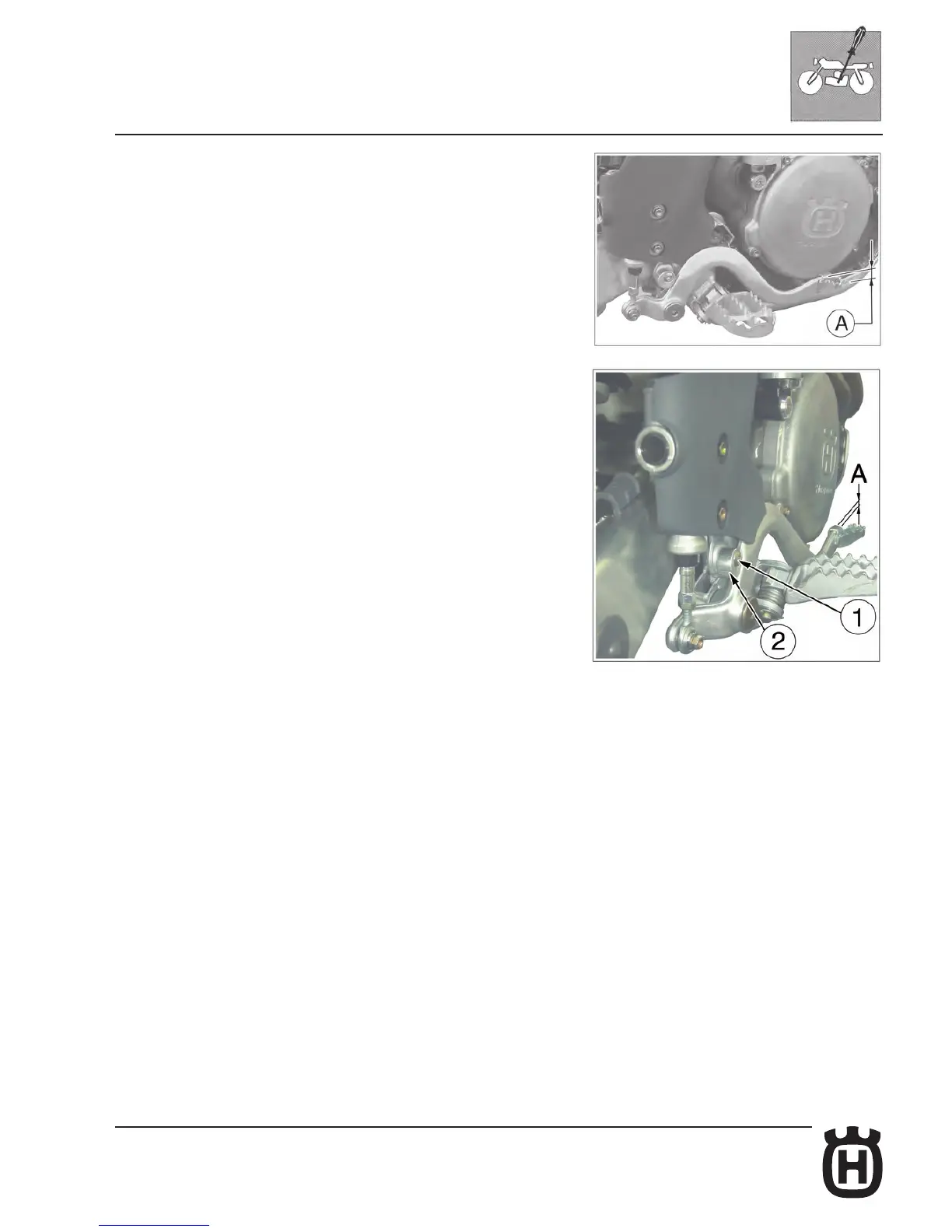

Rear brake pedal position adjustment
The position of the rear foot brake pedal as to the footrest may be adjusted ac-
cording to the individual needs. For the adjusting proceed as follows:
- loosen the screw (1);
- turn the cam (2) in order to adjust the brake pedal idle stroke (A);
- the operation done, tighten the screw (1).
The adjusting operation carried out, adjust the idle stroke of the pedal as shown
on page D.14.
