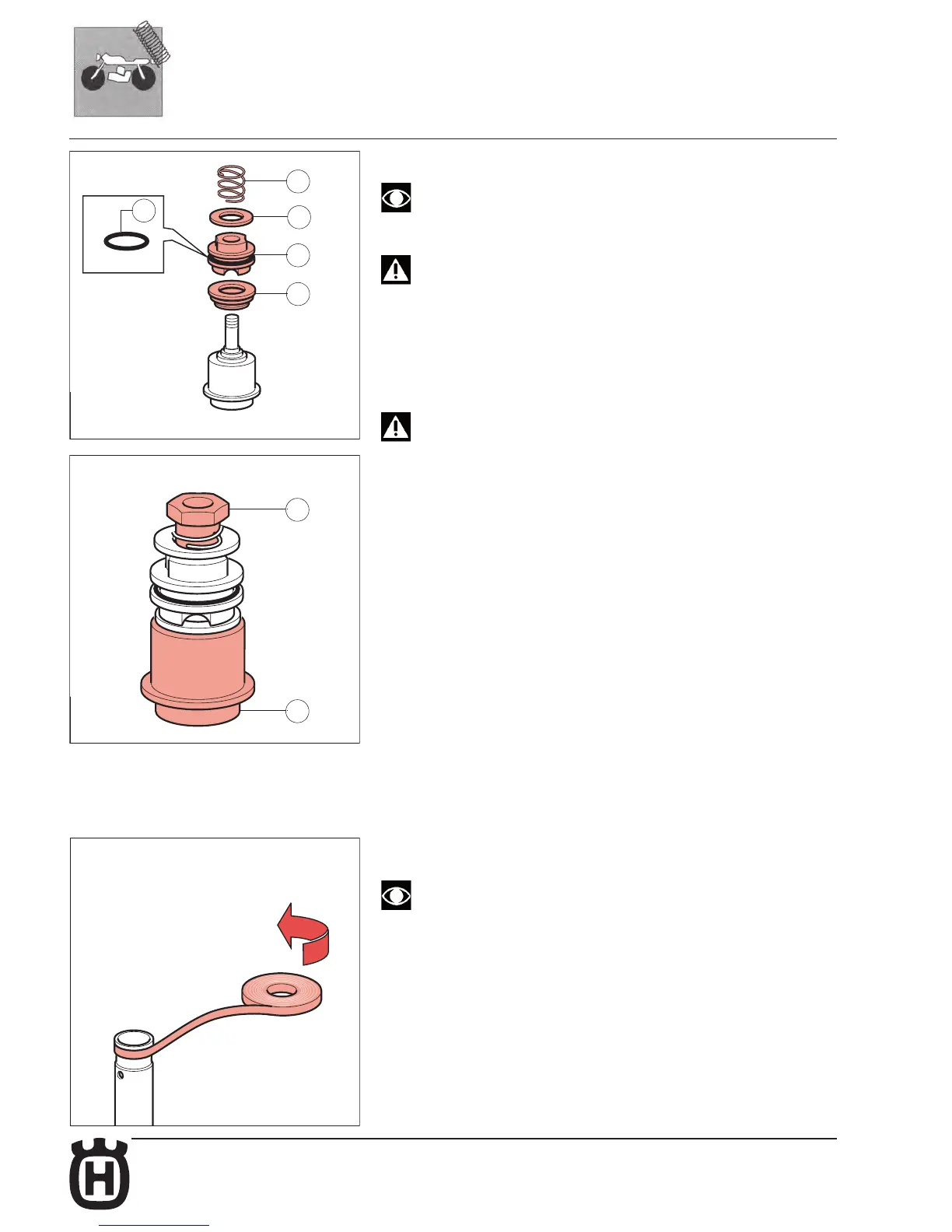

Assembling:
The washers (46) and the piston (45) are the ones causing the compression
braking. It is possible, if needed, to modify the fork’s behaviour during the
compression phase, by replacing the washers (46) and the piston (45)
with other components having different characteristics.
WARNING
Only use original Marzocchi washers and pistons, do not modify the
components.
compression ( 46 ), the piston ( 45 ), complete with the o- ring ( 44 ), the washer
( 43 ) and the spring ( 33 ), following this order.
WARNING
The piston must be oriented in a way that the holes having smaller diameter
are placed towards the setting washers (46).
RE- ASSEMBLING THE FORK LEG – SLIDER AND OIL SEALS
The old oil seals and dust seals must not be used again. Before re- as-
sembling, check the conditions of the guide bushings; replace them if they
which must be in a good condition.
the seat of the top bushing.
