Husqvarna TE 310 - Bottom Valve Overhauling (Compression Braking)

I.17
Part. N. 8000 H1344 (10-2009)
FRONT SUSPENSION
23
83
WARNING
The piston must be oriented in a way that the holes having smaller diameter
are placed towards the setting washers (37).



the nut


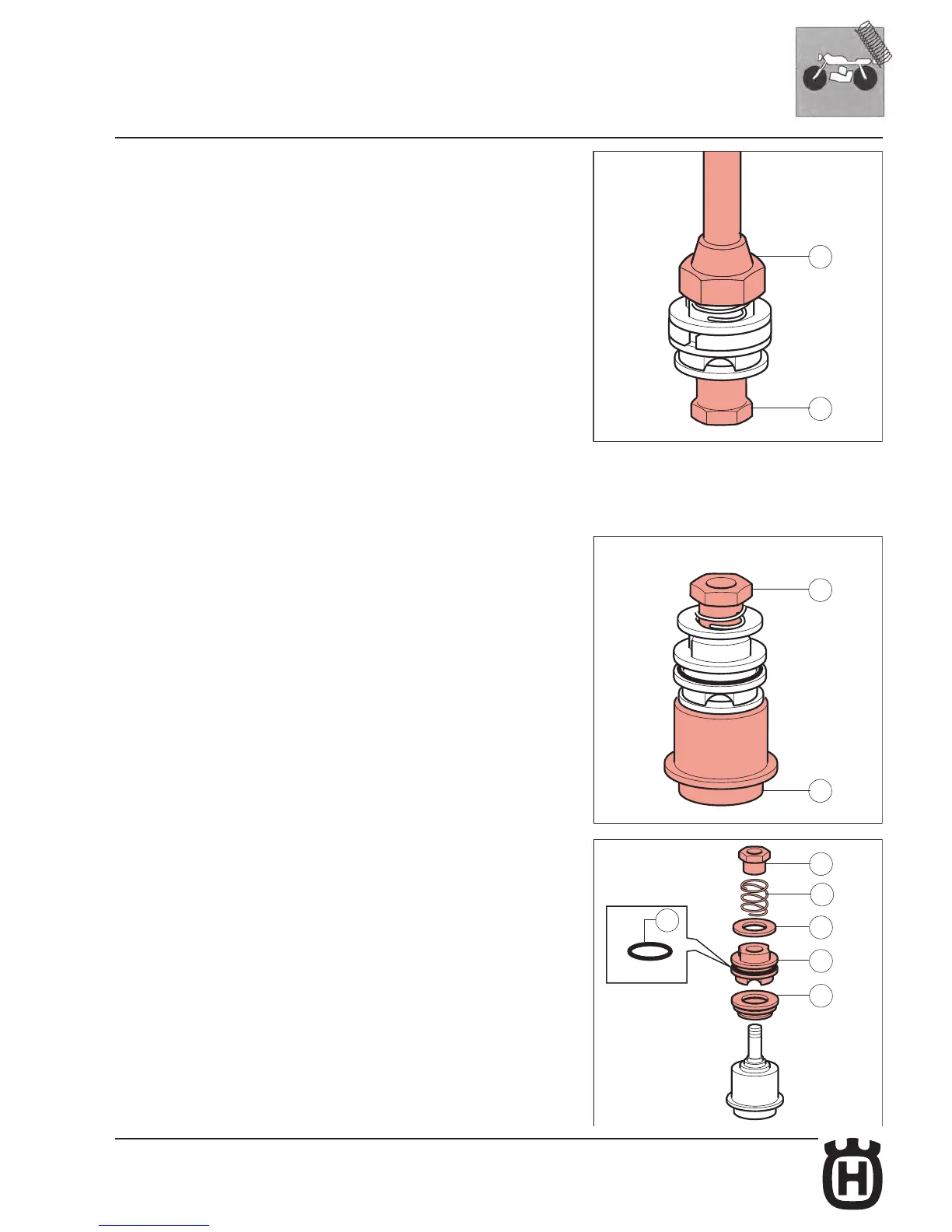

BOTTOM VALVE OVERHAULING (COMPRESSION BRAKING)
Dismantling



complete with the o- ring ( 44 ), the washer or the washers’ stack regulating the
compression ( 46 ), following this order.
